M5 Stainless Steel Self Tapping Screws Grade 4.8 4-100mm Length
304 Stainless Steel Phillips Self-Tapping Screws Of Rounded Head
Details:
Product Other Name: 304 Stainless Steel Phillips Self-Tapping Screws Of Rounded Head
Material: 304 Stainless Steel, Alloy Steel, 316 Steel, 201 Stainless Steel, Aluminum
Size:M2 , M3, M4, M5 , M6, M8 Screw Length: 4 - 100mm
Brand: Customer provide drawing design
Products Description
1. 304 Stainless Steel Phillips Self-Tapping Screws Of Rounded Head have good quality , better perfomance, drawing appreciate, OEM Serice
3. 304 Stainless Steel Phillips Self-Tapping Screws Of Rounded Head usually refer to steel screws that have the ability to resist corrosion from air, water, acid, alkali salt or other media.
4. Thread Forming self-tapping Screws (Thread Forming Tapping Screws) is developed directly by the iron screw, screw Thread Forming self Tapping Screws when using prior drilling, then the screw hole, strong extrusion with female Thread and the original material will be packed in the position of female to male, between this call of Thread Forming self Tapping screw only can be applied to thin and malleable materials and thus developed: Thread Cutting self-tapping Screws (Thread Cutting Tapping Screws) - in the end of thread cutting, cutting out one or more of the can in advance screwing in drilling, using screw tail and teeth in a similar way of tap cutting out together with the female thread it can be used in thick plate, more hard and brittle materials is not easy to shape

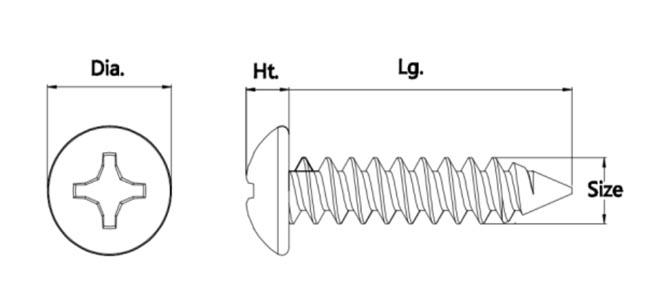

304 Stainless Steel Phillips Self-Tapping Screws Of Rounded Head Parameters and Drawing
| Size | Code | Dia. | Ht. | Lg. |
| M1.7 x 3 | BZX.S080706-M1.7-3 | 3.2 | 1.18 | 3 |
| M1.7 x 4 | BZX.S080706-M1.7-4 | 3.2 | 1.18 | 4 |
| M1.7 x 5 | BZX.S080706-M1.7-5 | 3.2 | 1.18 | 5 |
| M1.7 x 6 | BZX.S080706-M1.7-6 | 3.2 | 1.18 | 6 |
| M1.7 x 8 | BZX.S080706-M1.7-8 | 3.2 | 1.18 | 8 |
| M1.7 x 10 | BZX.S080706-M1.7-10 | 3.2 | 1.18 | 10 |
| M2 x 4 | BZX.S080706-M2-4 | 3.5 | 1.28 | 4 |
| M2 x 5 | BZX.S080706-M2-5 | 3.5 | 1.28 | 5 |
| M2 x 6 | BZX.S080706-M2-6 | 3.5 | 1.28 | 6 |
| M2 x 7 | BZX.S080706-M2-7 | 3.5 | 1.28 | 7 |
| M2 x 8 | BZX.S080706-M2-8 | 3.5 | 1.28 | 8 |
| M2 x 10 | BZX.S080706-M2-10 | 3.5 | 1.28 | 10 |
| M2 x 12 | BZX.S080706-M2-12 | 3.5 | 1.28 | 12 |
| M2 x 16 | BZX.S080706-M2-16 | 3.5 | 1.28 | 16 |
| M3 x 6 | BZX.S080706-M3-8 | 5.1 | 1.7 | 8 |
| M3 x 8 | BZX.S080706-M3-8 | 5.1 | 1.7 | 8 |
| M3 x 10 | BZX.S080706-M3-10 | 5.1 | 1.7 | 10 |
| M3 x 12 | BZX.S080706-M3-12 | 5.1 | 1.7 | 12 |
| M3 x 16 | BZX.S080706-M3-16 | 5.1 | 1.7 | 16 |
| M3 x 20 | BZX.S080706-M3-20 | 5.1 | 1.7 | 20 |
| M3 x 25 | BZX.S080706-M3-25 | 5.1 | 1.7 | 25 |
| M3 x 30 | BZX.S080706-M3-30 | 5.1 | 1.7 | 30 |
| M3 x 35 | BZX.S080706-M3-35 | 5.1 | 1.7 | 35 |
| M3 x 40 | BZX.S080706-M3-40 | 5.1 | 1.7 | 40 |
| M3 x 45 | BZX.S080706-M3-45 | 5.1 | 1.7 | 45 |
| M3 x 50 | BZX.S080706-M3-50 | 5.1 | 1.7 | 50 |
| M5 x 10 | BZX.S080706-M5-10 | 8.9 | 2.9 | 10 |
| M5 x 12 | BZX.S080706-M5-12 | 8.9 | 2.9 | 12 |
| M5 x 16 | BZX.S080706-M5-16 | 8.9 | 2.9 | 16 |
| M5 x 20 | BZX.S080706-M5-20 | 8.9 | 2.9 | 20 |
| M5 x 25 | BZX.S080706-M5-25 | 8.9 | 2.9 | 25 |
| M5 x 30 | BZX.S080706-M5-30 | 8.9 | 2.9 | 30 |
| M5 x 35 | BZX.S080706-M5-35 | 8.9 | 2.9 | 35 |
| M5 x 40 | BZX.S080706-M5-40 | 8.9 | 2.9 | 40 |
| M5 x 45 | BZX.S080706-M5-45 | 8.9 | 2.9 | 45 |
| M5 x 50 | BZX.S080706-M5-50 | 8.9 | 2.9 | 50 |
| M5 x 60 | BZX.S080706-M5-60 | 8.9 | 2.9 | 60 |
| M5 x 70 | BZX.S080706-M5-70 | 8.9 | 2.9 | 70 |
| M5 x 80 | BZX.S080706-M5-80 | 8.9 | 2.9 | 80 |
| M8 x 16 | BZX.S080706-M8-16 | 15.5 | 5.6 | 16 |
| M8 x 20 | BZX.S080706-M8-20 | 15.5 | 5.6 | 20 |
| M8 x 25 | BZX.S080706-M8-25 | 15.5 | 5.6 | 25 |
| M8 x 30 | BZX.S080706-M8-30 | 15.5 | 5.6 | 30 |
| M8 x 35 | BZX.S080706-M8-35 | 15.5 | 5.6 | 35 |
| M8 x 40 | BZX.S080706-M8-40 | 15.5 | 5.6 | 40 |
| M8 x 45 | BZX.S080706-M8-45 | 15.5 | 5.6 | 45 |
| M8 x 50 | BZX.S080706-M8-50 | 15.5 | 5.6 | 50 |
| M8 x 55 | BZX.S080706-M8-55 | 15.5 | 5.6 | 55 |
| M8 x 60 | BZX.S080706-M8-60 | 15.5 | 5.6 | 60 |
| M8 x 70 | BZX.S080706-M8-70 | 15.5 | 5.6 | 70 |
| M8 x 80 | BZX.S080706-M8-80 | 15.5 | 5.6 | 80 |
| M8 x 90 | BZX.S080706-M8-80 | 15.5 | 5.6 | 90 |
| M8 x 100 | BZX.S080706-M8-100 | 15.5 | 5.6 | 100 |
Why Choose us?
1. Our company have more than 15 years experience in the Stainless Steel Screws field.
2. We have Professional experienced engineers, sales and overseas engineers.
3. We have automatically generate machines produce the screws, Bolts, Nuts, Washers and so on .
4. Our high productivity can make sure your quickly delivery time.
5. We have professional quality Checking department, make sure good quality.
