25W LED Track Fixture Luminaires for Commercial Lighting
Product Description:
The LED trunking light system features a unique architectural design that includes an aluminum housing. It is perfect for those who want to make a statement with their lighting choices, as the design is both eye-catching and functional.
The installation process is also made easy with pendent, mounted, and recessed options available. This means that you can install the lighting system in a way that suits your specific needs. Furthermore, the daisy chain connection is seamless, allowing for a faster and more efficient installation process.
The LED trunking light system boasts a variety of lighting beam angles, making it possible to highlight particular areas of a room or create a specific mood. Additionally, the system has both up and down lighting available, adding to the flexibility of the product.
Whether you need a standard length or a customized length, the LED trunking light system has you covered. It is a versatile lighting option that is perfect for those who want a highly functional yet stylish lighting system.
Features:
The product is a lighting solution that can accept variable voltages. Specifically, it is designed to work with 120~277VAC, 120~347VAC, and 220~240VAC. This flexibility allows for the product to be used in a variety of electrical situations.
The product also offers the option for two levels of light efficacy: 125Lm/W or 160 Lm/W. This allows the user to tailor the lighting output to their specific needs. The beam angle is also customizable, with options for 30°, 60°, 90°, and 120° angles.
As for control options, the product offers 0-10V dimming (dual channel), Dali 2, and non-dim options. Additionally, the product features 4 wattage adjustment options and 4 CCT tuning options. Moreover, the product can be ordered with different CRI options, including CRI>80, CRI>90, and CRI>95, further customizing the lighting output.
The product is certified with ETL, DLC, CE, and RoHS certifications. The user can feel confident knowing that the product has been independently verified to meet safety and environmental standards. Furthermore, the product comes with a 5-year warranty, offering additional peace of mind.
American Standard:
| Size | L(IN) | W(IN) | H(IN) |
| TLD-2FT | 23.75 | 1.3 | 2.4 |
| TLD-3FT | 36 | 1.3 | 2.4 |
Specifcation:
| Model No | Dimmable | Input Voltage | CRI | Wattage | LPW | Lumen | Beam Angle |
| N-TLD-2FT-25W-DF | 0-10V 0-10V Dual Channel Dali2 Non-Dimmable |
120-277VAC 120-347VAC 220-240VAC |
>80 >90 >95 |
25W | 160LM/W(Max) | 4000LM(Max) | 120° |
| N-TLD-2FT-25W-[30,60,90] | 25W | 125LM/W(Max) | 3125LM(Max) | 30°,60°,90° |
Applications:

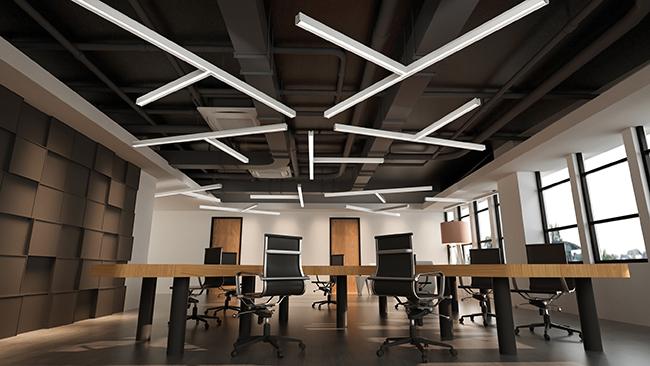

Super market, office, commercial places, hospital, gym, warehouse, workshop, shopping mall
