U Shaped Scissor Lift Table With Ramp Platform 150kg 350kg
Price:
$1100~1399 usd/unit
MOQ:
1 unit
Delivery Time:
15 working days
Brand:
Buytool
Product Description

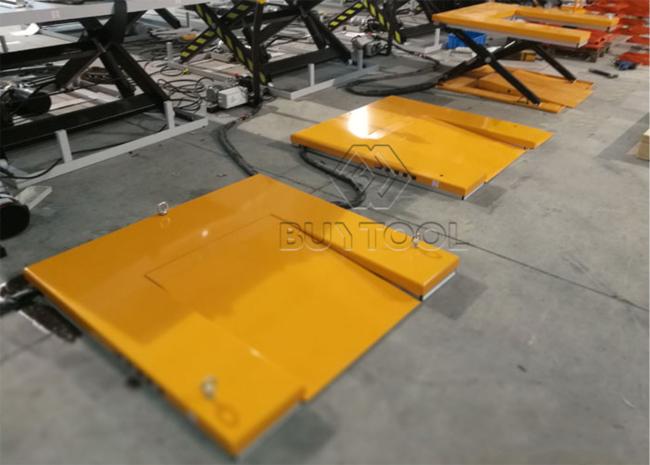

U Shape Platform Electric Low Profile Lift Tables With Ramp
Buytool Brand Low Profile Scissor Lift Tables are equipped with ramp with extremely low self height,easy for trolly enter.Its pump station and electric system are placed in metal box independently to save the minimum lifting height.Loading capacities from 1,000KG to 2,000KG, and lifting heights up to 860mm. We also accept customized platform size,load capacity and lifting height.
| Model | HU600 | HU1000 | HU1500 | |
| Capacity | (Kg) | 600 | 1000 | 1500 |
| Table size (L X W) | (mm) | 1450×985 | 1450×1140 | 1600×1180 |
| Size A | (mm) | 200 | 280 | 300 |
| Size B | (mm) | 1080 | 1080 | 1194 |
| Size C | (mm) | 585 | 580 | 580 |
| Min./Max. height | (mm) | 85/860 | 85/860 | 105/860 |
| Base size (L X W) | (mm) | 1335×947 | 1335×947 | 1335×947 |
| Lifting time | (s) | 25-35 | 25-35 | 30-40 |
| Voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz | |
| Net weight | (Kg) | 207 | 280 | 380 |
FAQ:
What the mainly currency Buytool can accept?
Prices are quoted mostly in US dollars or EURO. All prices are subject to change without notice.
Can you introduce the shipment of Buytool?
Shipping charges for all Buytool orders are calculated based on the shipping method of the order, the weight or volume of the items on the order, and the destination.We normally can do FOB/CIF/DAP/DDP/DDU terms and also we can send the goods via express or AIR according customer’s requirements. All wooden packages can be fumigated at our side and we will provide the official certification if your Customers need.
CIF TERM: Buytool will arrange the shipping company and will be in charge to assure the goods shipped to destination port. You will not need to pay the shipping company upon delivery to destination port.
FOB TERM: If you would like your preferred shipping company to pick up your order, simply let us know when you place your order. You will be responsible for paying your shipping company sea freight charges besides your order. Buytool only in charge of sending the goods to loading port as agree on order.
What about the delivery time?
Most of items can be shipped out within 30days, some items need a little bit longer time to prepare, we will explain these to you if this situation happens.
What’s the payment term of Buytool?
Buytool accepts L/C at sight or T/T, anyway we prefer T/T mainly because it will save money for both parties, Your first order with Buytool must be prepaid with T/T, after first time, we accept the payment as we ship out goods, then fax the copy of documents to you, you balance the rest payment ,and we will express the original documents to you after we get the money. Any other info please contact us for detail.
