PL10X22mm 5X 10X 20X 50X Optical Metallurgical Microscope Travelling Scale
Tool Maker Measuring Travelling Microscope

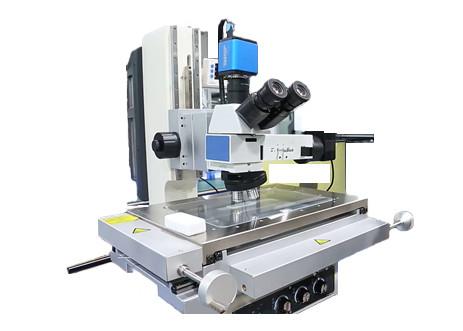

M10107 Tool Maker Measuring Travelling Microscope This product has an excellent performance in the industrial area. Video Measuring Microscope is an integrated high-magnification, micron-industry-aimed measuring instruments. Combined with powerful microscopic inspection technology, it has been widely applied in many fields.
Features:
- For angle measurement such as dials, templates, gauges, drilling template and those parts with complex structure.
- It will turn into a vision measuring system, achieving professional measurement data management with PC and powerful metrology software.
- Used as observational microscope to inspect the surface finish of work-piece by comparative law, identify ore samples in metallurgical industry, photomechanical print test, inspection of textile fibers and so on.
- To measure length in Cartesian coordinates. For example, measuring pitch, the base surface distance, engraved line distance, engraved line width, slot width, slit width, the outer diameter of the through-hole and so on.
| Item | Description / Value |
| Head: | Trinocular |
| Optical System: | Infinity chromatic aberration correction optical system |
| Measuring Range: | X-axis: 300mm minimum, Y-axis: 200mm minimum, Z-axis: 200 mm minimum |
| Minimum resolution: | 0.5/0.1μm |
| Optical Part: | Professional differential interference optical head |
| Multilayer coating technology ensures clarity | |
| Light path and high power objective lens observation | |
| It is equipped with LED surface light and bottom light. | |
| Transmission System: | Precision Grinding of C3 ball screw |
| Camera: | DS-Vil Color Camera Head 2 million pixel HD CCD |
| Objective lens: | M Plan Apo HL 5X, 10X, 20X, 50X |
| Stage: | 300x200mm Precise Stage |
