110mm 160mm HDPE Double Wall Corrugated Pipes Perforated Tubes In Rolls Black

Price Negotiable
Price: 0.5$/m(1~10m);0.43$/m(>1000m)
MOQ: 10 Meter/Meters
Delivery Time: Negotiable
Brand: HAIYANG
Product Description

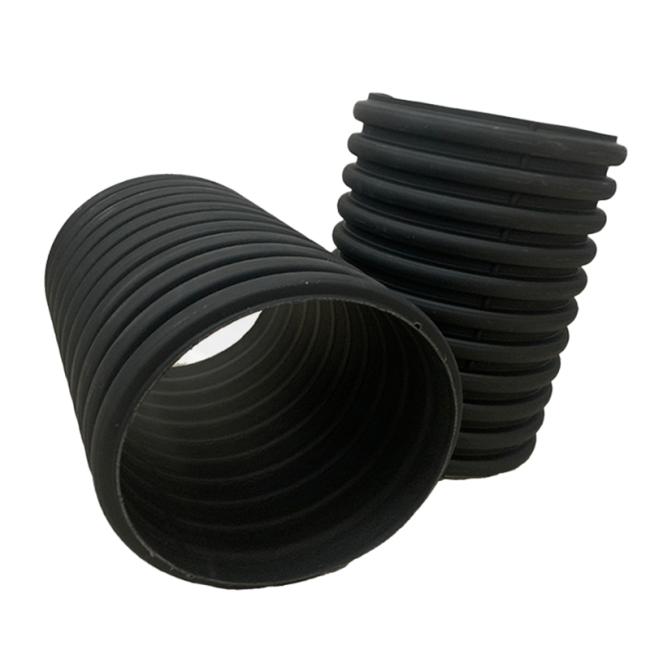

HDPE Double Wall Corrugated Pipes 110mm 160mm Perforated Tubes In Rolls Or Pieces Black Color

----------------------------------------



Basic Info.



HDPE drainage pipes are based on high-density polyethylene resin and are collectively referred to as thermoplastic round pipes without internal pressure, which are made by extrusion molding process. HDPE drainage pipe is a replacement product of traditional steel pipes and PVC drainage pipes. It mainly undertakes drainage tasks such as rainwater, sewage, irrigation and drainage of farmland, etc.



Size   PN2.0MPa PN1.6MPa PN1.25MPa PN1.0MPa PN0.8MPa PN0.6MPa
    SDR 9 SDR 11 SDR 13.6 SDR 17 SDR 21 SDR 26
OD(inch) OD(mm) thickness thickness thickness thickness thickness thickness
1/2 20 2.3 2.3
3/4 25 3 2.3 2.3
1 32 3.6 3 2.4
1 1/4 40 4.5 3.7 3 2.4
1 1/2 50 5.6 4.6 3.7 3
2 63 7.1 5.8 4.7 3.8
2.5 75 8.4 6.8 5.6 4.5
3 90 10.1 8.2 6.7 5.4 4.3
4 110 12.3 10 8.1 6.6 5.3 4.2
5 125 14 11.4 9.2 7.4 6 4.8
5 140 15.7 12.7 10.3 8.3 6.7 5.4
6 160 17.9 14.6 11.8 9.5 7.7 6.2
7 180 20.1 16.4 13.3 10.7 8.6 6.9
8 200 22.4 18.2 14.7 11.9 9.6 7.7
8 225 25.2 20.5 16.6 13.4 10.8 8.6
10 250 27.9 22.7 18.4 14.8 11.9 9.6
11 280 31.3 25.4 20.6 16.6 13.4 10.7
12 315 35.2 28.6 23.2 18.7 15 12.1
14 355 39.7 32.2 26.1 21.1 16.9 13.6
16 400 44.7 36.3 29.4 23.7 19.1 15.3
18 450 50.3 40.9 33.1 26.7 21.5 17.2
20 500 55.8 45.4 36.8 29.7 23.9 19.1
22 560 62.5 50.8 41.2 33.2 26.7 21.4
24 630 70.3 57.2 46.3 37.4 30 24.1
28 710 79.3 64.5 52.2 42.1 33.9 27.2
32 800 89.3 72.6 58.8 47.4 38.1 30.6
36 900   81.8 66.2 53.3 42.9 34.4
40 1000   90.2 72.5 59.3 47.7 38.2
48 1200     88.2 67.9 57.2 45.9
55 1400     102.9 82.4 66.7 53.5
60 1500     110.2 88.2 71.4 57.6
65 1600     117.6 94.1 76.2 61.2





Advantage



High-density polyethylene has the characteristics of rigidity, hardness and high mechanical strength. It can be used as containers, pipes, and high-frequency electrical insulating materials for radar and television. It is insoluble in water and has very little water absorption. Even for some chemical solvents, such as toluene, acetic acid, etc., it only slightly dissolves at a temperature above 70°C. However, particulate polyethylene can melt or solidify with temperature changes between 15°C and 40°C. When the temperature rises, it melts and absorbs heat; when the temperature decreases, it solidifies and releases heat. And because it absorbs very little water and has insulation properties, it is a very good building material.



Details






Application



1,Road engineering: used as the seepage and drainage pipe of railroad and highway.
2,Construction engineering: used as building rainwater pipes, underground drainage pipes, sewage pipes, ventilation pipes.
3,Railway and highway communication equipment: used as the protection pipe of communication cable and optical fiber cable.
4,Industrial: Widely used as sewage pipes in chemical, hospital, environmental protection and other industries.
5,Agricultural garden engineering: used for farmland, fruit and tea garden, and forest belt drainage pipe.





Certificate



Company Profile



High Mountain Pipe is a production enterprise focusing on core technology of pipelines.

The company introduced advanced production equipment and manufacturing technology, and successively developed grooved (HDPE) high-density polyethylene mute, HDPE grooved mute pipe, HDPE grooved drainage pipe compression drainage system and high-density polyethylene siphon drainage system. Series products.











FAQ



Q: Why choose us?
A: We are a professional manufacturer with competitive price, excellent quality and fast delivery time.



Q: Is it possible to use the label or packaging I specified?
A: Yes. If necessary, we would like to use labels or packaging according to your requirements.



Q: How do you guarantee that the products you provide are qualified?
A: We always believe that integrity and responsibility are the foundation of a company, so any products we provide you are qualified. We will test the goods and provide COA before delivery.
