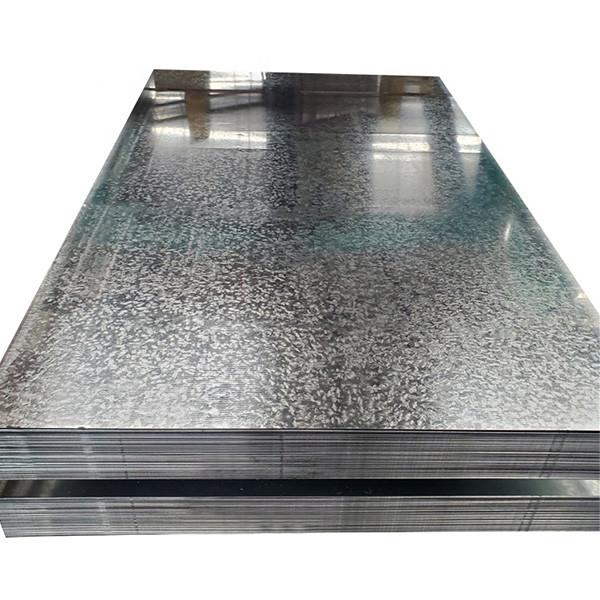

1220 Prepainted Galvanized Steel Sheet Metal 1000mm 1219mm Wdth
Good quality galvanized steel sheet grades 1220 gi galvanized steel rolls and sheets
Hot galvanized sheet in which a sheet of steel is dipped into a molten zinc bath so that a layer of zinc is adhered to its surface. The main use of continuous galvanizing process production, that is, into a roll of steel plate continuous dip in the melting of zinc plating tank made of galvanized steel plate; Alloyed galvanized steel sheet. This steel plate is also made by hot dip, but immediately after the trough, it is heated to about 500℃, so that it generates an alloy film of zinc and iron. This galvanized sheet has good coating adhesion and weldability.
Hot galvanized sheet is mainly used in construction, household appliances, automobiles, machinery, electronics, light industry and other industries.
The common steel types of hot galvanized sheet are: general commodity coil (CQ), structural galvanized sheet (HSLA), stamping galvanized sheet (DQ) deep drawing hot galvanized sheet (DDQ), baking hardening hot galvanized sheet (BH), dual phase steel (DP), TRIP steel (phase change induced plastic steel) and so on.
Galvanized annealing furnace has three kinds: vertical annealing furnace, horizontal annealing furnace and vertical horizontal annealing furnace.
Usually there are two cooling methods of hot galvanized sheet cooling tower: air cooling and water cooling.
| Name | Thickness | Width | Length |
| Thin plate | 0.2mm-4mm | 1000mm 1219mm 1500mm 1800 mm 2000mm | 2000mm 2438mm 3000mm 6000mm |
| Medium plate | 4mm-20mm |
1000mm 1219mm 1500mm 1800 mm 2000mm
|
2000mm 2438mm 3000mm 6000mm
|
| thick plate | 20mm-115mm |
1000mm 1219mm 1500mm 1800 mm 2000mm
|
2000mm 2438mm 3000mm 6000mm
|
| If the customer's demand is large, we can cut it according to the customer's size Another can do wire drawing plate, anti - slide plate, electroplating plate. | |||
Surface Structure
Normal spangle
Through addition of certain heavy metal element into molten zinc bath, regular spangle pattern is produced on Hot-dip zinc-coated steel sheet.
Minimized spangle
Spangle-free
Production Process of Galvanized Steel Coil
Galvanized steel coil is to immerse a thin steel plate in molten zinc, so that a layer of zinc is attached to the surface. It is
an effective anti-corrosion method and can provide a long service life of metal materials.
Our Services & Strength
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances
occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
