High Pressure 220V Oxygen Air Compressor Industrial Medical For Cylinder Filling

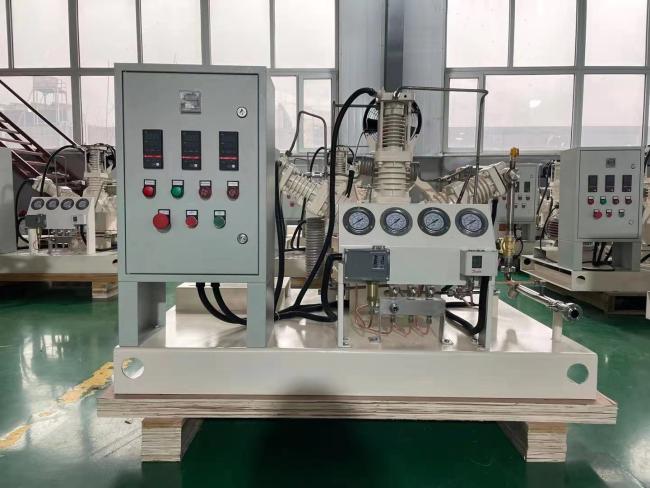

High Pressure Industrial and Medical Oxygen Air Compressor for Cylinder Filling
Oil-free piston oxygen compressor is the preferred choice when contamination-free, leak-tight oxygen compression is required. Cape-Golden oxygen compressor is designed to afford you high quality, high reliability, low maintenance and extended service intervals.
Based upon our extensive experience in compressor technology, and our state-of-the-art engineering and manufacturing capabilities, we work with our customers to provide the optimum solution to satisfy their oxygen gas compression needs.
We- Cape Golden can provide both standard and custom designed oxygen compressors with a comprehensive assortment of options. We furnish a wide range of equipment from basic units to turnkey, skid-mounted and computer controlled systems.
Our oxygen compressors range in size from 3 hp to 200 hp (3 to 150 Kw), discharge pressures vary from 50 psig to 3000 psig (3 barg to 300 barg).
Oxygen compressor typical applications include but are not limited to:
- Filling & off-loading oxygen gas from tube trailers
- Cylinder filling compressor with oxygen gas & bulk storage tanks
- Blending, recycling & mixing of oxygen gas
- Oxygen gas for cutting & welding of metals
- Oxygen feedstock for chemical, petrochemical & pharmaceutical industries
- Oxygen gas for glass manufacturing and pulp paper industries
- Oxygen gas for refining of metals & oxidation process in the chemical industry
- High pressure compression boosting & storage of oxygen gas
- Oxygen for the diving and medical health care services
| Model | Working medium | suction pressure (Mpa,Psig) | Discharge pressure (Mpa,Psig) | Motor.KW | Flow rate Nm3/hr | Voltage | Cooling way | weight |
dimension mm |
|
| GOW-15/4-150 | oxygen | 0.3-0.4,40-60 | 15,2150 | 11 | 15 | 220V/380V/415V/440V 50/60HZ | water cooling | 780 | 1500×950×1500 | |
| GOW-16/4-150 | oxygen | 0.3-0.4,40-60 | 15,2150 | 11 | 16 | 220V/380V/415V/440V 50/60HZ | water cooling | 780 | 1500×950×1500 | |
| GOW-20/4-150 | oxygen | 0.3-0.4,40-60 | 15,2150 | 11 | 20 | 220V/380V/415V/440V 50/60HZ | water cooling | 780 | 1500×950×1500 | |
| GOW-25/4-150 | oxygen | 0.3-0.4,40-60 | 15,2150 | 11 | 25 | 220V/380V/415V/440V 50/60HZ | water cooling | 960 | 1500×950×1500 | |
| GOW-30/4-150 | oxygen | 0.3-0.4,40-60 | 15,2150 | 11 | 30 | 220V/380V/415V/440V 50/60HZ | water cooling | 960 | 1500×950×1500 | |
| GOW-35/4-150 | oxygen | 0.3-0.4,40-60 | 15,2150 | 11 | 35 | 220V/380V/415V/440V 50/60HZ | water cooling | 960 | 1500×950×1500 | |
| GOW-40/4-150 | oxygen | 0.3-0.4,40-60 | 15,2150 | 15 | 40 | 220V/380V/415V/440V 50/60HZ | water cooling | 1000 | 1500×950×1500 | |
| GOW-42/3-150 | oxygen | 0.3-0.4,40-60 | 15,2150 | 15 | 42 | 220V/380V/415V/440V 50/60HZ | water cooling | 1000 | 1500×950×1500 | |
| GOW-50/4-150 | oxygen | 0.3-0.4,40-60 | 15,2150 | 15 | 50 | 220V/380V/415V/440V 50/60HZ | water cooling | 1000 | 1500×950×1500 | |
| GOW-50/2-150 | oxygen | 0.3-0.4,40-60 | 15,2150 | 18.5 | 50 | 220V/380V/415V/440V 50/60HZ | water cooling | 1050 | 1500×950×1500 | |
| GOW-56/3-150 | oxygen | 0.3-0.4,40-60 | 15,2150 | 18.5 | 56 | 220V/380V/415V/440V 50/60HZ | water cooling | 1050 | 1500×950×1500 | |
| GOW-60/4-150 | oxygen | 0.3-0.4,40-60 | 15,2150 | 18.5 | 60 | 220V/380V/415V/440V 50/60HZ | water cooling | 1050 | 1500×950×1500 | |
