Courtyard Dual Swing Gate Opener 1.6cm/S Stainless Steel
24v Dc Dual 1000kg Dual Swing Gate Openers For Residential And Farm Gates
GATECH has a complete line of GPK05 Swing Gates motor automation systems with wings up to 5 meters long. Gatech has a new range of electric actuators for swing doors in residential, apartment and industrial applications. They are designed and developed to ensure quality and strength while simplifying installation and maintenance.
1000kg Automatic Swing gate openers Technical Specifiation
| Output power of motor | 12VDC/24VDC 60W |
| Rotational speed | 1500R PM |
| Rod's running speed | 1.6cm/s |
| Rod's max travel | 500mm |
| Max leaf length | 5mX2 |
| Max single-leaf weight | 500Kg |
| Environment Temperature range | -20C~+55C |
| Protection class | IP54 |
| Continual run time | 5min |
Auto-off function for up to 99 seconds
The actuator arm is maintenance-free
Soft Stops and Self-Teaching
Maximum gate length 5mtrs
2x Remotes transmitter with 50m long range
1x Long Range Reflector type Safety Beam
Controller box specification for swing gate operators
| Power supply | ~220V(土10%)/50HZ |
| Transformer | ~110V/24VI16V120W |
| Accessories max loaded | 24VDC 500mA |
| Environment temperature | -20C ~+50" |
| 24V Protection fuse | 10A |
| 16V Protection fuse | 10A |
| Auto closing time delay | programmable(0~ 99s) |

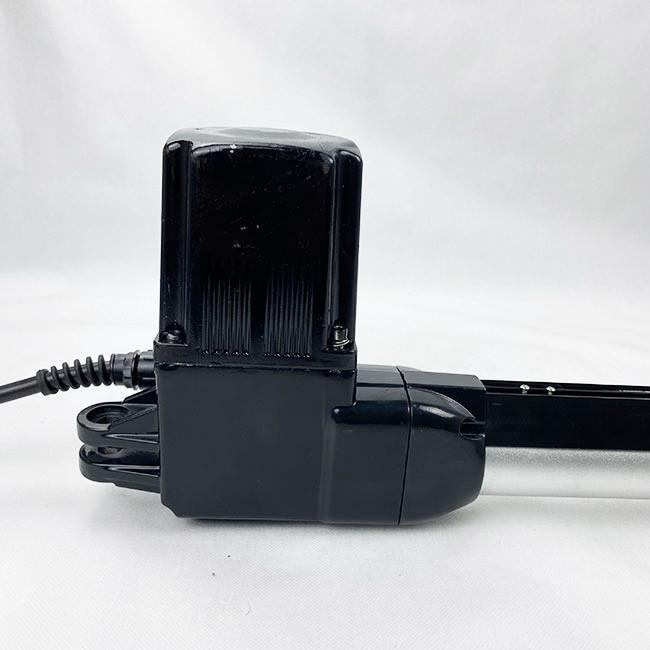

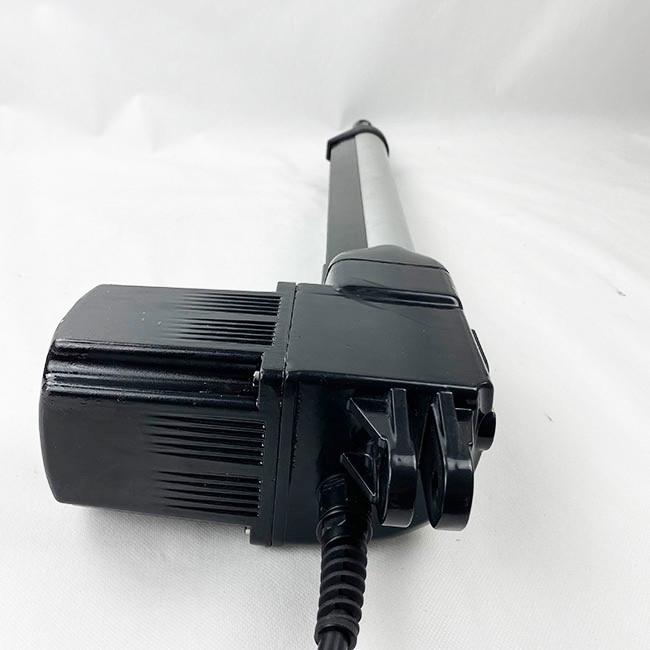

Details for swing gate motors
