Copper Single 600kg AC Roller Shutter Motor 220v Industrial Roller Door Motors
Ac 220v Single 600kg AC Roller Shutter Motors Home Use
Gatech roller shutter motor has been continuously exported for over ten years and is our best selling product, it uses the most advanced production technology and the latest technique available to provide reliability with multiple functions. This rolling shutter motors is easy to be installed and has proven to be a reliable accessory in a variety of applications. Such as buildings, garages, shopping malls, factories, warehouses, docks, airports, etc.
Gatech rolling door motor has its excellent quality.
1. 100% copper material inside of this motor.
2. Transmission mechanism has reasonable design, advanced technology, and specially developed grease, gear not easy wear, durable, low noise, small shaking.
3. Protective measures : Placed inside the motor overheat protector, overheating protection function.
4. Low-voltage and high-DC powermoter, low consumption;
5. Easy manual operation when power failure and it could also be equipped with electrical storage devices;
6. Limit switch unit enables precise adjustment of doors in up and down positions;
7. With convenient , stable function of remote control ,long distance remote operation is available;
| Model |
Rated output torque (N.m) |
Rated output speed (r/min) |
Motor power (w) |
Rated voltage (V/Hz) |
Rated current (A) |
Continuos working time(min) |
Durm dube outer diameter (mm) |
Max lifting force (kg.f) |
Max lifting height (m) |
| AC300-1P | 225 | 5.4 | 200 | 220/50 | 2.8 | 8 | 114 | 300 | 6 |
| AC600-1P | 412 | 5.4 | 300 | 220/50 | 3.3 | 8 | 140 | 600 | 6 |
| AC800-1P | 647 | 4 | 400 | 220/50 | 4.7 | 8 | 165 | 800 | 8 |
| AC1000-1P | 809 | 4 | 400 | 220/50 | 4.9 | 8 | 165 | 1000 | 8 |
| AC1500-1P | 809 | 3.5 | 700 | 220/50 | 8.2 | 8 | 165 | 1500 | 9 |

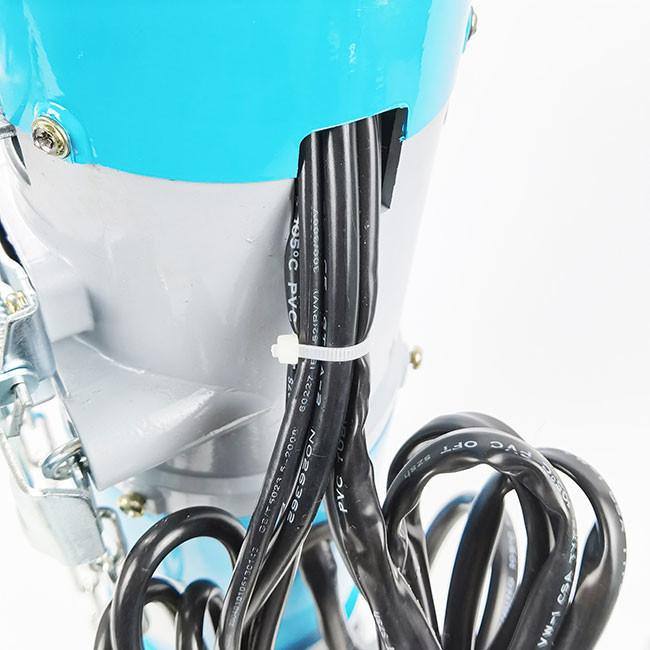

Details for Rolling shutter motors
FAQ
What is your MOQ?
One unit is available,but it is sample cost. For large quantity,Please negotiable with us.
What is your payment term?
For sample ,T/T in advance.For customize order,35% T/T in advance,balance before shipping.
How long is your product warranty?
Two years when you got goods.
What is the delivery time?
For item in stock, it will take 2-3days to seaport after payment.
