Short Circuit Protection High Current Automotive Fuses AC250V DC150V 400A

Price Negotiable

Price: Negotiable

MOQ: 100pcs

Delivery Time: 5-8 days

Brand: Dissmann

Product Description

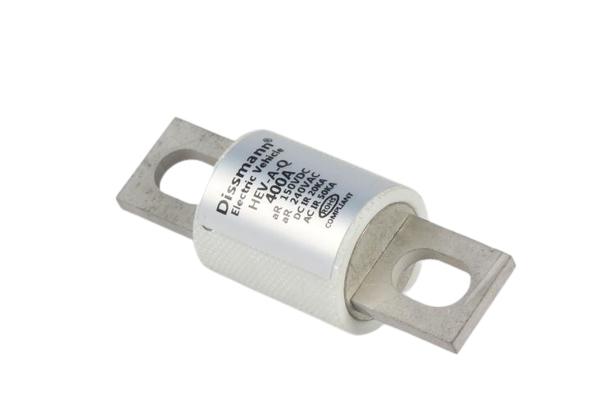

Dissmann^®High Breaking Capacity Automotive fuse AC250V DC150V 400A High Current Car Fuse Made in China

HEV-A-Q-400 Rated current 400A,rated voltage:DC150V AC250V,high breaking capacity is DC20KA

HEV-A-Q Series Automotive fuses are designed to protect high-voltage accessory circuits in electric and hybrid electric vehicles. Offers rated current 5A - 800A, rated voltage AC250V/DC150V.The latest HEV fuses have been tested to automotive quality standards for environmental reliability, transient current cycling, and device electrical and fusing characteristics. They are RoHS compliant and halogen free, and certified UL248-20,ISO8820,JAS0-D622.

Product introduction of the Automotive fuse

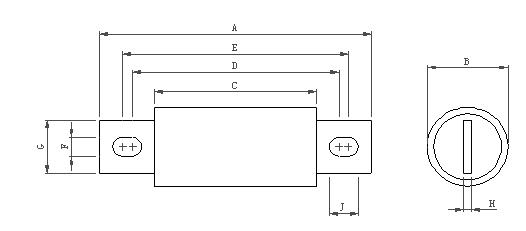

1.Shape and mounting dimensions of the automotive fuses:

Size code	A±2	B±1.5	C±1	D±1.5	E±1.5	F±1	G±0.5	H±0.2	J±1
HW1	68.2	25	29	44	53	9	18	3.3	13.5
HW2	94	38	38	54	74.5	10.5	25	6	20.7

Pls Notice that: Under the same rated voltage, the fuse size is determined by the rated current. The larger the rated current is, the larger the fuse size is.

2.Model classification according to automotive fuses rated current:

Model	Rated Current A	I²t(A²s)		Power dissipation W	Size code	Install
Model	Rated Current A	弧前	总	Power dissipation W	Size code	Install
HEV-A-Q-70	70A	460	3920	6.8	HW1	Mounting Bolt M8 recommended torque 11N·m
HEV-A-Q-80	80A	665	5850	7.5
HEV-A-Q-100	100A	1120	11100	8.8
HEV-A-Q-125	125A	1840	17600	11.0
HEV-A-Q-150	150A	2650	25400	12.8
HEV-A-Q-200	200A	4750	44000	17.5
HEV-A-Q-250	250A	7420	68500	22.5
HEV-A-Q-300	300A	11000	99000	26.5
HEV-A-Q-350	350A	14800	139000	30.4
HEV-A-Q-400	400A	18800	180000	34.8
HEV-A-Q-500	500A	36000	110000	34.5	HW2	Mounting Bolt M10 recommended torque 20N·m
HEV-A-Q-600	600A	43500	125000	45.6
HEV-A-Q-700	700A	68000	198000	48.5
HEV-A-Q-800	800A	86000	255000	57.0
HEV-A-Q-1000	1000A	152000	470000	59.5

Warm tips:You can choose the exact automotive fuse for your project based on the model, so you will get the quotation within 24Hours. If your project requires customized HEV fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within three working days.
