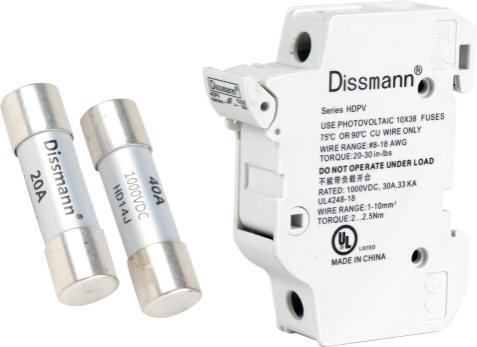

Ceramic Energy Storage System Fuse , 10x38 PV Solar Fuse With Holder
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
5-8 days
Brand:
Dissmann
Product Description
Dissmann® 1000VDC PV Solar Fuse for Power Bank & Energy Storage System
Specifications of the 10 x 38 1000VDC Energy Storage System Fuse:
1.Presentation of 10 x 38 Energy Storage System Fuse:
|
Rated Voltag
|
80VDC-1000VDC
|
Characteristic
|
aR
|
Rated Current
|
1A-100A
|
Breaking Capacity
|
|
Meet the Requirement
|
UL248, IEC60127,RoHS
|
Remarks
|
UL,TUV
|
2.Dimensions of the 10 x 38 Energy Storage System Fuse(mm):
3.Characteristic of the 10 x 38 Energy Storage System Fuse Socket:
| Product model | HDPV |
| Size | 10x38 |
| Rated current | 30A |
| Rated voltage | 1000VDC |
| Breaking current | 33KA |
| Terminal fastening moment |
1.7N·m (14.75IN·LBS) |
| Copper junction conductor cross-sectional area |
2～10mm2 (14～6AWG) |
| Assembly | Material quality |
| Monoblock | PBT plastics PBT |
| Terminal |
Copper alloy plating high temperature tin |
4.Single Product Model of the 10 x 38 Energy Storage System Fuse:
| Model |
Rated current A |
Rated voltage V |
Breaking capacity |
| HD10PV | 1A～40A | 1000Vac | 1.5KA |
| 1A～20A | 1000Vdc | 33KA | |
| 1A～40A | 1000Vdc | 1.5KA | |
| HD10P | 1A～20A | 750Vac/dc | 33KA |
| HD10P | 1A～40A | 750Vdc | 1.5KA |
| HD10V | 1A～50A | 700Vdc | 6KA |
| HD10DX | 1A～20A | 500Vac/dc | 33KA |
| HD10X | 1A～20A | 500Vac | 33KA |
| 30A～100A | 500Vac | 1.5KA | |
| HD10D | 1A～20A | 500Vdc | 33KA |
| HD10D | 1A～50A | 500Vdc | 6KA |
| HD10MN | 1A～20A | 690Vac/dc | 33KA |
| HD10N | 1A～20A | 690Vac | |
| HD10M | 1A～20A | 690Vdc | |
| HD10G | 1A～20A | 600Vdc | 6KA |
| HD10H | 1A～20A | 600Vac | |
| HD10C | 30A～100A | 400Vdc | 1.5KA |
| HD10F | 1A～20A | 400Vac | 6KA |
| HD10A | 1A～20A | 250Vac | |
| HD10L | 60A | 80VDC |
How to choose a right model of the energy storage fuse:
You can choose the right square ceramic pv solar fuse for your project based on the rated current, send us the product code to get a quick quotation. If your project requires customized fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within 48 hours.

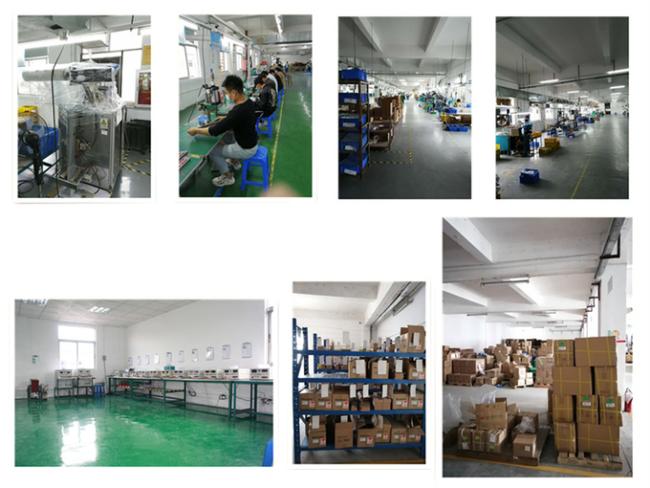

Advantage of our factory as the energy storage fuse Supplier:
1.Focus on the production and development of fuse products for 20 years:
Shenzhen Deer Electronic(Dissmann Fuse) is National High-Tech company was founded in 2000 by Senior Engineers Team. The Engineers were responsible for products’ R&D in famous companies, reorganized and founded Shenzhen Deer in 2005. Focused on R&D and production Current limiting Fuses. Now we’ve got 4 Patents of Invention of China and 12 Patents for Utility Model.
2.Our fuse products certified UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.
Welcome you to get more information of the energy storage system fuse,We will provide you with fast and efficient services and high-quality fuse products.
