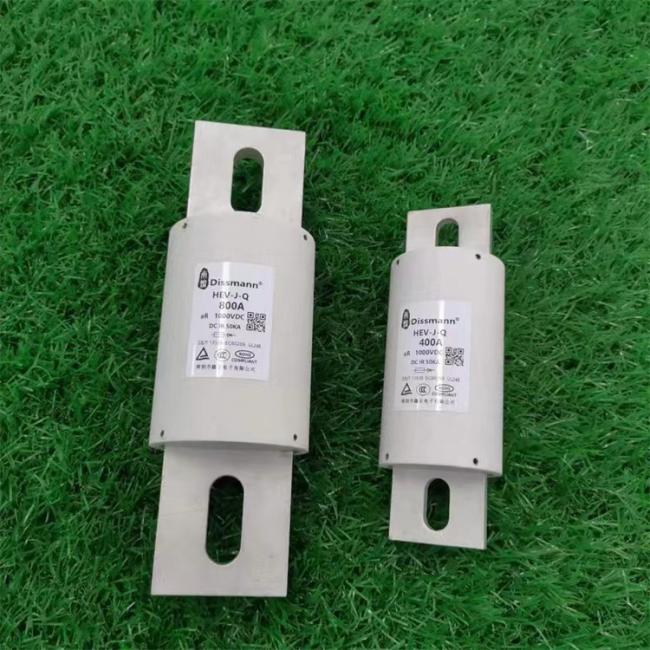

HEV Battery Protection Fuse , Two Wheeler Protection High Breaking Capacity Fuse

Price Negotiable

Price: Negotiable

MOQ: 100pcs

Delivery Time: 5-8days

Brand: Dissmann

Product Description

HEV fuse mainly use for protect EV charger battery

Feature&Benefits of the HEV fuse

Current rating:5A~800A

Voltage rating:AC/DC1000V or lower

Interrupting rating:AC100KA/DC30KA at 1000VDC/AC

Time constant:≤15ms

Approvals:UL248-20,ISO8820,JASO-D622,TUV

Environmental:RoHS compliant

Country of origin:China

Feature data of the 300 amp fuse

Model

Rated Current(A)

100% voltage drop (mv)

Size code

Installation

HEV-J-Q-300

300

298

HF3

Mounting Bolt M10,

Recommend

Torque: 21N.m

Application

It is suitable for short-circuit and backup protection of semiconductor devices such as frequency converters, rectifiers, inverters, various power supplies, as well as power batteries, motors, capacitors, wires and other equipment and devices. This product has good anti-vibration and flame-retardant properties, and is suitable for applications in vibration environments such as rail transit and motor vehicles.Short circuit protection fuses especially for pure electric vehicles and hybrid electric vehicles,specially designed for pure electric vehicle and hybrid vehicle power battery,Provide fuse bases specially customized for harsh automotive environments.

Dimension of EV fuse in milimeter

Size code	A±2	B±1.5	C±1	D±1.5	E±1.5	F±1	G±0.5	H±0.2	J±1
HF1	124	25	78	100	109	9	18	4	13.5
HF2	117	33	78	93	100	9	22	5	12.5
HF3	139.5	38	83.5	99.5	120	10.5	25	6	20.7
HF4	146.5	50	89.5	106	126.5	10.5	38	6	20.7
HF5	197.5	63	89.5	123.5	162.5	13.5	50	10	33
