ANS Nylon Automotive Fuse Holder Stable Low Voltage Fuse Base
Any datasheet&specification,pls feel free to contact by email:holly@delfuse.com or whatsapp me:+8618813915908
ANS nylon material fuse bade with battery fuse
Scope of the ANS fuse base
150VDC 500A and below DC current and voltage
The rated current and voltage of this product is 150VDC 500A. It is used in circuits,whose actual working value is lower than or equal to 150VDC 500A. If it is used in a working environment higher than the rated 150VDC 500A value of this product,it will cause serious adverse consequences,The company does not accept responsibility.

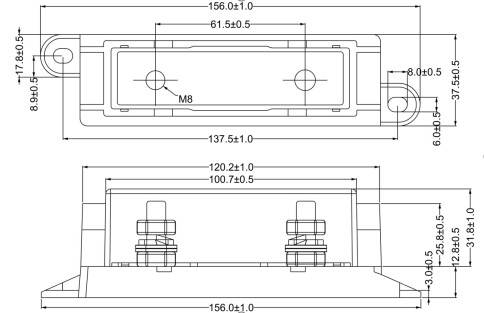

Dimension of the ANS fuse base
Eectronic performances
5.1 Insulation resistance
DC 500V 100MΩ Min
5.2 Voltage breakdown
AC 2500V 1 minute
Manufacturing material
| Part name | Material |
| screw bolt | Class 8.8, nickel or gold plated |
| Main body | Nylon PA66, PC |
