Energy Storage Car Fuse With Indicator Light 250A Rating Current Fiber Pipe
low current fuse Automotive with indicator fuse energy storage fuse
Material:
Noumenon: fiber pipe
Pins: Alloy
Product Presentation:
|
Rated Voltage 额定电压 |
DC750V,AC690V 或低于 |
Type Protection 保护类别 |
aR |
| Rated Current 额定电流 | 250A-500A |
Breaking Capacity 分断能力 |
DC10KA (时间常数≤10ms) |
|
Meet the Requirement 符合要求 |
UL248-20,ISO8820,JASO-D622, 欧盟和RoHS 指令 |
Remarks 备注 |
UL |
产品外形尺寸(mm)/Overall dimensions of the product(mm)
产品型号/Product type
|
Model 型号 |
Product code 产品代码 |
Rated current 额定电流 A |
I²t(A²Sec) |
Power consumption 功率损耗 W |
|
| 弧前 | 总 | ||||
| MEV-P-D20 | MEV-P-D20-250 | 250 | 6250 | 42000 | 45 |
| MEV-P-D20-315 | 315 | 10000 | 68500 | 55 | |
| MEV-P-D30 | MEV-P-D30-250 | 250 | 6250 | 42000 | 45 |
| MEV-P-D30-315 | 315 | 10000 | 68500 | 55 | |

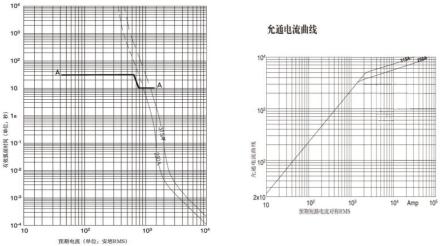

电流特性曲线图/Current characteristic curve MEV-P-D20(10A～200A)/ MEV-P-D30(10A～200A)

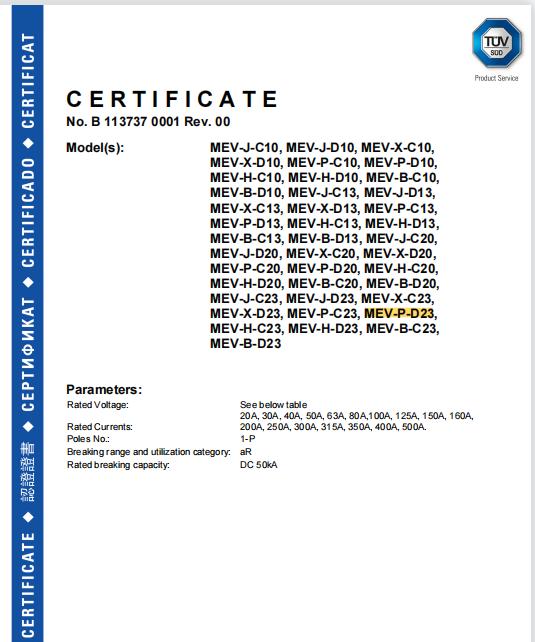

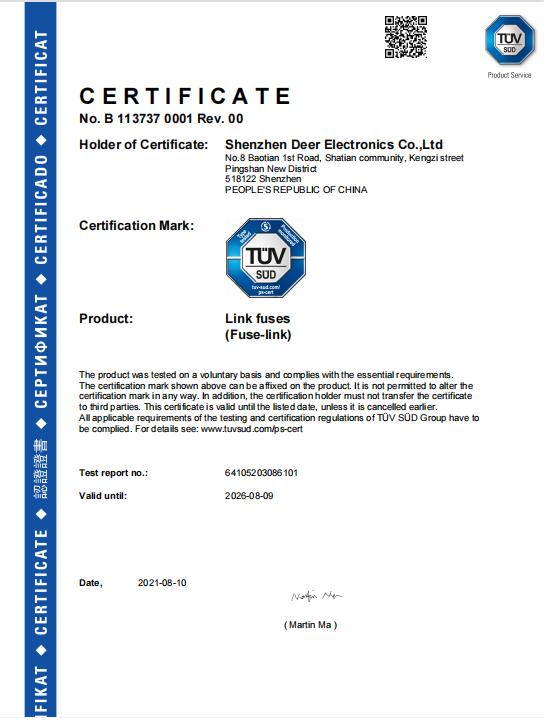

TUV certificate:
