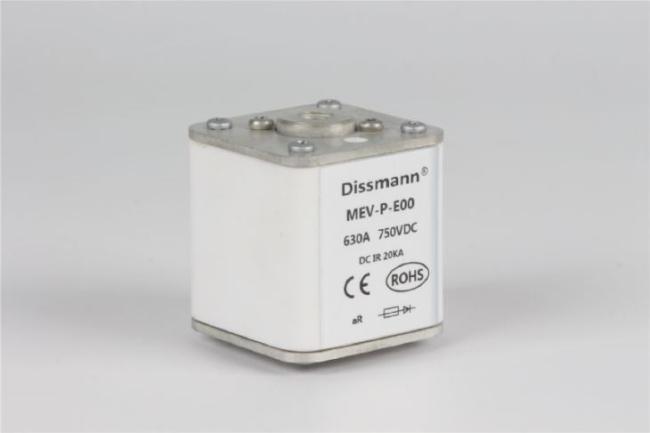

Semiconductor Electric Vehicle Fuses High Voltage 750VDC 630A
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
5-8days
Brand:
Dissmann
Product Description
European Square Fuse Semiconductor Fuse High Voltage Automotive Fuse
Material:
Noumenon: Ceramic
Pins: Alloy
Product Presentation:
|
Rated Voltage
|
DC600V,AC600V or lower |
Type Protection
|
aR |
| Rated Current | 40A-630A |
Breaking Capacity
|
DC10KA (time constant≤10ms) |
|
Meet the Requirement
|
UL248-13,ISO8820,JASO-D622,IEC60269 EU and Rosh Directive |
Remarks
|

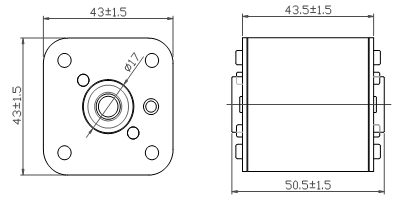

Overall dimensions of the product(mm)
|
Model |
Product code |
Rated current
|
I²t(A²Sec) |
Power consumption |
|
| Pre-arc | Total | ||||
| MEV-N-E00 | MEV-N-E00-40 | 40A | 40 | 270 | 9 |
| MEV-N-E00-50 | 50A | 77 | 515 | 11 | |
| MEV-N-E00-63 | 63A | 115 | 770 | 14 | |
| MEV-N-E00-80 | 80A | 185 | 1250 | 18 | |
| MEV-N-E00-100 | 100A | 360 | 2450 | 21 | |
| MEV-N-E00-125 | 125A | 550 | 3700 | 26 | |
| MEV-N-E00-160 | 160A | 1100 | 7500 | 30 | |
| MEV-N-E00-200 | 200A | 2200 | 15000 | 35 | |
| MEV-N-E00-250 | 250A | 4200 | 28500 | 40 | |
| MEV-N-E00-315 | 315A | 7000 | 46500 | 50 | |
| MEV-N-E00-350 | 350A | 10000 | 68500 | 55 | |
| MEV-N-E00-400 | 400A | 15000 | 105000 | 60 | |
| MEV-N-E00-450 | 450A | 21000 | 140000 | 65 | |
| MEV-N-E00-500 | 500A | 27000 | 180000 | 70 | |
| MEV-N-E00-550 | 550A | 34000 | 230000 | 75 | |
| MEV-N-E00-630 | 630A | 48500 | 325000 | 80 | |

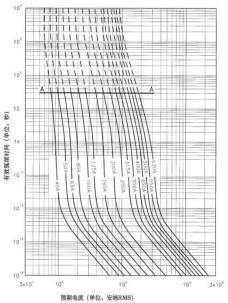

Current characteristic curve of Semiconductor Electric Vehicle Fuses
Allowable current curve
Test equipment
Production equipment
