Medical visual laryngoscope with Three Different Laryngoscope Disposable Blades

Company Overview:

Product of video laryngoscope HYHJ-1330 III

Production Capacity:

Main Features :

HYHJ-1330 Medical visual laryngoscope is the latest product of our company.The machine is novel in design, beautiful in appearance, small in portability, complete in function and simple in use,It is a functional, portable, practical, durable and highly configured medical visual laryngoscope. It is an ideal teaching material tool for the teaching of hospital first aid, clinical use and endotracheal intubation.

• It has high precision and full mold production process, and has long service life.
• The machine adopts an imported large capacity lithium battery, which can be used for more than 350 minutes.
• It has the functions of photographing, video, freeze-frame and so on, and can be stored and exported;
• The special anti fogging function can be used normally for 3 minutes by opening the machine, and there is no blind zone in the intubation.

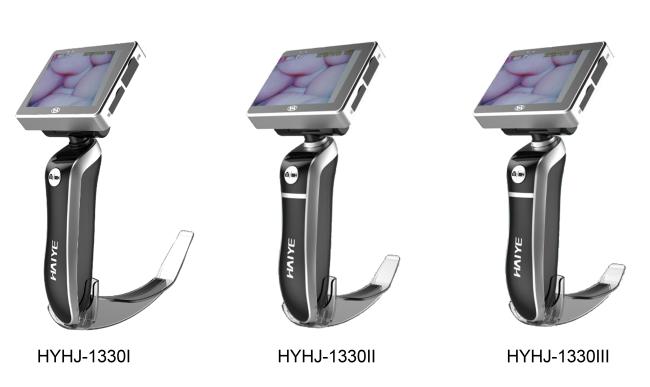

• The machine has three different specifications, corresponding to three types of camera, suitable for three different laryngoscope lenses, adults, children, infants and young children can be used.
• The laryngoscope blade is sterilized in one time to prevent cross infection.
• Mature and reliable electronic scheme and high definition digital camera system, with 3 "TFT color display screen, image reduction effect is good

Technical Index

Technical Parameter:

◆ Resolution:960×480

◆ Pixel:200万

◆ Effective depth of field:3～100mm

◆ Field angle:70±2º

◆ Battery endurance:≥6h

◆ Charging time:≤4h

◆ Battery life:Cyclic charging＞800 times

◆ Display: 3 "TFT color display screen

◆ Angle of rotation before and after the display:0º～135º Left and right angle of rotation:0º～275º

◆ Light source with high power waterproof LED light source, light illuminance:≥3000lux

Work Environment:

◆ Temperature:5℃～40℃

◆ Humidity:≤80%

◆ Atmospheric pressure:860hpa～1060hpa

◆ Charger input:100～240V,50/60Hz,0.35A

◆ Charger output:5V,2000mA

Q: Are you Manufacturer?
A: We are professional manufacturer of video laryngoscope in China over 5 years, now we mainly produce video laryngoscope with disposable and reusable blade,welcome to visit our factory.

Q: What’s your MOQ and OEM service available?
A: 1 sets as sample can accept, we offer OEM service and print your logo as your requirement.

Q: Can we replace disposable and reusable blade?
A: Main machine is the same, you can match our disposable or reusable freely.

Q: Whats your warranty?
A: We offer 12 months warranty, within warranty change new machine, after warranty only pay produce cost.
