G758/40/100 Type Plug-In Heavy Steel Grating Is Customized By The Manufacturer

Product introduction of g758 / 40 / 100fg steel grating plate

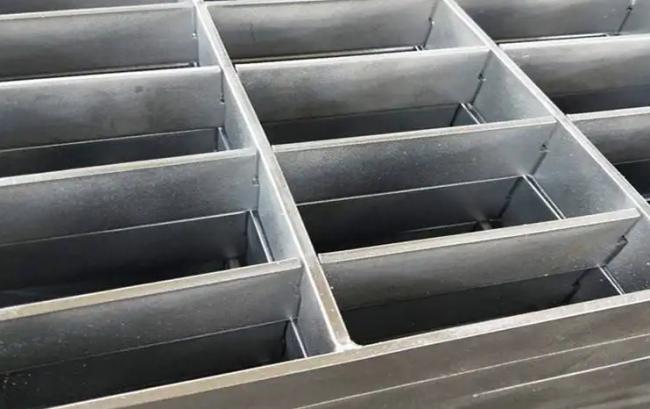

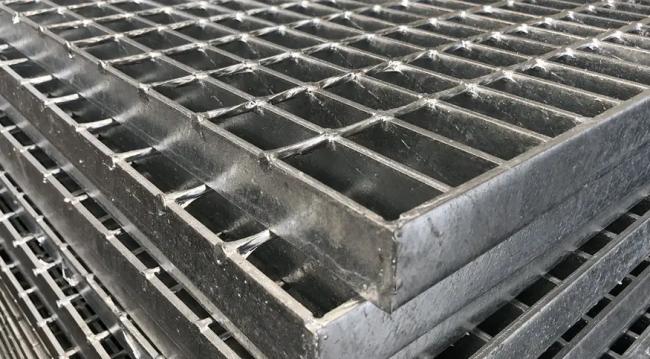

G758 / 40 / 100fg steel grating plate adopts plane hot-dip galvanized steel grating plate with 75mm * 8mm section of flat steel and 100mm and 40mm spacing between cross bar and flat steel respectively. Under the action of high current and high voltage of large pressure welding machine, the flat steel and cross bar are welded together horizontally and longitudinally according to a certain spacing (or manual welding). Finally, after manual welding and edging, polish, remove rust and hot galvanize to become finished galvanized grating mesh, The metal grid plate not only shows corrosion resistance and oxidation resistance, but also has compression and impact resistance.

Property sheet of G758/40/100 heavy steel grating plate

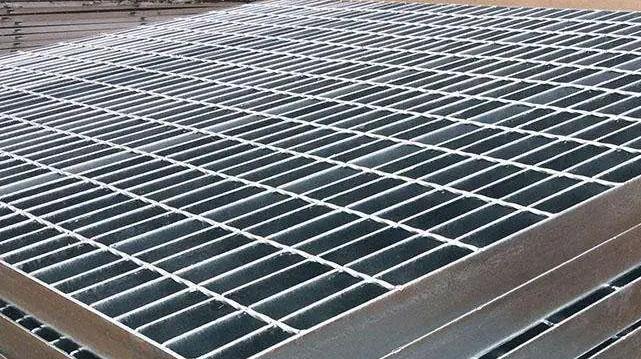

The performance of G758/40/100 type heavy steel grating plate

The large weight of large flat steel thick cross bar is an obvious feature of heavy steel grating. The grating plate with this parameter has a strong load-bearing capacity. It is used to carry large trucks and trucks. There is no problem with the compressive load of tens of tons. Although the application scope is small, it plays an important role, especially in large port terminals, heavy-duty trucks, granary unloading and other scenes. In addition to excellent bearing performance, it also has anti-corrosion and anti-oxidation properties, long service life and convenient installation and disassembly.

Customized service of heavy steel grating

Kaiheng steel grating is a company specializing in the manufacture of steel grating. We can provide customers with personalized customized services and customize heavy steel grating. We can express your needs to our online customer service, and then we can provide you with quotation. The charging mode we adopt is deposit + balance payment. The specific payment and delivery procedures will be communicated again.
