Photovoltaic IP68 Waterproof Solar Panel Extension Cable 6mm² 10AWG
6mm² 10AWG Solar Adapter Cable Photovoltaic IP68 Waterproof Solar Cable Extension
Product Description:

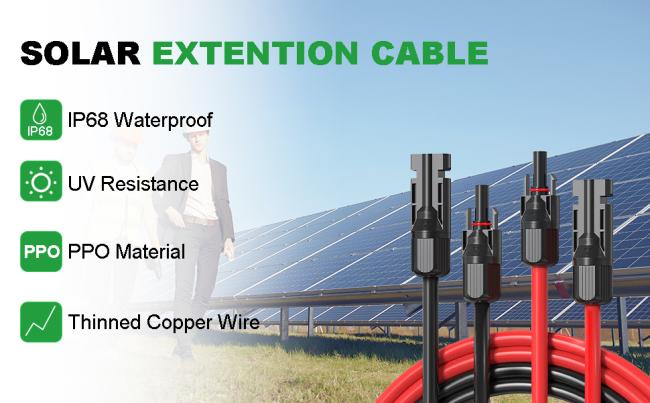

【Premium Material Solar Cable】: The solar panel extension cable is made of tin plated conductive copper material, low resistance to ensure good electrical conductivity. The solar plug shell is made of PPO insulation material, which has the characteristics of good flame retardancy, self-extinguishing, high strength, abrasion resistance and corrosion resistance.
【Technical data Solar cable 6mm2】: Professional photovoltaic solar cable, TÜV, CE certification, cross-sectional area: 6mm², temperature range: environment -40°C90°C, test voltage: 6500V, conductor resistance: (20°C) ≤≤5.09Ω/KM, weather resistance: UV, rated current: 55A.
【Solar Panel Cable】: Each solar cable extension includes a plug at both ends that allows you to connect multiple cables together for a longer length. The TÜV imprint per foot indicates that the cable meets TÜV standards for PV solar applications.

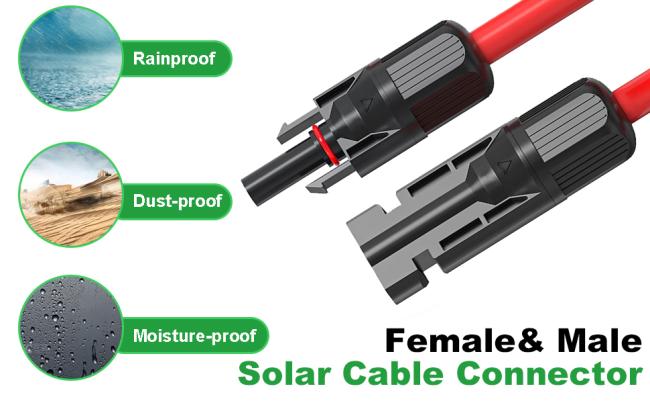

【IP68 Waterproof Plug】: Polyolefin, Flame Retardant Insulation Material, Conductor Part, Tinned Copper Material, IP68 Waterproof, Flood Proof, Dust Proof, Weatherproof, Designed for Extreme Heat and Cold, Specially designed for Photovoltaic Systems, Designed for Extreme Weather, It can be buried directly in the ground.
【Wide application】: The solar cable is moisture, UV and corrosion resistant. Designed for long life and outdoor applications. Our product is suitable for solar power plants, PV connectors and PV junction boxes and can be easily connected to similar connector types supplied with most solar modules.
Product Specifications
| Cable Length | 2m |
|---|---|
| Color | 10 AWG 2m + 1 Pair Connector |
| Gauge | 10 |
| Part Number | HX1611 |
| Size | 20 m 10 AWG |
| Rated Voltage | 1.8KV (DC); 0.6~1KV (AC) |
| Operating Temperature | -40~+194℉ (-40~+90℃) |
|
Product name
|
50A Anderson Connector to MC4 Solar Panel Connector Extension Cable 45cm
|
|
Voltage
|
600V
|
|
Conductor material
|
Tinned Copper
|
|
Core insulation
|
XLPE
|
|
Color
|
RED & BLACK
|
|
Cable length
|
45cm or as optional
|
|
Packing
|
PE bag with Carton
|
Solar cable Extension cable with connection cable
- Compatible with PV cables with different ones.
- With convenient installation, strong commonality.
- Double sealing rings for better waterproof effect.
- With excellent aging resistance and TUV endurance.
- Creates seal, design of dust seal.
- Easy assembly processing and easy removal of plugs without additional tools.
- Resistance from extra high to low temperature and refractory.
6mm² solar cable extension
- Length selection: 3/6/9/12/15/18/21 m
- Cable specification: 10Ft-70Ft/10 AWG
- Operating temperature -40°C~ +90°C
- Conductor resistance: (20°C) ≤≤5.09Ω/KM
- Lower contact resistance
- Load capacity with high current and high voltage

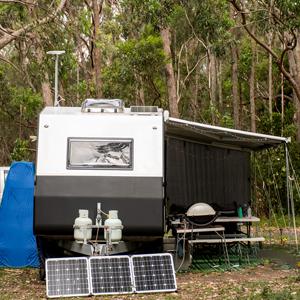

For Home Solar Panel Solar cable for RV solar panel For solar photovoltaics
