Multicolor Flexible Silicone Wire , 10000/0.08 Wear Resistant 50 MM2 Cable

Price Negotiable

Price: Negotiated

MOQ: 100

Delivery Time: 1-5working days after receive payement

Brand: Hexie

Product Description

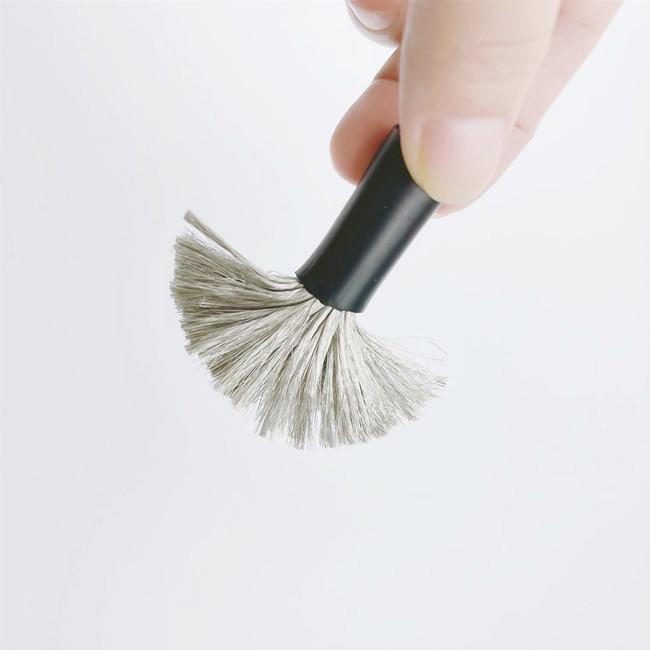

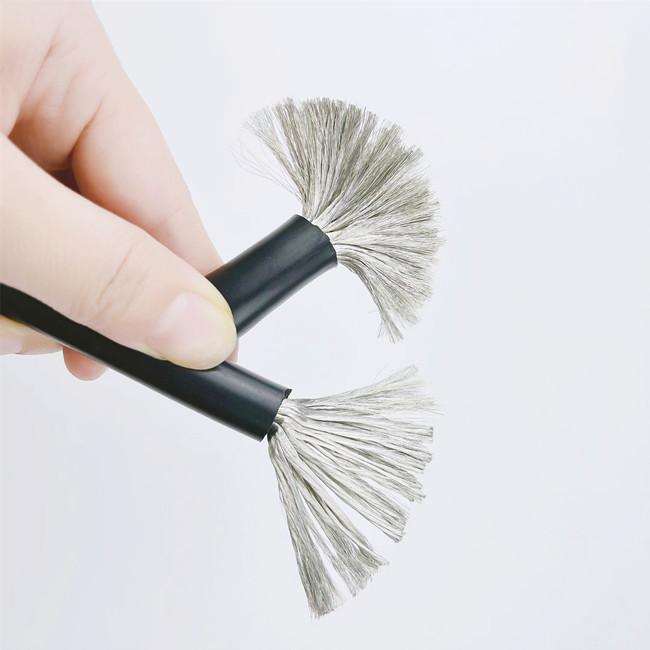

Flexible Silicone Cable 10000/ 0.08 Tinned Copper Rubber Wire 0awg sectional area 50mm²

0AWG special soft high temperature silicone wire
Temperature resistance: -60 degrees+200 degrees

Nominal Voltage: 600V

Testing Voltage: 2000V
Color: Black, Red, Yellow, Blue, Green, While, Orange, etc
Single copper wire diameter: 0.08mm
Inner core: 10000strands

Sectional Area: 50mm²
Outside diameter: 13mm

Conductors: Tinned Copper

Insulator: Silicone Rubber

Use:Vehicles & Remote Control Toys

We all can make these silicone wire for you, any color is custmoized, please see below::

4AWG Silicone Wire, 5000/0.08TS OD:12.0mm, Package:200m/roll

6AWG Silicone Wire, 3400/0.08TS OD:10.0mm, Package:200/roll

7AWG Silicone Wire, 526/0.16AS OD7.5mm, Package:200m/roll

8AWG Silicone Wire, 1650/0.08TS OD:6.8mm, Package:200m/roll

9AWG Silicone Wire, 1350/0.08TS OD5.0mm, Package:200m/roll

10AWG Silicone Wire, 1050/0.08TS OD5.5mm, Package:200m/roll

11AWG UL3135 Silicone Wire, 816/0.08TS OD:5.0mm, Package:200m/roll

12AWG Silicone Wire, 680/0.08TS OD4.5mm, Package:200m/roll

13AWG Silicone Wire, 500/0.08TS OD4.0mm, Package:200m/roll

14AWG Silicone Wire, 400/0.08TS OD3.5mm, Package:200m/roll

15AWG Silicone Wire, 336/0.08TS OD3.1mm, Package:200m/roll

16AWG Silicone Wire, 252/0.08TS OD3.0mm, Package:200m/roll

17AWG Silicone Wire, 200/0.08TS OD2.7mm, Package:200m/roll

18AWG Silicone Wire, 150/0.08TS OD2.3mm, Package:200m/roll

19AWG Silicone Wire, 130/0.08TS OD2.0mm, Package:200m/roll

20AWG Silicone Wire, 100/0.08TS OD1.8mm, Package:200m/roll

23AWG Silicone Wire, 50/0.08TS OD1.2mm, Package:200m/roll

22AWG Silicone Wire, 60/0.08TS OD1.7mm, Package:200m/roll

24AWG Silicone Wire, 40/0.08TS OD1.6mm, Package:200m/roll

26AWG Silicone Wire, 30/0.08TS OD1.5mm, Package:200m/roll

28AWG Silicone Wire, 16/0.08TS OD1.3mm, Package:200m/roll

30AWG Silicone Wire, 11/0.08TS OD1.2mm, Package:200m/roll

Conductor			Iusulator		Rical Character	Sectional area	Carrying current	packing
Spe (AWG)	Copper wire shares (compos.NO./mm)	Diameter (mm)	Jacket Thick (mm)	Overall diameter (mm)	Conductor resistance (Ohm/km)	Square millimeter(mm2)	(ampere)	(M/coils)
30AWG	11/0.08	0.30	0.55	1.20	331.00	0.05	0.80	200.00
28AWG	16/0.08	0.36	0.55	1.30	227.20	0.08	1.25	200.00
26AWG	30/0.08	0.46	0.55	1.50	123.00	0.14	3.50	200.00
24AWG	40/0.08	0.61	0.55	1.60	97.60	0.20	5.00	200.00
22AWG	60/0.08	0.78	0.55	1.70	88.60	0.33	8.73	200.00
20AWG	100/0.08	0.92	0.55	1.80	62.50	0.50	13.87	200.00
18AWG	150/0.08	1.19	0.55	2.30	39.50	0.75	22.00	200.00
17AWG	210/0.08	1.33	0.80	2.70	21.40	1.00	31.00	200.00
16AWG	252/0.08	1.53	0.80	3.00	24.40	1.27	35.00	100.00
15AWG	336/0.08	1.69	0.80	3.10	20.02	1.68	42.00	100.00
14AWG	400/0.08	1.78	0.90	3.50	15.60	2.07	55.60	100.00
13AWG	500/0.08	2.06	0.95	4.00	12.50	2.50	65.00	100.00
12AWG	680/0.08	2.48	1.00	4.50	9.80	3.40	88.40	100.00
11AWG	800/0.08	2.59	1.00	4.60	7.38	3.96	100.00	100.00
10AWG	1050/0.08	3.06	1.25	5.50	6.30	5.30	140.60	100.00
8AWG	1650/0.08	3.75	1.50	6.80	4.20	8.29	200.00	100.00
6AWG	3430/0.08	5.40	1.30	8.00	1.20	17.23	320.00	50.00
4AWG	5000/0.08	6.50	1.75	10.50	0.84	25.00	120.00
2AWG	7000/0.08	8.00	2.00	12.00	0.53	35.00	175.00
