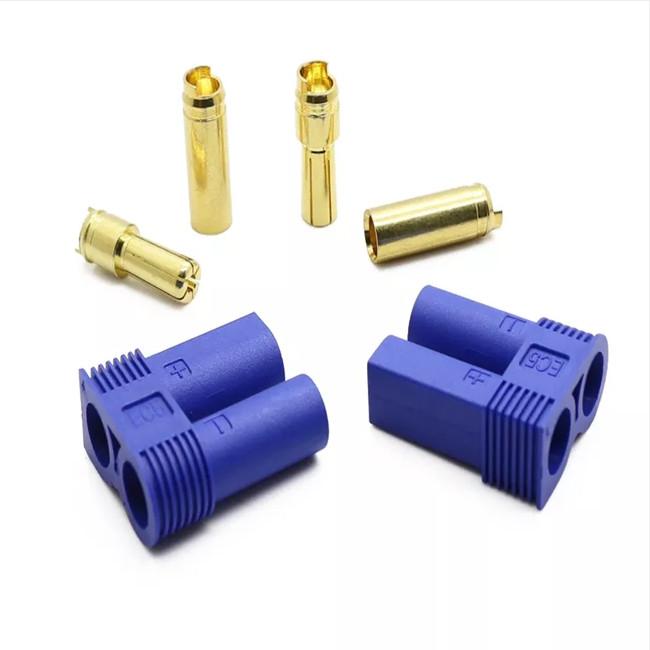

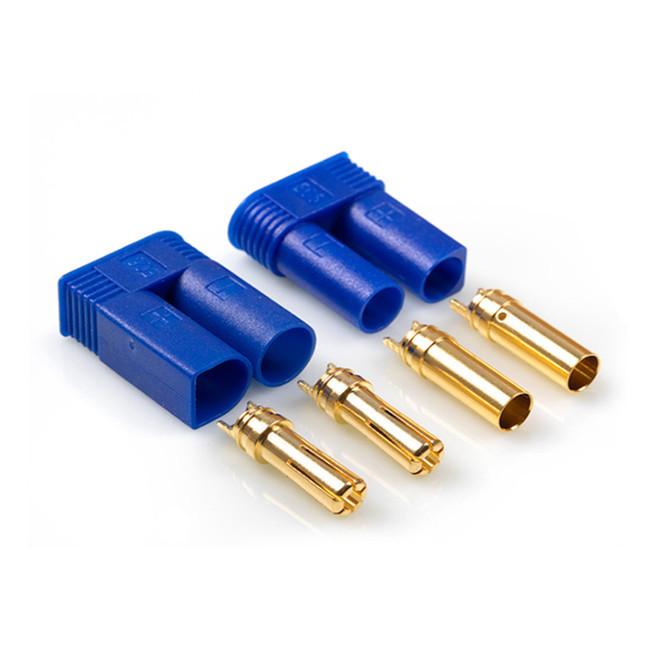

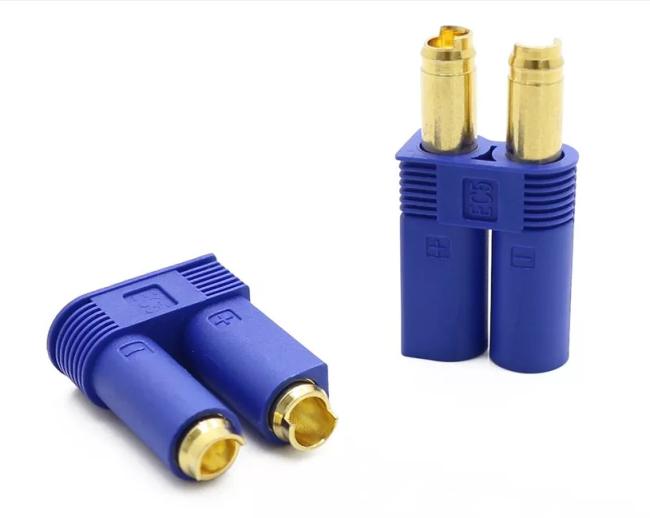

5mm EC5 RC Battery Connectors Gold Plated With Blue Plastic Housing
EC5 Battery Connectors Male & Female 5.0mm Gold Plated Connector with Blue Plastic Housing
1.PA66 housing can keep the stength without deformation,melt when working under large current and high temperature.
2.Male and female close integration insures metal contactor perfectly combined and current stable transmission. 15g/set.
Description:
Key features of EC5 include:
5MM bullet connectors
Ergonomically pleasing and easy to grip
Protected to avoid shorting and reverse polarity
Superior technology suited to today's advanced applications
for Designed with convenience and reliability in mind
Color: Blue
Feature
Plug material: copper plating gold
Cover material: PA
Rated current: 40A
Momentary current: 90A
Use times: 1000 times
Contact resistance: 0.40mΩ
Rated voltage: DC 500V
Flame retardant level: V2
Using: battery / controller
Recommend Cable: 10AEG
Work Temperature: -20℃ to 120℃
| Housing Material | PA Material |
| Contact Material | Copper with Gold Plated |
| Color | Blue or Black |
| Weight | 15g/Set |
| Fuction | Use for RC Lipo Battery Power |
| Gender | Male and Female |
| Delivery Time | 5-7 Days |
| Customized | OEM/ODM Available |
