China Juice Honey Perfume Filter Stainless Steel 304 Duplex Bag Filter Housing for sale

Juice Honey Perfume Filter Stainless Steel 304 Duplex Bag Filter Housing

Price Negotiable
Price: $140-600
MOQ: 1
Delivery Time: Negotiable
Brand: yate
Product Description


APPLICATION OF STAINLESS STEEL BAG FILTER HOUSING


Food and beverage: beer, wine filtration; juice and soda Filtration ; Syrup, oral liquid filtration; Additives, oil filtration
Water treatment: urban water supply, industrial water filtration; Power plant condensate filtration
Automotive: electrophoretic paint filtration; varnishes and topcoats filtration
Electronics industry: lithium battery coolant filtration
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration
Fine chemicals: catalyst filtration; Filtration of cosmetics raw materials and finished products; Chemical auxiliary filtration
Petrochemical industry: aviation kerosene filtration; Diesel and fuel filtration ；graphene, ink filtration

Contact: Shirley Ju
Email: yate20201225@163.com
Whatsapp/WeChat/Mob.: + 8615265667398
Products Description

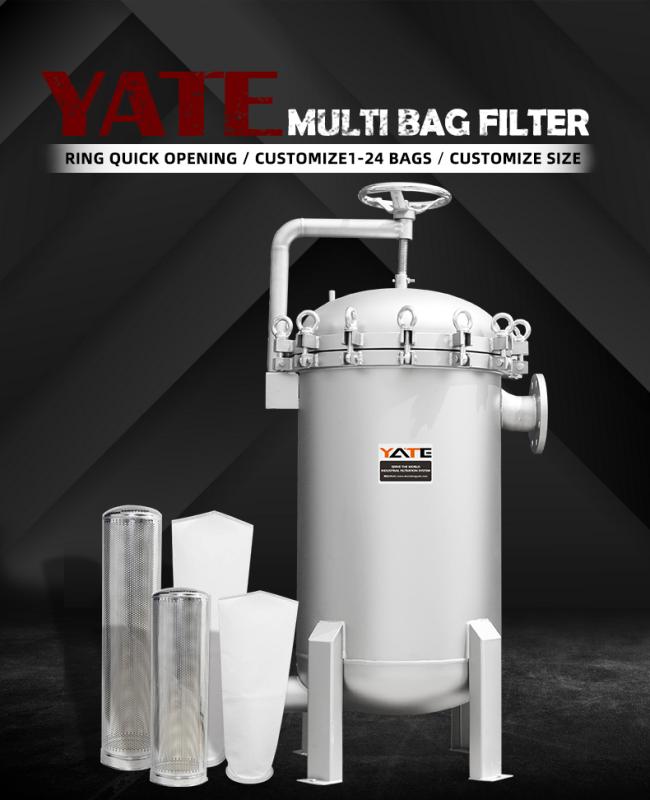

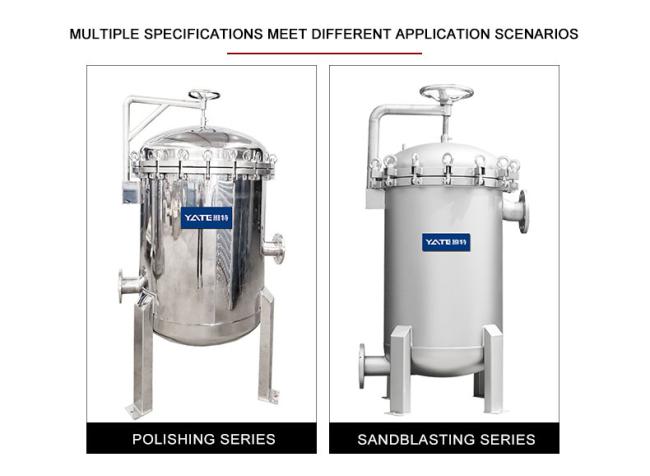

STAINLESS FLITER HOUSING

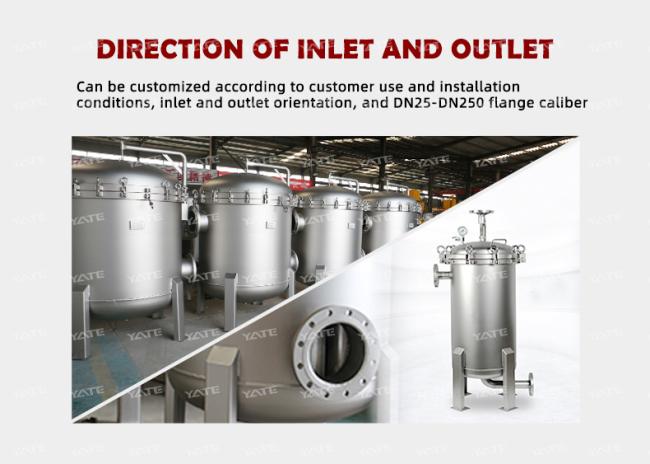

Stainless filter housing is designed for high capacity pollution or large flow filtration requirements, provide 2-60 bags of design customization, import and export of a variety of sizes optional (DN50-DN300), convenient direct connection, ensure sufficient equipment strength and pipeline load bearing capacity, quick open design, unscrew the nut to remove the cover, convenient maintenance, Made of high-quality stainless steel 304, 316L and other materials.
Model
Filter Bag#
Filter Bag
Qty
Filtration Area(m2)
Connection
Max.Flow
(m3/h)
Working Pressure(MPa)
YT-1D
1#
1
0.25
DN50
20
0.6
YT-2D
2#
1
0.5
DN50
40
0.6
YT-2P2S
2#
2
1
DN50-DN100
70
0.6
YT-3P2S
2#
3
1.5
DN80-DN100
100
0.6
YT-4P2S
2#
4
2
DN80-DN100
140
0.6
YT-5P2S
2#
5
2.5
DN80-DN100
175
0.6
YT-6P2S
2#
6
3
DN80-DN100
240
0.6
YT-7P2S
2#
7
3.5
DN80-DN100
245
0.6
YT-8P2S
2#
8
4
DN100-DN200
280
0.6
YT-10P2S
2#
10
5
DN150-DN200
350
0.6
YT-12P2S
2#
12
6
DN150-DN250
420
0.6
YT-14P2S
2#
14
7
DN200-DN250
490
0.6
YT-16P2S
2#
16
8
DN200-DN300
560
0.6
YT-18P2S
2#
18
9
DN250-DN350
630
0.6
YT-20P2S
2#
20
10
DN250-DN400
700
0.6
YT-22P2S
2#
22
11
DN300-DN450
770
0.6
YT-24P2S
2#
24
12
DN350-DN450
840
0.6
Advantages

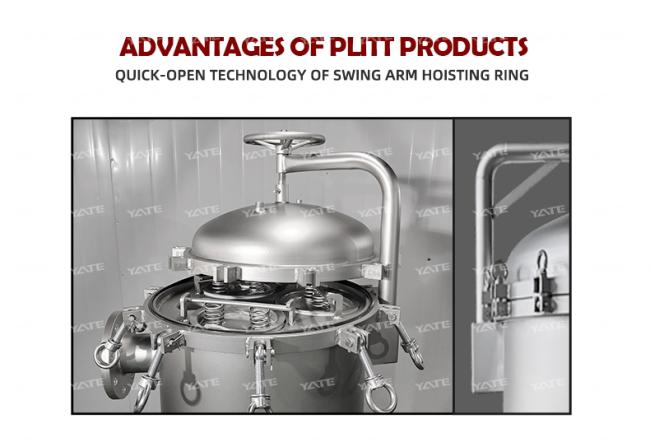

QUICK OPENING TECHNOLOGY OF ROCKER RING


M16 high strength lifting ring, rocker arm cap opening mechanism, easy maintenance, reduce costs, widely used in industrial and water treatment and filtration fields.
Recommend Products
Product packaging

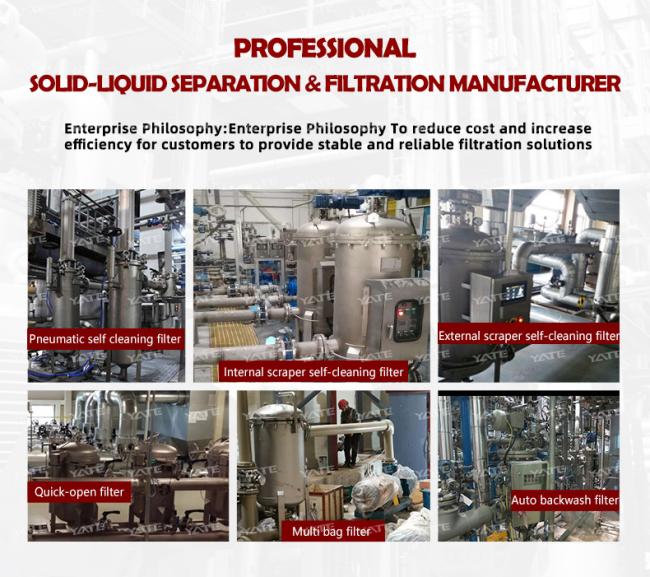

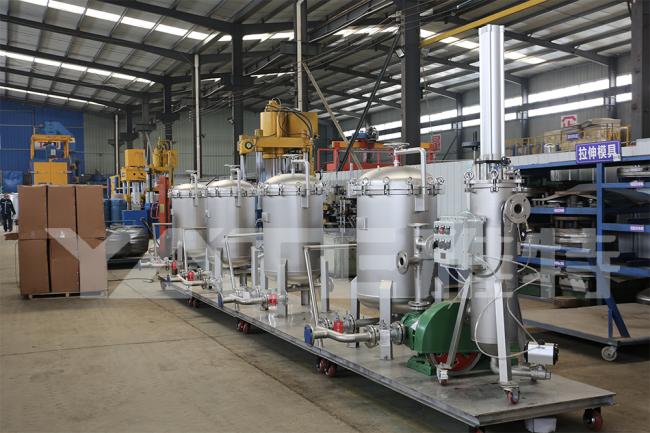

Application scenarios

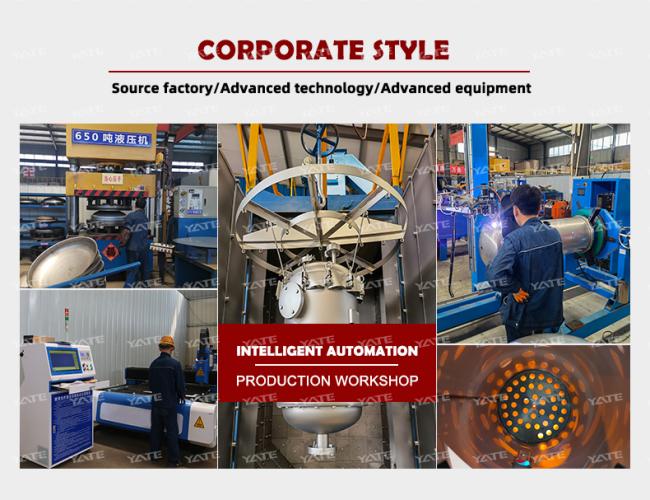

Company Profile
