22kw ODM Apron Plate Feeder Uniform And Continuous Feeding Long Life Apron Conveyor Systems
200-600 TPH Apron Plate Feeder Uniform And Continuous Feeding Long Life
Equipment Characteristics
1. The production capacity is 200-600 tons per hour.
2. The weight is 26.5 tons.
3. The width of chain plate is 1500mm, and the length of chain is 6000mm.
4. The chain speed is 0.05-2 rpm.
5. The motor power is 22 kW.
Features and Benefits
1. Usually arranged under the hopper or pile to ensure that the material reaches its destination with a constant flow.
2. Robust design and strength of the Apron Plate Feeder ensures long life and continuous operation.
3. Comes with standard parts to ensure easy procurement of spare parts.
4. Standard options available include infeed box, pin gate, discharge chute, overflow chute, etc.
Technical Reference Data
| Model | Chain plate width (mm) | plate chain length (mm) | Maximum feed side length (mm) | Production capacity (t/h) | Chain speed (r/min) | Power (kw) | Weight (t) |
| XCBW8005 | 800 | 5000 | ≤400 | 50-150 | 0.05-0.2 | 7.5 | 13.8 |
| XCBW1006 | 1000 | 6000 | ≤450 | 70-200 | 0.05-0.2 | 11 | 17.5 |
| XCBW1008 | 8000 | 15 | 20 | ||||
| XCBW1010 | 10000 | 22.8 | |||||
| XCBW1013 | 13000 | 18.5 | 26.5 | ||||
| XCBW1206 | 1200 | 6000 | ≤650 | 120-280 | 0.05-0.2 | 18.5 | 21 |
| XCBW1208 | 8000 | 23.8 | |||||
| XCBW1210 | 10000 | 22 | 25.6 | ||||
| XCBW1212 | 12000 | 28.5 | |||||
| XCBW1506 | 1500 | 6000 | ≤800 | 200-600 | 0.05-0.2 | 22 | 26.5 |
| XCBW1508 | 8000 | 29.5 | |||||
| XCBW1513 | 13000 | 30 | 36.8 | ||||
| XCBW1608 | 1600 | 8000 | ≤850 | 220-680 | 0.05-0.2 | 37 | 31.3 |
| XCBW1810 | 1800 | 10000 | ≤850 | 280-820 | 0.05-0.2 | 37 | 38.6 |
| XCBW2008 | 2000 | 8000 | ≤1000 | 330-980 | 0.05-0.2 | 45 | 42.8 |

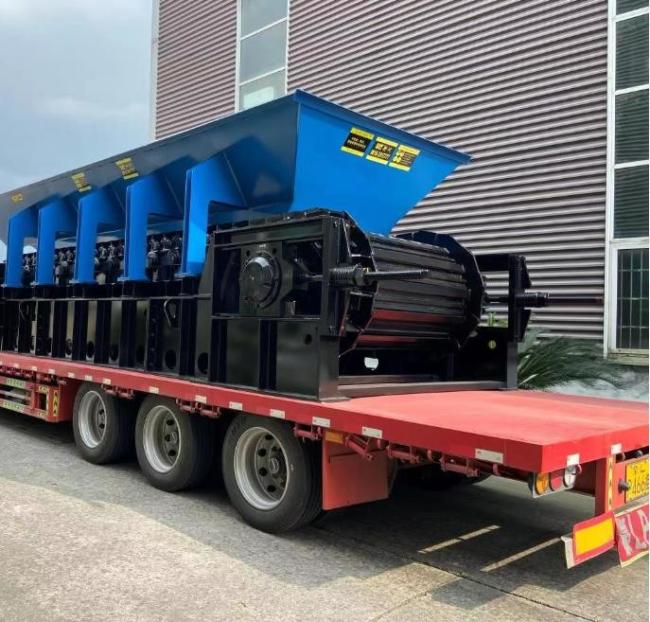

Shipping
