75-260 TPH Cone Stone Crusher Mine Crushing Large Crushing Ratio OEM
Price:
USD 27,123.29-31,935-48 one set
MOQ:
1 set
Delivery Time:
30 days
Brand:
BENO
Product Description
75-260 TPH Output Cone Crusher Hard Material Crushing Large Crushing Ratio
Equipment Description
Single-cylinder hydraulic Cone Crusher is mainly developed and produced to reduce costs and improve efficiency in crushing production of mine stone and sand aggregate. Cone Crusher is applicable to construction, mining, metallurgy, building materials, water conservancy and other fields.
The model of this Cone Crusher is XCPG100C, which is the smallest in this series of equipment. Its feeding granularity is below 200 mm, and the adjustment range of the discharge port is 40-100 mm. Customers can set it according to their own material needs. The production capacity of this Cone Crusher is 75-260 tons per hour, which is applicable to the crushing production line of small and medium-sized mines. It is driven and operated by a motor with a power of 75-90 kW. The total weight of the Cone Crusher is 9 tons, and it can operate stably on the plane.
Technical Reference Data
| Model | Cavity type | Maximum feed size (≤mm) | Discharge port adjustment range (mm) | Production capacity (t/h) | Power (kw) | Weight (t) |
| XCPG100 | C | 200 | 40-100 | 75-260 | 75-90 | 9 |
| Z | 100 | 20-45 | 45-190 | 90 | 8.2 | |
| X | 40 | 6-20 | 35-85 | 7.2 | ||
| XCPG200 | C | 250 | 45-105 | 125-325 | 132-220 | 15.5 |
| Z | 150 | 25-55 | 65-240 | 14.8 | ||
| X | 60 | 8-35 | 45-165 | 13.6 | ||
| XCPG300 | C | 300 | 45-105 | 185-440 | 160-315 | 20.8 |
| Z | 160 | 30-65 | 120-325 | 19.5 | ||
| X | 80 | 10-40 | 75-240 | 15.9 | ||
| XCPG500 | C | 350 | 50-105 | 350-870 | 250-335 | 34 |
| Z | 180 | 45-80 | 220-500 | 33.2 | ||
| X | 85 | 12-50 | 140-350 | 27.3 |

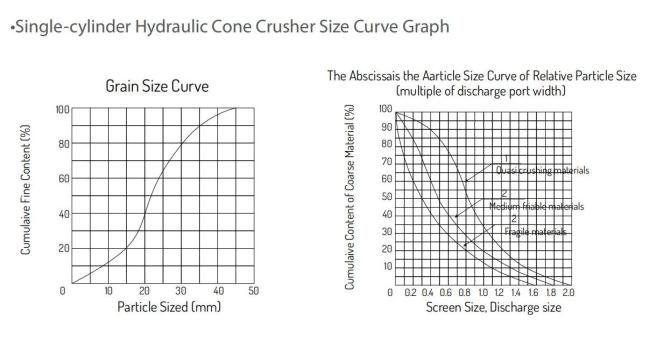

Curve Parameter Diagram
