Industrial Coated Galvanized Sheet Plate For Corrugated Steel Roofing OEM
Galvanized Coated Boiler Plate Iron Steel Sheet Plate Metal Thick Gi Corrugated Steel Roofing
Galvanized steel refers to that ordinary carbon construction steel is galvanized, which can effectively prevent corrosion and rust of steel, thereby prolonging the service life of steel. Among them, galvanizing is divided into electro-galvanizing and hot-dip galvanizing. Generally used in building exterior walls, such as glass curtain walls, marble curtain walls, aluminum curtain walls as columns and stress materials, or used in outdoor telecommunications towers, highways and other open-air construction steel called galvanized steel, of which galvanizing is divided into electro-galvanized and hot Dip galvanized.
| Product Name | Corrugated Steel Sheet / Steel roofing tile |
| Grade | GI: JIS 3302-SGCC, SGCH(full hard) GL:JIS 3302-SGLC, SGLCH(full hard) |
| Thickness | 0.12mm-0.8mm |
| Width | 665mm-1000mm |
| Length | 1000mm-5900mm |
| Wave Height/Length | Depend on the model of the sheet |
| Raw Material | GI(Galvanized steel sheet) GL(Galvalume steel sheet) |
| Surface Treatment | GI:Chromed(Cr 3+, 6+,0+) GL: Anti-Finger Print / Non Anti-Finger Print |
| Spangle | GI: Regular/Zero/Big/Minimized GL:Regular |
| Yield Strength | ≥300MPa |
| Bundle Weight | 2MT - 5MT |
| Lifespan | 10-15 years, anti-corrosion |

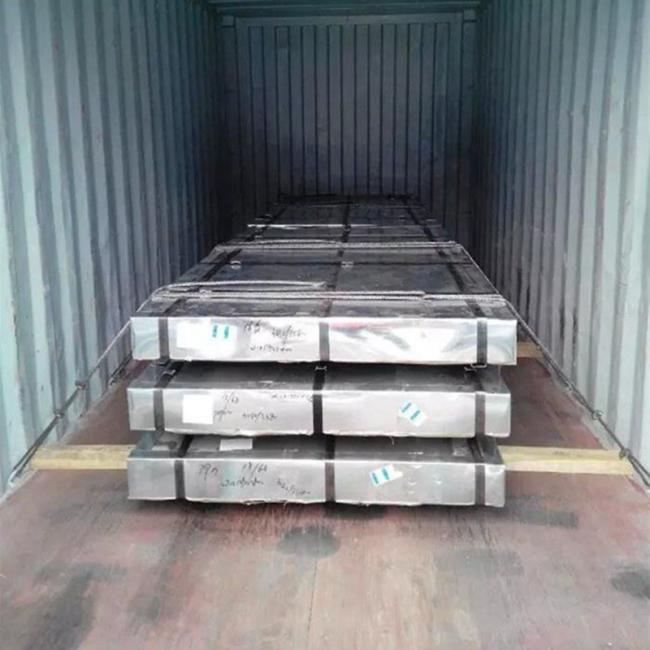

| Packing | Standard export package, by steel pallet. Or according to customer's requirements |
| Application | Building material: roof, wall of industrial workshop, warehouse, moving house, container, etc |
| Loading Port | Tianjin Port / Qingdao port, China |
| Remarks | Insurance is all risks |
| Usage | Grade | Yield Strength (MPA) | Tensile Strength (MPA) | Elongation rate % |
| Punching galvanized steel | DX51D+Z | ~ | 270-500 | >=20 |
| DX52D+Z | 140-300 | 270-420 | >=22 | |
| DX53D+Z | 140-260 | 270-380 | >=26 | |
| DX54D+Z | 140-220 | 270-350 | >=30 | |
| Structure galvanized steel | S220GD+Z | >=220 | >=300 | >=18 |
| S250GD+Z | >=250 | >=330 | >=17 | |
| S280GD+Z | >=280 | >=360 | >=16 | |
| S320GD+Z | >=320 | >=390 | >=15 | |
| S350GD+Z | >=350 | >=420 | >=14 | |
| S400GD+Z | >=400 | >=470 | ~ | |
| S500GD+Z | >=500 | >=530 | ~ | |
| S550GD+Z | >=550 | >=560 | ~ |
