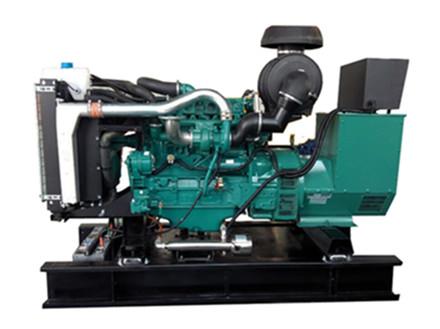

Rated Power 400kWe Volvo Diesel Generator Set Base Type Oil Tank Land Power Station

1. Reliable power quality: The diesel generator set produced by our company uses the world-renowned brand Volvo engine (VOLVO). Brief introduction of Volvo engine: Volvo company was formally established in 1927. After more than 90 years of accumulation, the power range covers 98~800 horsepower. It is widely used in construction machinery, mining machinery, agricultural machinery, ships, and oil and gas fields.

2. Reliable generator quality: The diesel generators produced by our company are equipped with generators with reliable quality and high market holdings, such as ① Stamford generator (STAMFORD) ② Mecc alte generator (mecc alte) ③ Marathon power generation Generators with excellent performance such as marathon.

3. The overall performance of the unit is reliable: In addition to choosing well-known brand power, brand output generators, and precise controllers, our company also uses well-known brands for other components such as Schneider for circuit breakers and camel for batteries. The quality of the whole machine is reliable, and it is safe and convenient to use.

4. Regardless of the power system architecture required to meet your market or application needs our provides a superior combination of solution design expertise, integrated equipment and communication software as well as ongoing operation and generator maintenance services to help you maintain a resilient operation at your site.

5.  Experts in the field of high-quality diesel generator sets

6. The company will provide you with all-round services with the service tenet of "customer first, service first"

Engine Technical Datasheet
Engine Model	TAD1651GE	Brand	Volvo
StandbyPower	430kW	Number of Cylinders	6
Bore×Stroke	144mm×165mm	Governor	Electronic
Displacement	16.12Liters	Lubricant Capacity	48L
Starting method	DC24V

Alternator Technical Datasheet
Alternator Model	HCI544FS	Brand	Stamford
Rated Power	400kW	Protection Grade	IP23
Voltage regulation	AVR	Excitation	brushless PMG
Insulation Grade	H	Type	3phase 4wire

Control system Technical Datasheet

1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines. 2,Microcomputer can be set on the control panel input, output, alarm, delay and other 3,parameters.Maintenance, manual, automatic and other modes of operation. Display Data 1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator 2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh Detection and protection function 1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm 2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit
