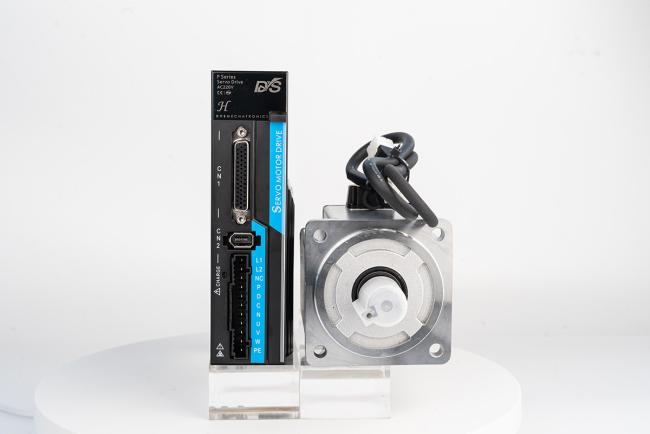

220V 1.5KW AC Servo Drive Motor Motion Control For Printing Machine
220V, 1.5kw,Ik3 Series Bus Servo Drive,Motor Servo, Servo,Servo Motor,AC motor,electric motor for Printing machine
Pulse Type AC Servo System
Product features
Strong internal motion control functions which can realize position, speed,torque,homing controlling modes. It also supports I/O control and standard Modbus RTU protocol. It can replace PLC partly, which helps to save cost.
System Wiring Example
Drives Of P100S Series As Example:
Drives Of P300 Series As Example:
Dimension
Pecification
Products images
EtherCAT Bus Field AC Servos
Feature Introduction
System Wiring Example
Dimension
Drive Specification
Why choose K-Drive variable frequency drive?
In the trend of advocating smart and simple industrial automation, environmentally friendly products, value-added solutions, K-Drive, as one of the world's leading drive manufacturers aggressively investing in R&D, production, and continuous quality improvement, is well positioned to provide its customers with technology-driven, performance-outstanding products such as VFDs, wind power converters, servo drives, HEV/EV drives, helping its customers save energy and increase industrial productivity with sustainability on the one hand, and enhancing their entire value-chain quality, delivery, and services on the other hand.
K-Drive VS Other brands
| Performance | Common brands | K-Drive |
|---|---|---|
| Applicable motors | Asynchronous motors | Asynchronous /synchronous motors |
| Starting torque | 2.0Hz, 150% (sensor-less vector control) 0Hz, 180% (closed-loop vector control) | 0.5Hz, 180% (sensor-less vector control) 0Hz, 200% (closed-loop vector control) |
| Speed adjustable range | 1:100 (SVC), 1:1000 (VC) | 1:200 (SVC), 1:1000 (VC) |
| Ambient temperature (no derating required) | -10-40ºC | -10-50ºC (for most of the models) |
| Rated input voltage | 208VAC-400VAC | 208VAC-480VAC |
| Communication | Modbus RTU//ASCII | Modbus RTU//ASCII Profibus-DP, CANopen, etc. |
| Position control (fixed length, or angular positioning) | × | √ |
| Field weakening control | × | √ |
| Autotune online | Online | Online & Offline |
| Short-time ramp-up | Trip | No trip |
| Customized features (software and/or hardware) | Unprocurable or no experience | Procurable with rich experience |
Production
In production, rigorous quality control is implemented on components, circuit boards, and the finished goods, assuring products without defects.
How ac servo work with ac motor?
An AC servo system typically consists of an AC servo motor and a feedback mechanism, such as an encoder or resolver, along with a servo drive and a control system. The control system sends a command signal to the servo drive, which in turn sends a controlled electrical current to the AC servo motor. The motor converts this electrical energy into rotational energy to turn the load.
The feedback mechanism provides position or velocity feedback to the control system, which compares the actual position or velocity of the load with the desired position or velocity. Based on this comparison, the control system adjusts the electrical current sent to the AC servo motor through the servo drive to maintain the desired position or velocity.
The AC servo motor itself typically consists of a stator and a rotor, where the stator is supplied with a sinusoidal voltage and current, which creates a rotating magnetic field. The rotor contains permanent magnets or electromagnets that interact with the magnetic field created by the stator to generate torque and rotation.
Overall, an AC servo system with an AC motor provides precise and efficient control of position or velocity, making it suitable for applications such as robotics, CNC machines, and industrial automation.
