99% Aluminum Oxide Ceramic Plate Insulating Hexagon Bulletproof Alumina Ceramic Sheet

Price Negotiable
Price: USD 0.5-3 PCS
MOQ: 100 PCS
Delivery Time: 15-20DAYS
Brand: MH
Product Description

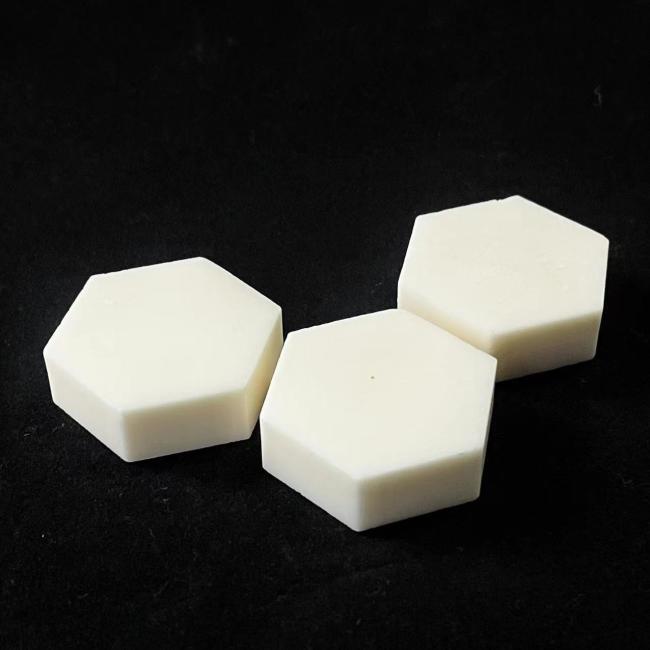

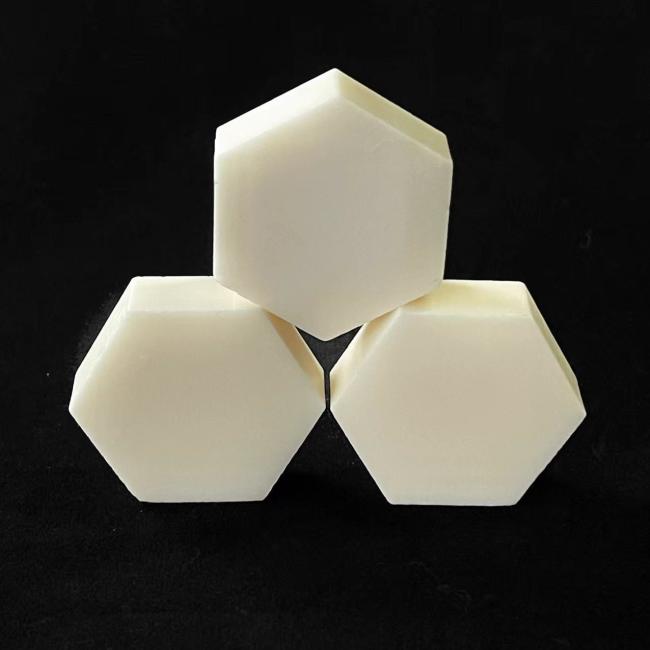

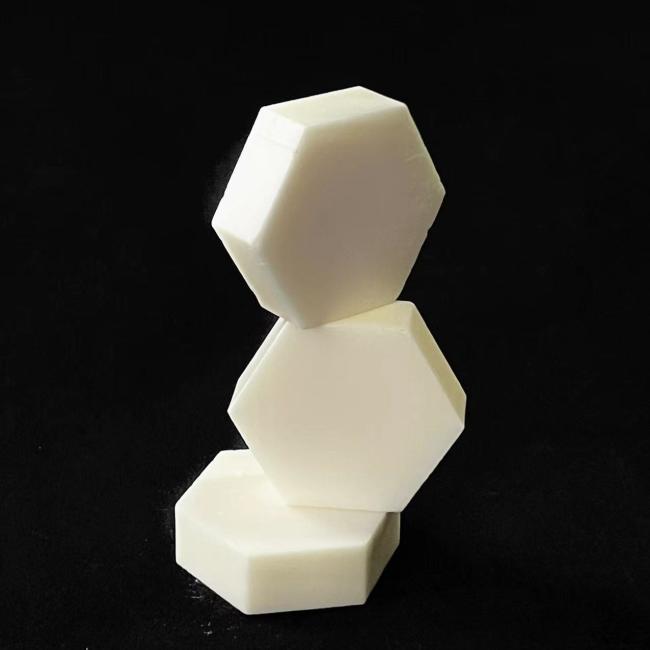

99% alumina oxide ceramic plate insulating hexagon bulletproof ceramic sheet



Ordinary alumina ceramics are classified into 99 porcelain, 95 porcelain, 90 porcelain, 85 porcelain, etc. according to the content of Al2O3. Sometimes the content of Al2O3 is 80% or 75%, which is also classified into ordinary alumina ceramic series. Among them, 99 alumina ceramic materials are used to make high temperature crucibles, refractory furnace tubes and special wear-resistant materials, such as ceramic bearings, ceramic seals and water valve sheets; 95 alumina ceramics are mainly used as corrosion-resistant and wear-resistant parts; In addition, due to the incorporation of part of talc, the electrical properties and mechanical strength are improved, and it can be sealed with metals such as molybdenum, niobium and tantalum, and some are used as electric vacuum devices.


Features & Advantages
1. High hardness.
2. High heat resistance: alumina ceramic has excellentthermal stability,which means that it is widely used in areas where resistance to high temperatures is essential.
3. Good wear resistance: alumina ceramic is the material of choice for alumina wear parts.
4. High electrical resistivity: alumina is an electrically insulating material.
5. High corrosion resistance: it is insoluble in water and only slightly soluble in strong acid and alkaline solutions. Good chemical stability of alumina leads to high corrosion resistance.





Properties Unit Steatite ceramic 95% Al2O3 99% Al2O3 Zirconia Ceramic
Density g/cm³ 2.8 3.6 3.8 5.6
Flexural strength Mpa 145 300 300 354
Max Working Temperature 1100 1400 1600 1400
Sintering temperature 1350 1700 1750 1550
Heat resistance T(℃) 200 220 200 350
Hardness Gpa 5.7 7 10.7 12.3
Elastic modulus Gpa 120 275 320 205
Poissons ratio - 0.21 0.22 0.22 0.30
Linear expansion coefficient x 10-6/℃ 7.9 7.1 7.8 9
Insulation breakdown Intensity KT/mm 10 16 18 15
Thermal conductivity w/(m.k) 2.5 20 25 2.5
Specific Heat *10-3J/(kg*K) 0.75 0.78 0.78 0.4
