Multihole Insulating Hollow Ceramic Tubes 99% Alumina Ceramic Thermocouple Tube
Price:
USD 0.1-0.8/PCS
MOQ:
100 pcs
Delivery Time:
15-20DAYS
Brand:
MH
Product Description

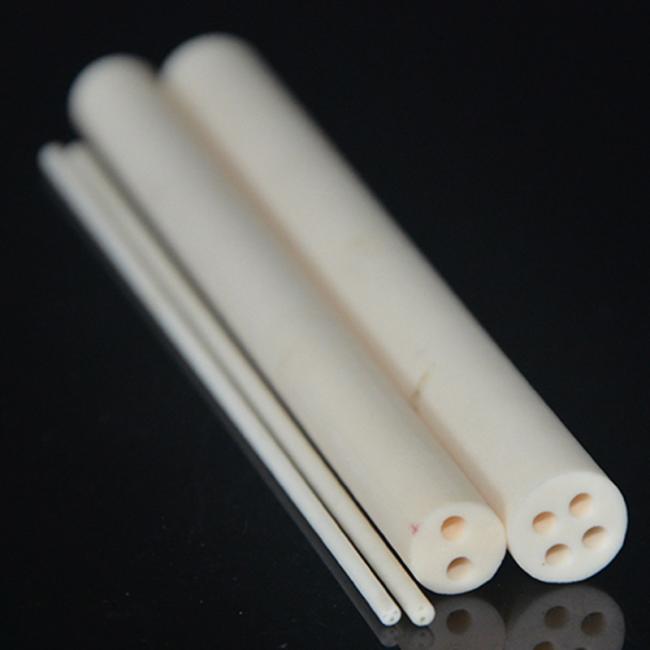

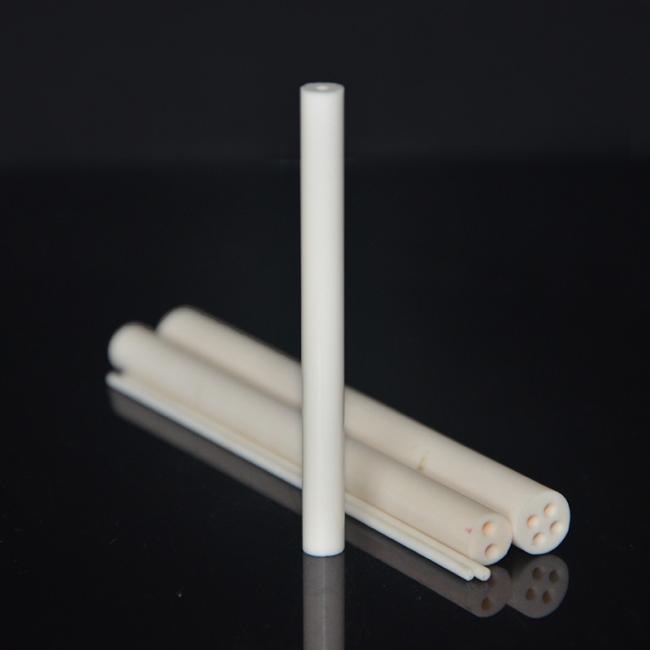

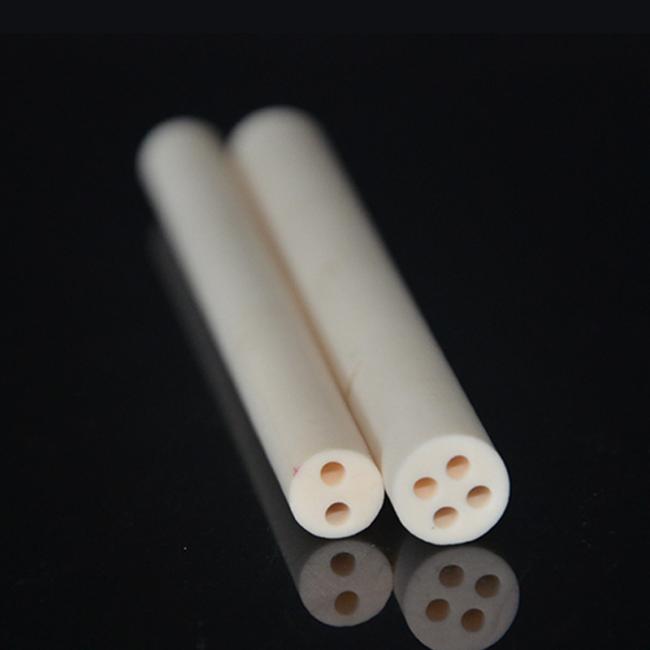

Multihole Insulating 99% Alumina Ceramic Protective Tube
Size:Customzied
Design:according to the customer’s drawing
MOQ:100pcs
Application:It commonly used as function and engineering ceramic components, widely used in electric power, metallurgy, mineral, coal, and chemical industry.
Features:
1) High hardness.
2) High heat resistance
3) Good wear resistance
4) High electrical resistivity
5) High corrosion resistance
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
