High Toughness Smooth Zirconia Ceramic Yttria Stabilized Zro2 Ceramic Tube
Price:
USD 0.5-5/PCS
MOQ:
100 pcs
Delivery Time:
15-20DAYS
Brand:
MH
Product Description

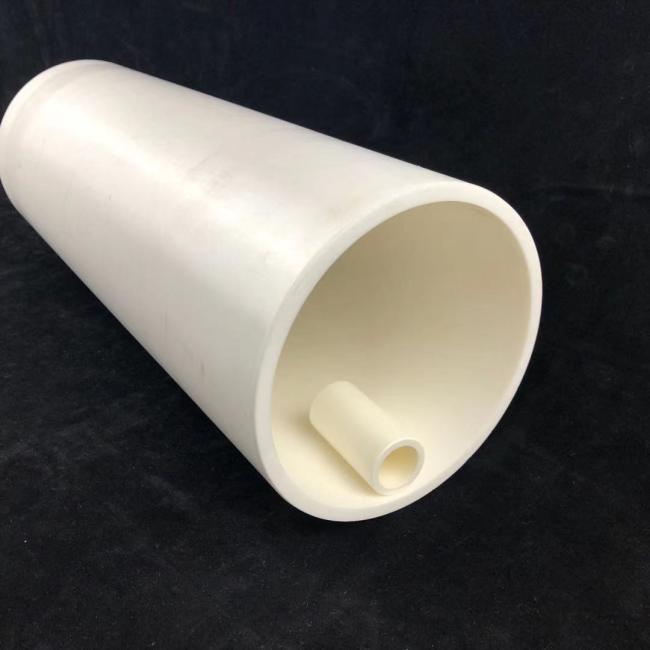

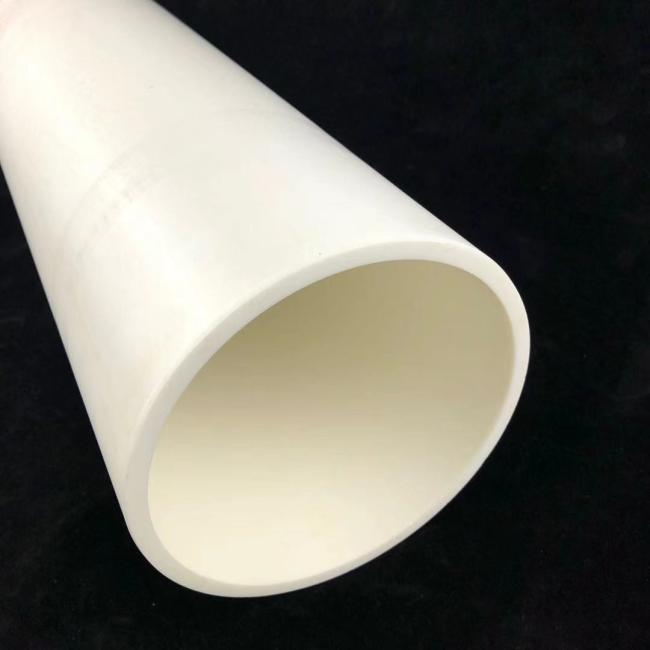

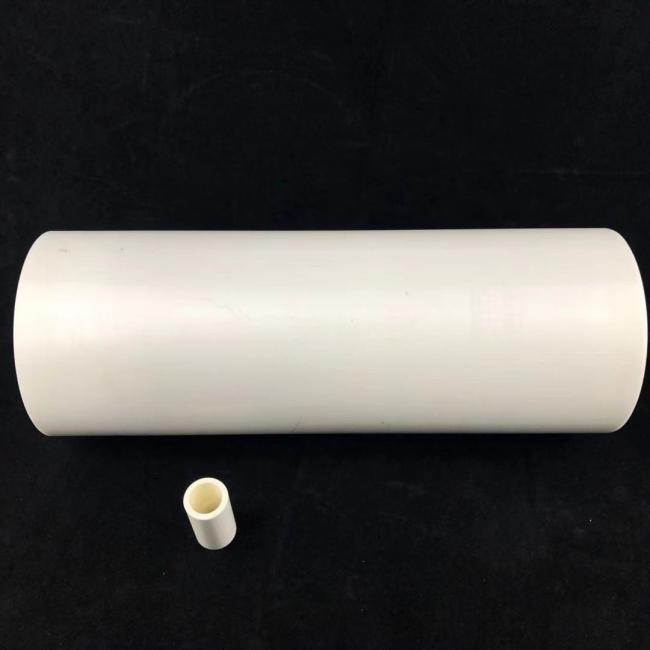

Smooth Yttria stabilized ZrO2 zirconia ceramic tube
Advantage
1 High hardness
2 High toughness
3 good Corrosion resistance
4 Low friction coefficient
5 good wear resistance
Zirconia ceramic are widely used in Welding pins, Positioning tools, Machine components including shaft, plunger, high-pressure cleaning machines, sealing structure, auto mobile industry, oil drilling equipment, insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity.
| Properties | Unit | Steatite ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic |
| Density | g/cm³ | 2.8 | 3.6 | 3.8 | 5.6 |
| Flexural strength | Mpa | 145 | 300 | 300 | 354 |
| Max Working Temperature | ℃ | 1100 | 1400 | 1600 | 1400 |
| Sintering temperature | ℃ | 1350 | 1700 | 1750 | 1550 |
| Heat resistance | T(℃) | 200 | 220 | 200 | 350 |
| Hardness | Gpa | 5.7 | 7 | 10.7 | 12.3 |
| Elastic modulus | Gpa | 120 | 275 | 320 | 205 |
| Poissons ratio | - | 0.21 | 0.22 | 0.22 | 0.30 |
| Linear expansion coefficient | x 10-6/℃ | 7.9 | 7.1 | 7.8 | 9 |
| Insulation breakdown Intensity | KT/mm | 10 | 16 | 18 | 15 |
| Thermal conductivity | w/(m.k) | 2.5 | 20 | 25 | 2.5 |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | 0.4 |
