200G OEO Converter DWDM Muxponder Multirate Quad For WDM System

Price Negotiable

Price: Negotiable

MOQ: 1pc

Delivery Time: 3-5days

Brand: Iseelink

Product Description

200G Muxponder Multi-Rate Quad Transponder OEO Card for WDM System

200G OTU card launched by Shenzhen ISEELINK Communication Technology Co. ,Lid. supports two 100G service access, adopts advanced technologies such as PDM-QPSK modulation and coherent reception, and overcomes the OSNR requirements, CD tolerance, and PMD tolerance of high-speed transmission systems. And the nonlinear physical effects of transmission, such as 200G service 1200 km or more of non-electrical relay transmission, and the line side interface supports C-band 96-wave (50 GHz) adjustable.

Product Features

Support single channel 200Gbps
Client side : 2x QSFP28 module
Line side: CFP2 200Gbps coherent module;
Ultra-long-distance transmission: FEC technology can be used to achieve 1500km transmission without regeneration
Large dispersion tolerance: 40000ps.nm
Support port loopback test
Support 80-channel wavelength tunable

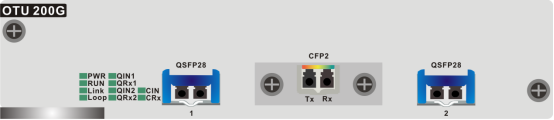

Product Diagram

Functional Structure

Product Application

Media conversion
Signal to repeat
Lambda conversion

Product Specification

Function	Note
Interface	Client-side interface: 2 QSFP28 hot-pluggable WDM-side interface: 1 CFP2 hot-pluggable, coherent PDM-QPSK
Line mode	Support one 200G service transmission, transform two 100G service optical signal into one DWDM standard wavelength optical signal
Relay mode	Support 200G wavelength electrical relay
Support service type	100GE OTU4
WDM technology	Support DWDM: C band 50GHz 96 wavelengths adjustable
FEC technology	Support SDFEC
Occupied slot number	Support OSP3800 series chassis, occupy 2 slots,(1U)
Network management function	Support real time monitoring of the port working state, including: transmitting optical power and receiving optical power, temperature, etc. l Support port loopback and port shutdown
Max power consumption	50W (including transceiver)
MTBF	＞100000 hours

OSP3800 series including cards as below

NMS management card	100G QSFP28 to CFP transponder	2xQSFP28 to CFP2 200G Muxponder
100G Muxponder:QSFP28 ↔4xSFP28	40G&100G OEO:6*QSFP28	SFP28 25G Quad transponder
SFP+ Multi-Rate Quad transponder	Redundant Multi-Rate Dual transponder	EDFA Optical Amplifiers
Bidi EDFA Optical Amplifiers	16ch DWDM MUX/DEMUX	40ch DWDM MUX/DEMUX(AAWG)
OLP Optical Line Protector	DWDM Passive Optical Add/Drop Multiplexers	/
