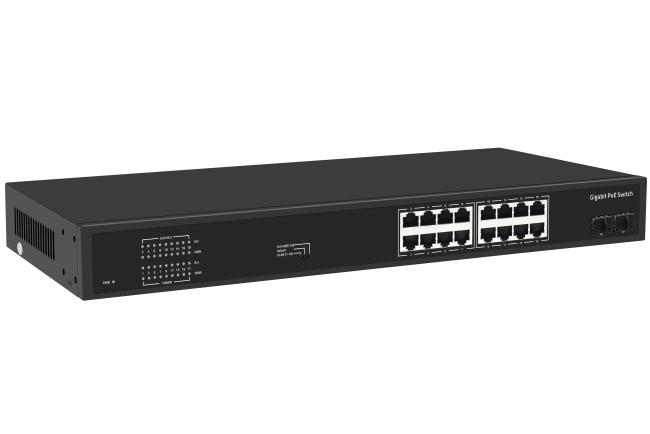

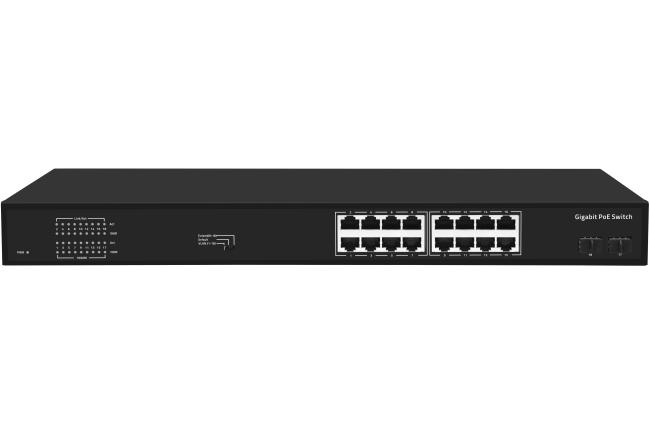

18 Port POE Ethernet Switch Full Gigabit 12V 10/100/1000M
18Port Full Gigabit 10/100/1000M PoE Fiber Switch
Features
- 16*10/100/1000M POE ports +2* Gigabit SFP Uplink Port；
- Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab ,IEEE802.3z IEEE802.3x standards；
- Ethernet port supports 10/100/1000M adaptive；
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard；
- Support port auto flip (Auto MDI/MDIX)；
- Automatically supplied to adaptive devices；
- Panel indicator monitoring status and help failure analysis；
- Support for VLAN mode, Default mode and Extend mode；
- 1 U rack installation
Specifications
| I/O Interface | |
| Power | Input: AC 100-240V, 50/60Hz |
| Ethernet |
16 *10/100/1000M PoE Port 2* Gigabit SFP Uplink Port |
| Chip solution | RTL8238B |
| Performance | |
| Switching Capacity | 36Gbps |
| Throughput | 26.784Mpps |
| Packet Buffer | 4Mbit |
| MAC Address | 8K |
| Jumbo Frame | 9.6Kbytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 hour |
| Standard | |
| Network protocol |
IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3z(1000Base-FX) IEEE802.3x (Flow control)
|
|
PoE Protocol
|
IEEE802.3af (15.4W) IEEE802.3at (30W) |
|
Network Medium
|
10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) |
| Optical Media |
Multimode fiber : 50/125, 62.5/125, 100/140μm Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm |
| Protection | |
| Security Certificate | CE,FCC,RoHS |
| Environment | |
| Working Environment |
Working Temperature:-10~50°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~95%,non-condensing |
| Indication | |
| LED Indicators | PWR(power supply),1-18 ACT(Link&Data),1-18 1000M(Link) |
| PWR |
Lighting:Powered Un-Light:No Power |
| 1-18 ACT(Link&Data) |
Lighting:Connecting Flashing:Data Transmit Un-Light:Disconnect |
| 1-18 1000M(Link) |
Lighting:1000M Un-Light:10/100M |
| DIP Switch | VLAN ,Default ,Extend |
| VLAN | Port isolation mode. In this mode, the PoE ports (1-16) of the switch cannot communicate with each other, and can only communicate with the UP-link port. |
| Default | Normal mode, all port can communicate with each other, the transmission distance is within 100 meters |
| Extend | Link extension mode, 9-16 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M |
| Mechanical | |
| Structure Size |
Product Dimension : 440*204*44mm Package Dimension : 500*290*85mm N.W:2.73Kg G.W:3.30kg |
| Packing Info |
Carton MEAS:520*445*310mm Packing Qty:5 units Packing Weight:17.5KG |
| Power Voltage |
Input Voltage :AC 100-240 V Power supply:52V5.76A |
| power |
Product power: maximum 15W POE power: maximum 280W |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, Brackets 1 pair |
