2 Way Wilkinson Power Splitter SMA Female Wideband Power Divider
Price:
negotiation
MOQ:
5pcs
Delivery Time:
depends on your quantity
Brand:
Vinncom
Product Description

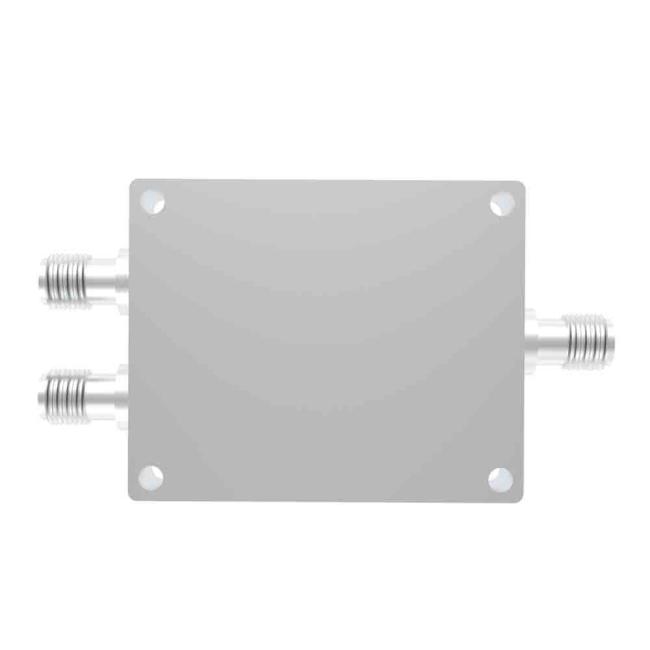

1000-3000MHz 2 Way Power Splitter Wilkinson Power Divider SMA Female Connector
- Good VSWR
- High isolation
- Good Flatness
| Part Number | VN-PD-1000-3000-OS2 |
| Operating Frequency ( MHz ) | 1000-3000 |
|
Impedance( Ohm ) |
50 |
| Input VSWR | ≤1.20 |
| Output VSWR | ≤1.20 |
| Insertion loss | ≤0.5 |
| Average Power (Watt max.) | 30W max. / 2W max. as combiner |
|
Isolation(dB) |
≥20 |
|
Amplitude Balance(dB) |
±0.2 |
| Phase Balance | ±3° |
|
Operating Temperature( ℃ ) |
-35 ~ + 75c |
|
Interface |
SMA Female |

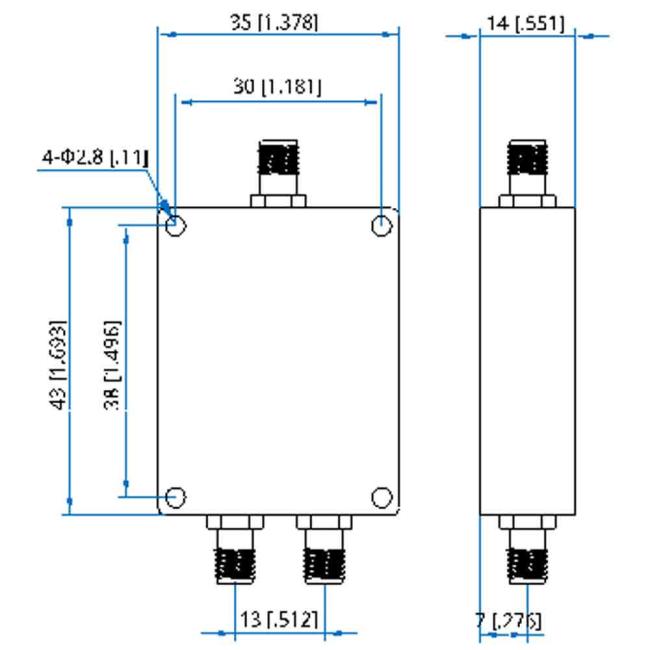

| Size | 43*35*14mm |
| Weight | 48g |
|
Dimension Tolerance(mm) |
±0.5 |
|
Mounting |
4-Φ2.8mm through-hole |
