Truck Refrigeration Unit for cooling transportation box volume ≤14m³ HT-380
Price:
Negotiable
MOQ:
1SET
Delivery Time:
Negotiable
Brand:
Yinhuasheng/OEM
Product Description
Truck Refrigeration Unit for Cooling Transportation Box Volume ≤14m³ HT-380
The HT-380 Lorry Refrigeration Unit is an ideal solution for refrigerated trucks, designed for maximum performance and reliability. Featuring a white finish and 220V/50Hz voltage specification, this unit combines advanced engineering with efficient cooling technology. The evaporator coil is optimized for maximum efficiency, while the R134a refrigerant ensures reliable operation and peak cooling performance.
Technical Parameters
| Parameter | Specification |
|---|---|
| Unit Model | HT-380 |
| Applicable Temperature | -25℃ ~ +25℃ |
| Box Volume | ≤14m³ |
| Cooling Capacity |
0℃
3510 W
-18℃
1970 W
|
| Compressor |
Model
5H14
CC
138 CC
Lubricating Oil
PAG 68
|
| Evaporator |
Material
Inner grooved copper tube
Number of Fans
2 PCS
|
| Condenser |
Material
Parallel flow condenser
Number of Fans
2 PCS
|
| Refrigerant | R404a |
| Refrigerant Charge | 1.3KG |
| Box Temperature Adjustment | Electronic digital display |
| Safety Protection | High and low pressure switch |
| Defrosting | Hot gas defrost automatically |
| Weight & Dimensions |
Evaporator Weight
17 KG
Condenser Weight
26 KG
Evaporator Dimensions
1010×580×210 mm
Condenser Dimensions
1040×470×310 mm
|
| Drive Model | Non-independent engine driven |

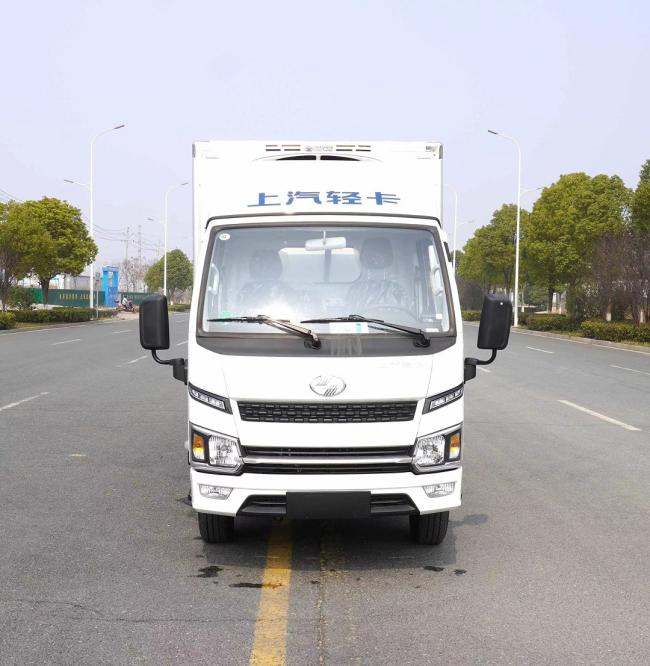

Installation Pictures
