China IFR14500 3.2V 600mAh lifepo4 battery for sale

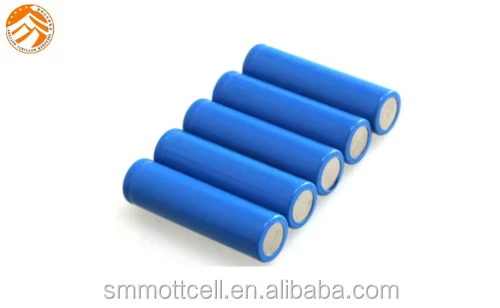

IFR14500 3.2V 600mAh lifepo4 battery

Price Negotiable

Price: $0.50/pieces >=1000 pieces

MOQ: 1000 pieces

Delivery Time: Negotiable

Brand: Mottcell

Product Description

UL UN38.3 ISO ROHS CE MSDS approved IFR14500 3.2V lifepo4 battery 600mAh batteries

Specification

No.	Item	General Parameter
1	Rated Capacity	Typical	600mAh
		Minimum	585mAh
2	Nominal Voltage	3.2V
3	Voltage at end of Dischargr	2.0V
4	Charging at end of Voltage	3.65V
5	Internal Impedance	100mΩ
6	Standard charge	Constant Current 0.2C5A Constant Voltage 3.65V 0.01C5A cut-off
7	Standard discharge	Constant Current 0.2C5A end Voltage 2.0V
8	Fast charge	Constant Current 1C5A Constant Voltage 3.65V 0.01C5A cut-off
9	Fast discharge	Constant Current 1C5A end Voltage 2.0V
10	Maximum Continuous Charge Current	1C5A
11	Maximum Continuous Discharge Current	3C5A
12	Operation Temperature Range	Charge:0~45°C
		Discharge:-10~60°C
13	Storage Temperature Range	Less than 1 year:-20~25°C
		Less then 3 months:-20~40°C
14	Weight	Approx:18 g
15	Pack Dimension	Height:(h):50.3mm)
		Width:(d):14.2mm)

Charge-discharge Curve

Advantage

High voltage: 3.2v/cell

Energy density : Weight density, its weight 150mAh/g

High -efficient charge : Charge and discharge efficiency is more than 99.8%

Low self-discharge : After fully charged with 28 days, the battery self- discharge is less than 5%

No memory effect: Whether the battery is fully charged or discharged power, it assure can be charge and discharge of 100%.

High power discharge : The battery can continue to 15C or higher-current discharge.

Good of high temperature feature: Range of 80c high temperature can discharge high capacity than normal temperature.

Environmental Protection

Battery does not contain any heavy metal material and harmful chemicals.

High Security

Basically solves the security issues of LiCoO2 battery and LiMnO2 battery (forcefully impact will cause battery to explode ). LiPO4 battery is the safest in all kinds of Li-ion batteries.

Application

Mainly used for power tools, RC toys, small medical instruments, solar energy system, solar light, emergency light, lighting, communication equipment, UPS, small portable equipment : interphone,portable printer, small household cleaner etc.
