Product Description:

ADDA Digital Video Transmission Receiver and Transmitter

ADDA is a 5.8G digital video transmission receiver and transmitter. Its input and output are CVBS signals, compatible with various display terminals and analog camera inputs (receiver compatible with Fatshark goggles, SKYZONE goggles, DJI goggles V1/V2, analog displays, and can simultaneously output video signals to an external DVR; camera compatibility includes many analog FPV video transmission cameras on the market). It features low latency and strong anti-interference capabilities, and is widely used in FPV drone flights, outdoor recreation, and professional aerial photography.

Item Specifications

Input Voltage: DC 5V~28V (2~6S)

Number of Channels: 10CH / 0 is a random channel

Frequency Range: 5180-5835MHz

Receiver Sensitivity: -95dBm

Transmit Power: 250mW

Image Delay: As low as 50MS

Antenna Impedance: 50 Ohms

Antenna Interface: Receiver SMA (external thread, internal hole) / Transmitter IPX snap-on

Video Standard: PAL/NTSC

Video Signal Format: CVBS

Operating Temperature: -10℃~+70℃

Receiver Dimensions: 70*42.6*20.3MM (excluding antenna)

Transmitter Dimensions: 38*28*9.2MM (excluding antenna)

Weight: RX: 47.5g TX: 13.5g

Detailed pictures:

Receiver Interface Function Description

TF Card Slot: Currently for software upgrades only. Cannot store data.

DC Power Supply Port: 5-28VIN

Headphone Jack: Video output interface, for direct connection to video glasses with headphone jacks.

6-PIN 1.0MM Cable Connector: Connection order: GND / AV out / GND / 5-28VIN / UART-RX / UART-TX

Antenna SMA: Signal input port with external pressure inner hole.

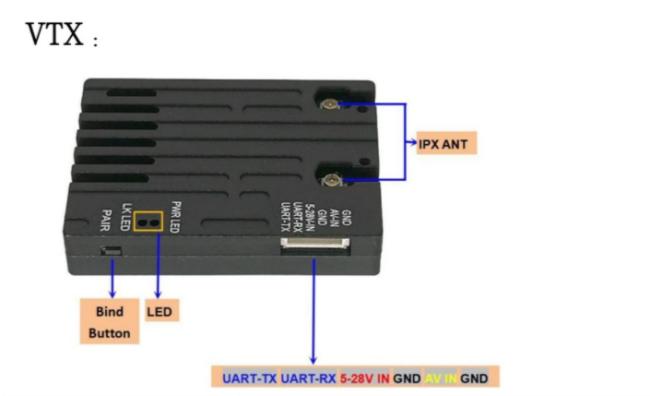

Transmitter Interface Function Description

6-PIN 1.0MM Connector: Connection sequence: GND / AV NI / GND / 5-28V IN / UART-RX / UART-TX

Antenna: IPX connector

PWRLED: Power indicator

LKLED: Pairing indicator
