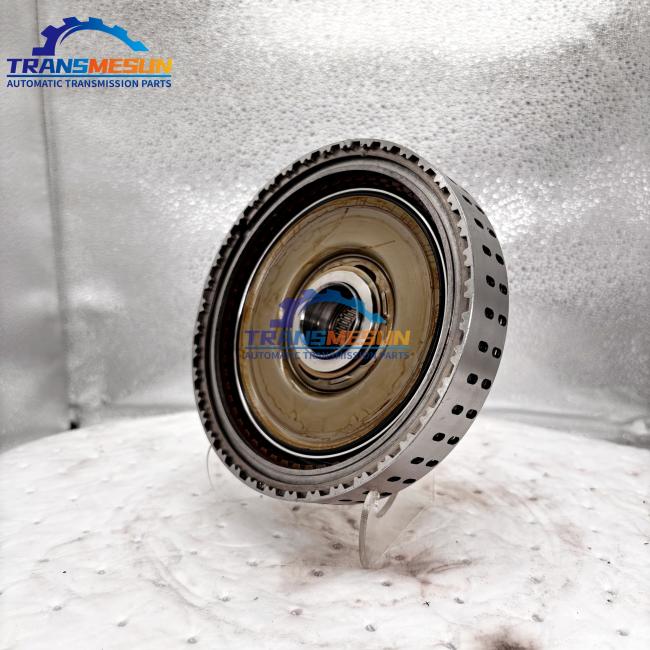

09G TF-60SN CVT automatic transmission K1 drum clutch assembly
Price:
0-1000
MOQ:
1
Delivery Time:
5-8 work day
Brand:
Volkswagen Passat
Product Description
Key Specifications & Analysis
-
Function: 1st/3rd/5th gear engagement in VW/Audi transverse 6-speed applications.
-
Design:
-
3-piston clutch pack (5 friction plates, 6 steel plates)
-
Drum material: Hardened aluminum (Si-Cu alloy) with anti-wear coating
-
-
Critical Tolerances:
-
Plate clearance: 1.2–1.6mm (new), >2.0mm requires replacement
-
Piston stroke: 2.8–3.2mm
-
-
Failure Modes:
-
Seal leaks (causing delayed engagement)
-
Drum spline wear (>0.2mm play leads to shudder)
-
Overheating (if ATF degraded, causing plate glazing)
-
Note: Uses VW G 055 025 A2 fluid; common failure in high-mileage units.
