AVS Automotive PVC Insulated Copper Wire and Cable Customized 1200A
Customized AVS Automotive PVC Insulated Copper Wire and Cable
AV Automotive PVC Insulated Copper Wire And Cable
AV AVS Automotive Wire
Application:
AV type Automotive PVC insulated single-Core cable is used for low voltage circuits in automobiles, vehicles and motorcycles.
•Wires used in low voltage circuits in automobiles (vechicles and motorcycles).
•General purpose wires for automobiles ; they are used In low voltage circuits such as starting, charging, lighting, signal and instrument panel circuits. Standard : JASO D 611 85°C
Product Description:
•Stranded Copper conductor 0.3 – 5.0 SQMM
| Product Information |
| Conductor | Cu-ETP1 according to JIS C3102Cu-ETP1 according to JIS C3102 |
| Core | Single core |
| Temp | –40 °C to +85 °C |
| Insulation | PVC |
| Test voltage | 60V |
| Standard Compliance | JIS C 3406 |
| Sheath colour | Red, Black, White, etc. |
| Packaging | Meter marking |
AV/AVF
PVC automotive cable
Temperature Rating:
–40 °C to +85 °C(3000 hours)Construction / Materials
1. Conductor Soft-annealed electrolytic copper Cu-ETP1 according to D 609-90, bare. Conductor construction according to JIS C 3102/JIS C3406.
2. Insulation PVC (Polyvinyl chloride), lead free.Insulation material according to JIS C3406.
| Nominal cross-section | No. of strands | Dia. Single Wire Max. | Dia. Conductor Max. | Elec. Resistance at 20 °C | Wall Thickness | O.D. Min | O.D. Max |
|---|---|---|---|---|---|---|---|
| mm2 | mm | Mm | mΩ/m | mm | mm | mm | |
| 0.5 | 7 | 0.32 | 1.0 | 32.7 | 0.6 | 2.2 | 2.4 |
| 0.85 | 11 | 0.32 | 1.2 | 20.8 | 0.6 | 2.4 | 2.6 |
| 1.25 | 16 | 0.32 | 1.5 | 14.3 | 0.6 | 2.7 | 2.9 |
| 2 | 26 | 0.32 | 1.9 | 8.81 | 0.6 | 3.1 | 3.4 |
| 3 | 41 | 0.32 | 2.4 | 5.59 | 0.7 | 3.8 | 4.1 |
| 5 | 65 | 0.32 | 3.0 | 3.52 | 0.8 | 4.6 | 4.9 |
| 8 | 50 | 0.45 | 3.7 | 2.32 | 0.9 | 5.5 | 5.8 |
| 10 | 63 | 0.45 | 4.5 | 1.84 | 1.0 | 6.5 | 6.9 |
| 15 | 84 | 0.45 | 4.8 | 1.38 | 1.1 | 7.0 | 7.4 |
| 0.5f | 20 | 0.18 | 1.0 | 36.7 | 0.6 | 2.2 | 2.4 |
| 0.75f | 30 | 0.18 | 1.2 | 24.4 | 0.6 | 2.4 | 2.6 |
| 1.25f | 50 | 0.18 | 1.5 | 14.7 | 0.6 | 2.7 | 2.9 |
| 2f | 37 | 0.26 | 1.8 | 9.5 | 0.6 | 3.0 | 3.4 |
| 3f | 61 | 0.26 | 2.4 | 5.76 | 0.7 | 3.8 | 4.1 |
AVS / AVSF
PVC automotive cable
Temperature Rating:
–40 °C to +85 °C(3000 hours)Construction / Materials
1. Conductor Soft-annealed electrolytic copper Cu-ETP1 according to D 609-90, bare. Conductor construction according to JASO D 611-94.
2. Insulation PVC (Polyvinyl chloride), lead free.Insulation material according to JASO D 611-94.
| Nominal cross-section | No. of strands | Dia. Single Wire Max. | Dia. Conductor Max. | Elec. Resistance at 20 °C | Wall Thickness | O.D. Min | O.D. Max |
|---|---|---|---|---|---|---|---|
| mm2 | mm | Mm | mΩ/m | mm | mm | mm | |
| 0.3 | 7 | 0.26 | 0.8 | 50.2 | 0.6 | 1.8 | 1.9 |
| 0.5 | 7 | 0.32 | 1.0 | 32.7 | 0.5 | 2.0 | 2.1 |
| 0.85 | 11 | 0.32 | 1.2 | 20.8 | 0.5 | 2.2 | 2.3 |
| 1.25 | 16 | 0.32 | 1.5 | 14.3 | 0.5 | 2.5 | 2.6 |
| 2 | 26 | 0.32 | 1.9 | 8.81 | 0.5 | 2.9 | 3.1 |
| 3 | 41 | 0.32 | 2.4 | 5.59 | 0.6 | 3.6 | 308 |
| 5 | 65 | 0.32 | 3.0 | 3.52 | 0.7 | 4.4 | 4.6 |
| 0.3f | 15 | 0.18 | 0.8 | 48.9 | 0.5 | 1.8 | 1.9 |
| 0.5f | 20 | 0.18 | 1.0 | 36.7 | 0.5 | 2.0 | 2.1 |
| 0.75f | 30 | 0.18 | 1.2 | 24.4 | 0.5 | 2.2 | 2.3 |
| 1.25f | 50 | 0.18 | 1.5 | 14.7 | 0.5 | 2.5 | 2.6 |
| 2f | 37 | 0.26 | 1.8 | 9.5 | 0.5 | 2.9 | 3.1 |
AVSS / AVSSF
PVC automotive cable with thin wall insulation
Temperature Rating:
–40 °C to +85 °C(3000 hours)Construction / Materials
1. Conductor Soft-annealed electrolytic copper Cu-ETP1 according to JIS C 3102, bare. Conductor construction according to JASO D 611-94.
2. Insulation PVC (Polyvinyl chloride), lead free.Insulation material according to JASO D 611-94.
| Nominal cross-section | No. of strands | Dia. Single Wire Max. | Dia. Conductor Max. | Elec. Resistance at 20 °C | Wall Thickness | O.D. Min | O.D. Max |
|---|---|---|---|---|---|---|---|
| mm2 | mm | Mm | mΩ/m | mm | mm | mm | |
| 0.3 | 7 | 0.26 | 0.8 | 50.2 | 0.3 | 1.4 | 1.5 |
| 0.5 | 7 | 0.32 | 1.0 | 32.7 | 0.3 | 1.6 | 1.7 |
| 0.85 | 19 | 0.24 | 1.2 | 21.7 | 0.3 | 1.8 | 1.9 |
| 1.25 | 19 | 0.29 | 1.5 | 14.9 | 0.3 | 2.1 | 2.2 |
| 2 | 37 | 0.26 | 1.8 | 9.5 | 0.4 | 2.6 | 2.7 |
| 0.3f | 19 | 0.16 | 0.8 | 48.9 | 0.3 | 1.4 | 1.5 |
| 0.5f | 19 | 0.19 | 1.0 | 34.6 | 0.3 | 1.6 | 1.7 |
| 0.75f | 19 | 0.23 | 1.2 | 23.6 | 0.3 | 1.8 | 1.9 |
| 1.25f | 37 | 0.21 | 1.5 | 14.6 | 0.3 | 2.1 | 2.2 |
We have a strong R&D team,6 people in the engineering department,they all have more than 10 years of technology and experience in the field of wire and cable,professional focus on wire and cable solutions to ensure that we provide the most accurate and effective solutions to our customers.The quality control department has 10 people,from inxoming materials to shipping,esch step is strictly supervised to ensure that the products reach the customer's hands are 100% good.The production staff has more than 50 people, who are experienced in prodution.

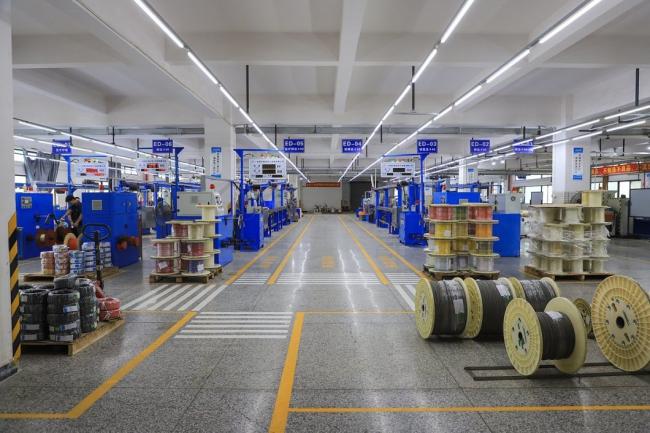

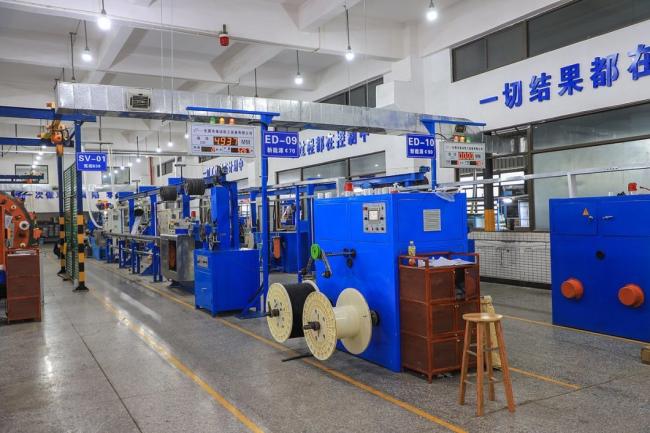

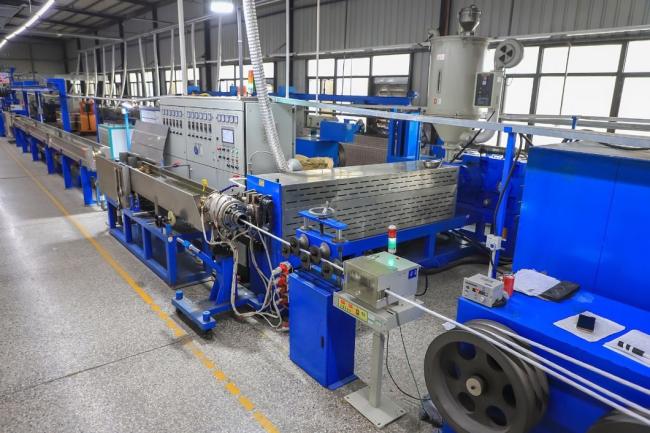

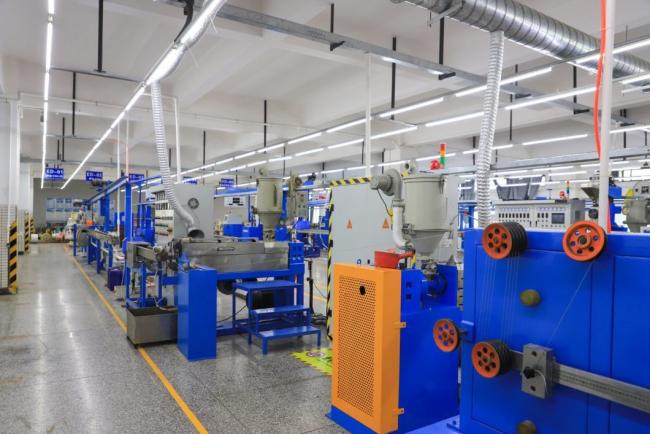

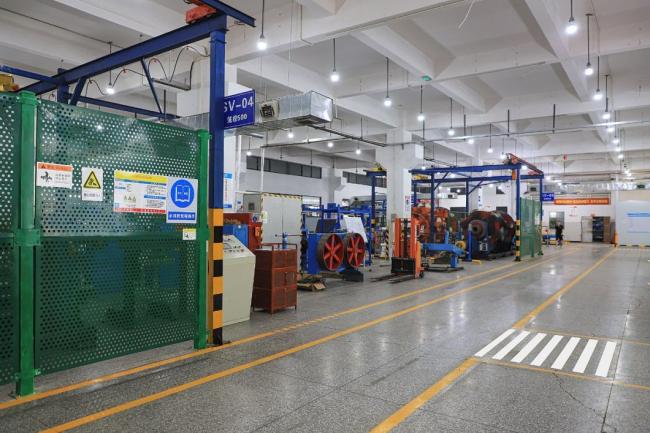

PRODUCTION WORKSHOP

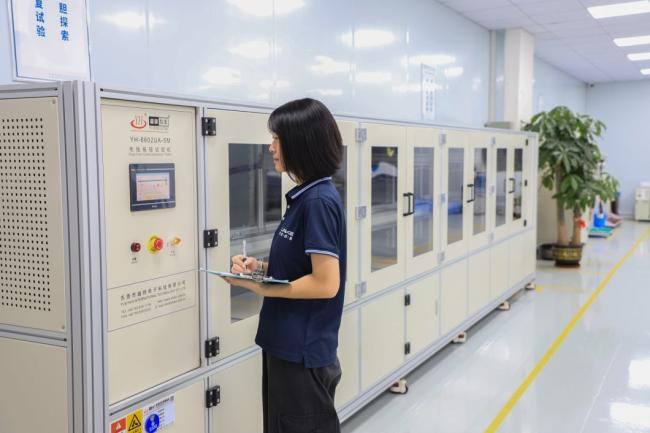

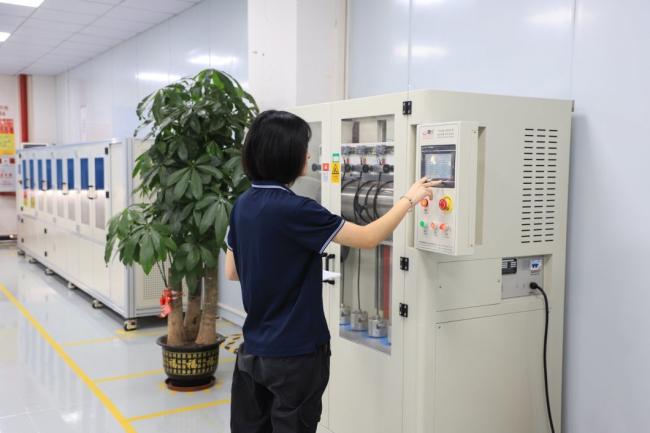

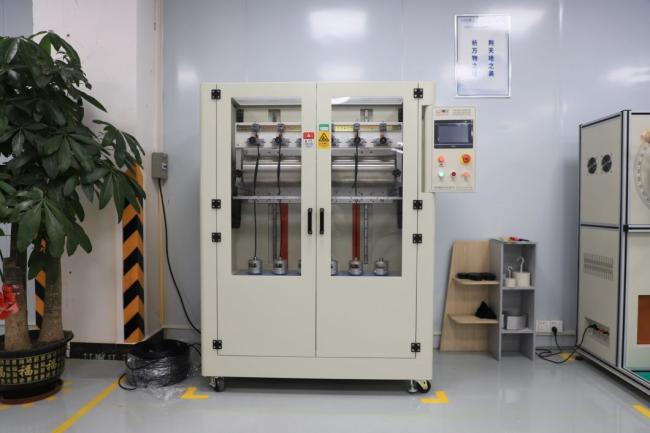

CABLE TESTING LABORATORY
| Single-conductor, thermoplastic insulation | |||||||
| 1007 | 1330 | 1333 | 1591 | 1723 | 10064 | 10369 | |
| 1015 | 1331 | 1569 | 1592 | 1901 | 10070 | 10483 | |
| 1185 | 1332 | 1577 | 1672 | 10012 | 10269 | ||
| Multiple-conductor, thermoplastic insulation | |||||||
| 2095 | 2129 | 2468 | 2586 | 2725 | 20233 | 20280 | 20963 |
| 2103 | 2463 | 2517 | 2587 | 2835 | 20276 | 20549 | 21198 |
| 2104 | 2464 | 2576 | 2661 | 2919 | 20279 | 20886 | 21664 |
| Single-conductor, thermoset insulation | |||||||
| 3075 | 3173 | 3320 | 3386 | 3530 | 3689 | 30005 | |
| 3123 | 3212 | 3321 | 3398 | 3577 | 3702 | ||
| 3132 | 3266 | 3331 | 3512 | 3644 | 3817 | ||
| 3135 | 3271 | 3385 | 3529 | 3674 | 3886 | ||
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last. Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
For More Information, Please do feel free to contact us!
