10kV Cable Sheath Fault Locator for Urban Network Transformation
Price:
Price Negotiable
MOQ:
1 Unit
Delivery Time:
5-8 work days
Brand:
XZH TEST
Product Description
Chinese National Standard Compliant Cable Sheath Fault Locator for Urban Network Transformation
With the full deployment of urban network transformation projects, many power supply bureaus, construction teams, and design units are encountering 110kV XLPE cables for the first time. Due to time constraints and limited experience, many cables fail the withstand voltage test (10kV/1min).
Most outer sheaths use HDPE material, which passes factory DC 25kV/5min withstand voltage tests with leakage currents as low as tens of μA. Post-installation defects typically result from external damage during laying, including soil filling and cover issues. Operational defects may include termite damage, water ingress in grounding boxes, moisture penetration at grounding wire bifurcations, or insulation resistance reduction.
Our high-voltage cable outer sheath fault detector (output voltage ≤10kV) complies with Chinese national standard GB50150-2006 for cable sheath testing, including handover tests, preventive tests for cross-interconnect systems, and fault location. It quickly and accurately identifies grounding faults and leakage currents in 10kV-500kV single-core and three-core cables, while performing 5kV-10kV DC withstand voltage tests (1 minute) on HDPE and PVC sheaths.
Key Applications
- Essential for maintenance of 10kV-500kV cable systems
- Critical tool for ultra-high voltage cable engineering companies
- Valuable for power transmission and transformation projects
Main Features
- Over-current, overvoltage, and overheating automatic protection
- Zero-start protection for enhanced safety
- Self-discharge design automatically zeros high-voltage output

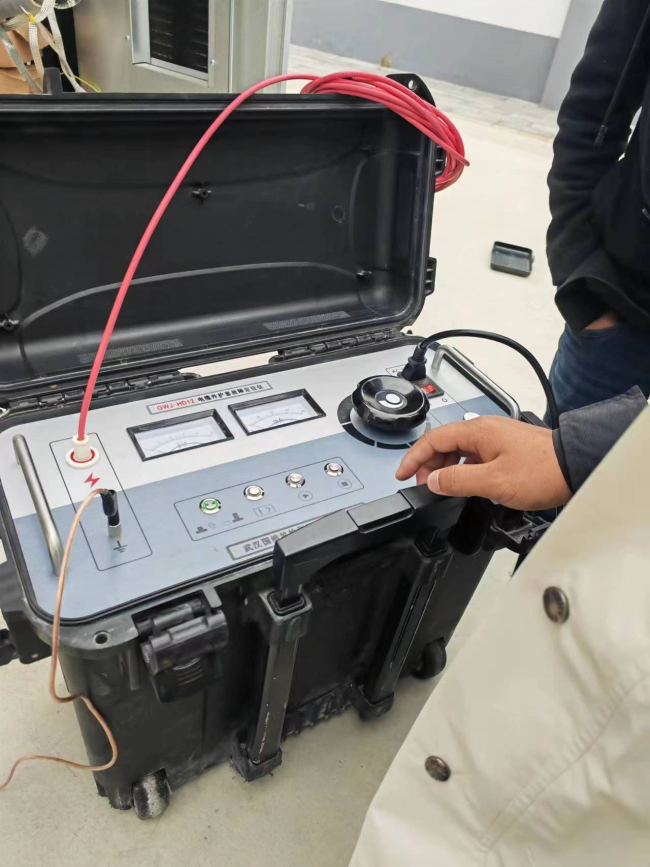

- Dual-pointer current/voltage meter for clear readings
- One-button switching between location and withstand voltage modes
- No test range blind spots
- Adjustable receiver sensitivity for precise location
- Over-current protection switch for both testing modes
Technical Specifications
| Input Voltage | 220V (±10%), 50Hz (±2Hz) |
|---|---|
| Output Voltage | 0-10kV (square wave), adjustable |
| Output Current | 0-200mA |
| Output Capacity | 2kVA |
| Frequency Adjustment | 0.2Hz-5Hz (adjustable range) |
