Mechanical Suspension U-shaped Seat Bridge Crane Seat Pilot Teaching Simulation Seat
Mechanical Suspension U-shaped Seat Bridge Crane Seat pilot Teaching Simulation
Seat Detials
|
Product Name
|
Mechanical Suspension U-shaped Seat Bridge Crane Seat pilot Teaching Simulation Seat |
|
Place of Origin
|
Shaanxi China
|
|
Product Model
|
M801-27
|
|

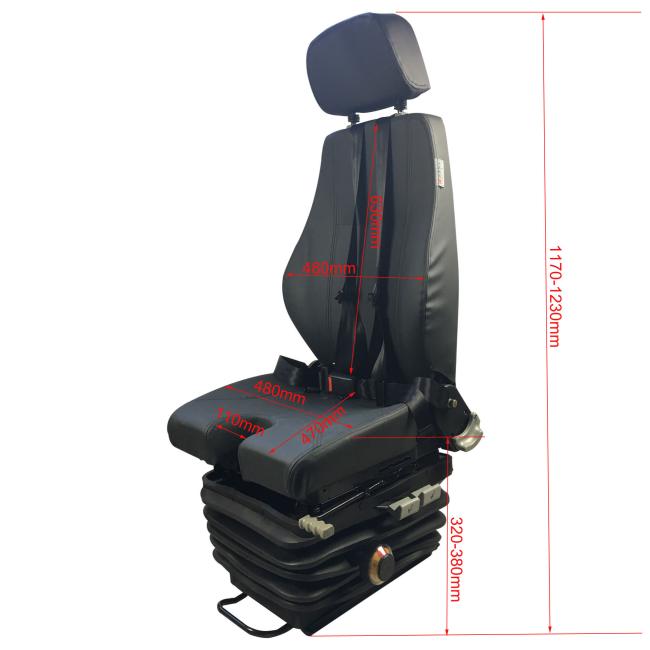

Product Size
|
500*570*(1170-1230)mm
|
|
Product Material
|
PU/Leather/Fabric
|
|
Product Color
|
Black/customized
|
|
Seat Back Size
|
480*630 mm
|
|
Seat Cushion Size
|
480*470*(320-380)mm
|
|
Head Restraint Adjustment
|
3 gears adjustable, 25mm for each gear
|
|
Backrest Adjustment
|
80-120°
|
|
Horizontal Regulation
|
Front 105mm, rear 120mm 23 adjustable
|
|
Weight Adjustment
|
40-130 kg
|
|
Bottom connecting hole spacing
|
Left and right 216mm* front and rear 295.5mm
|
|
High and low adjustment
|
Stroke 60mm
|
|
Product Features
|
Mechanical Suspension Damping Seat
|
Mechanical Suspension U-shaped Seat Bridge Crane Seat pilot Teaching
Simulation Seat Customizable:
1: Seat surface can be choose: PU leather, Fabric, Leather Etc.,
2: Fabric color and style Can be customized.
3: Optional accessories: headrest, armrest, safety belt (2, 3 or 4 point type), high seat box, front and
rear horizontal adjustment rail, height adjustment , ventilation or heating function, etc., the price
according to the option.
4: The general hole distance is commonly used: 216/240/260mm * 280/295.5mm before and after ,
or customized .
5: Seat adjustment function plastic handle position can be choose : left, right,or front
6: Mechanical weight adjustment position can be selected: left, right,or front
7.Backrest size can be choose 530/630mm

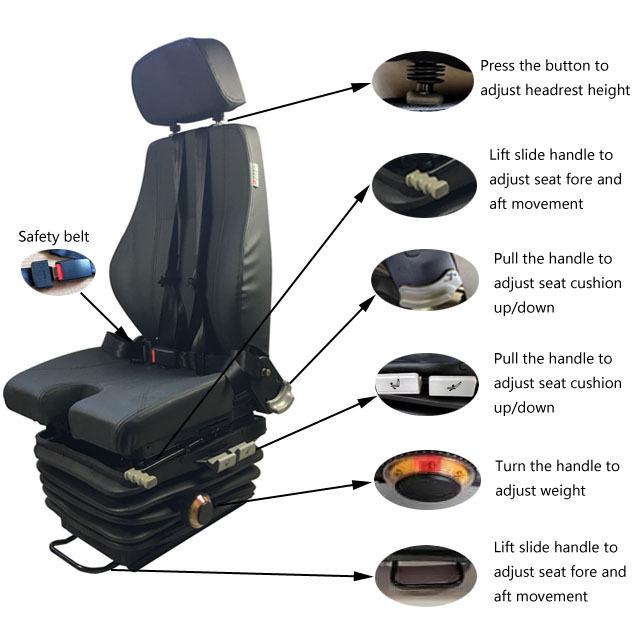

Mechanical Suspension U-shaped Seat Bridge Crane Seat pilot Teaching
Simulation Seat Functions
