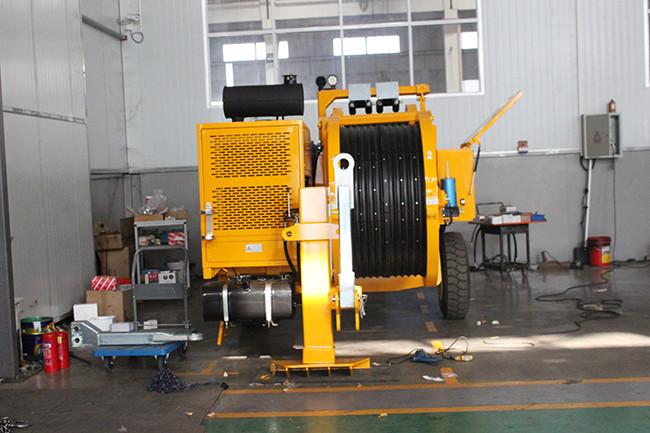

• The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains;
• besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Total weight

4500kg

Max conductor diameter

40mm

Bull-wheel diameter

1300mm

Overall dimension (length*width*height)

4300×2250×2700mm

Max intermittent tension

2x40kN

Max speed

5km/h

Max continuous tension

2x35kN

Max reverse pulling force

2x30kN

Speed at max tension

2.5km/h

Max reverse pulling speed

5km/h

Engine

Cummins

Main hydraulic valves

USA Sun / Italy ATOS

Main motor

German Rexroth/French Leduc

Speed reducer

German Rexroth / Italy Bonfiglioli

Diesel

77kw(103hp)

Electrical system

24V

Cooling system

water

• The machine can realize step less speed.

• The machine is provided with tension presetting system.

• Hydraulic dynamometers

• Grounding connection point

• Hydraulic oil cooling system

• Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

• Digital speed and meter counter

• Swivel guide rope roller

• 2 hydraulic conductor clamps for drum change operations (extra charge)

• Air brake system for the trailer (extra charge)

• Lighting system for the trailer
