Max Continuous Tension 30kN Cable Tensioners Hydraulic For Transmission Line
Max Continuous Tension 30kN Cable Tensioners Hydraulic For Transmission Line

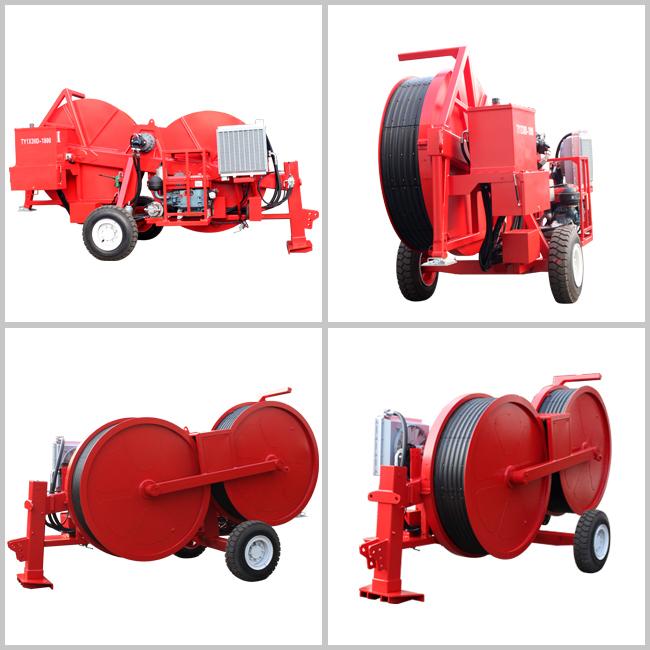

TY1x30D-1800 Hydraulic Tensioner
- The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance.
- The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.
- The hydraulic power unit provides the traction of conductors at both positive and negative directions.
|
Characteristics |
|
Bull-wheel diameter: 1800mm |
|
Groove number: 5 |
|
Max conductor diameter: 40mm |
|
Overall dimension (length*width*height): 5000*2000*2600mm |
|
Total weight: 4600kg |
|
Performance |
|
Max continuous tension: 30kN |
|
Max speed: 5km/h |
|
Max reverse pulling force: 20kN |
|
Speed at max tension: 2.5km/h |
|
Pull at max speed: 15kN |
|
Main configuration |
|
Engine: Changchai China |
|
Main motor: French Leduc |
|
Hydraulic valve: German Rexroth |
|
Hydraulic pump: German Concentric |
|
Hydraulic meter: German WIKA |
|
Speed reducer: German Rexroth / Italy Bonfiglioli
|
|
Engine |
|
Electrical system 12V |
|
Single cylinder diesel engine 18kw(25hp) |
|
Hydraulic Transmission |
|
The machine is provided with tension presetting system |
|
The machine can realize step less speed |
|
Configuration |
|
Hydraulic dynamometers |
|
Grounding connection point |
|
Hydraulic oil cooling system |
|
Additional Devices |
|
Air brake system for the trailer (extra charge) |
|
Swivel guide rope roller |
|
Trailer for towing at max speed of 15 km/h |
|
Hydraulic conductor clamps for drum change operations (extra charge) |
