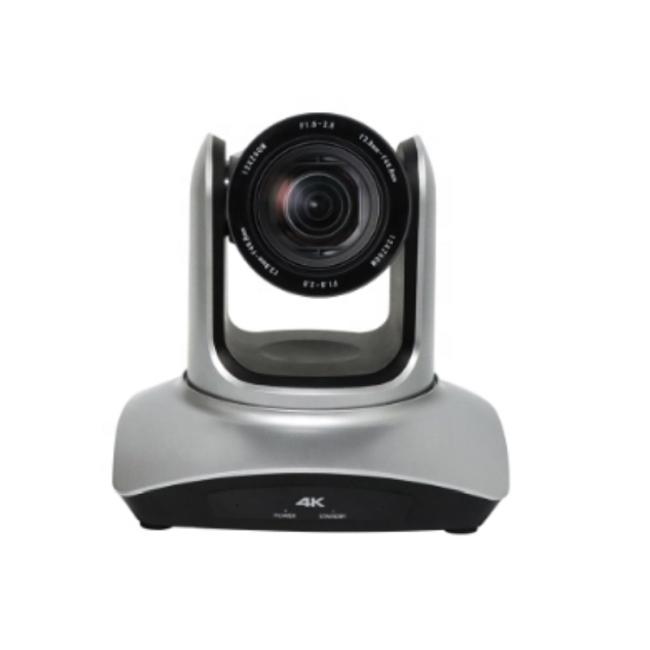

New Original USB PTZ Camera for Conference JT-UH40MF/40MH

Price Negotiable

Price: CN¥3,047.27/pieces >=2 pieces

MOQ: 2 pieces

Delivery Time: Negotiable

Product Description

Camera
Video Format	HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50
Image Sensor	SONY 1/2.8 " CMOS
Pixels	8.5 Megapixels , Effective Pixels 8.29 Megapixels
Scanning Method	Line by Line
Lens Focal Length	UH40MF: 12x optical zoom, f=4.1mm (wide angle) ~ 49.2mm (narrow angle)F1.8~F2.68 UH40MH: 20x optical zoom, f=5.33mm (wide angle) ~ 92.6mm (narrow angle) F1.55~F3.13
Horizontal Field of View	UH40MF:70.28°(W)~6.57°(T) UH40MH:55.8°(W)~3.2°(T)
Vertical Field of View	UH40MF:42.06°(W)~3.76°(T) UH40MH:32.2°(W)~1.8°(T)
Focus Method	Automatic / Manual
Shutter	1/25s ~ 1/10000s
Minimum Illumination	0.1 Lux @ (F1.8, AGC ON)
Exposure	Auto, Manual, Iris Priority, Shutter Priority, Brightness Priority
White Balance	Automatic, Indoor, Outdoor, Keyed, Automatic Tracking, Manual
Backlight Compensation	Support
Digital Noise Reduction	2D&3D Digital noise reduction
Signal-to-Noise Ratio	≥50dB
Pan/Tilt
Pan Range	±168°
Tilt Range	-30°~+90°
Pan Speed	1°~60°/s
Tilt Speed	1°~60°/s
Number of Preset Positions	The remote control can be set to 9, and the keyboard can be set to up to 200 preset positions.
Preset Position Accuracy	0.1°±10%
Flip	Support
USB
Protocol	UVC 1.1
Operating System	Window7 and above, MacOS, Linux, Android
Video Encoding Format	YUY2, MJPEG
Resolution	38402160, 25601440, 19201080, 1280720, 960540, 800600, 720576, 720480, 640480, 640360, 352288, 320240
Video Frame Rate	Up to 30
UVC PTZ control	Support

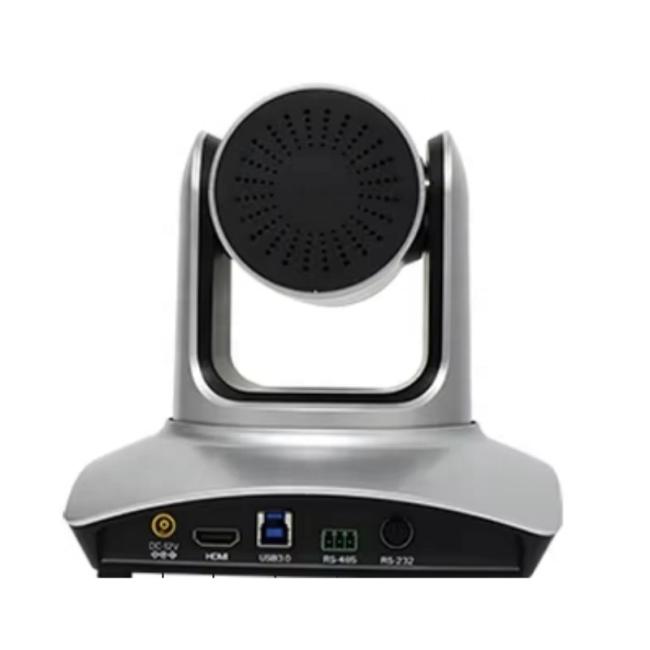

Input and Output Interface
HDMI Interface	1 way, HDMI: version 1.4
USB Interface	1 way, USB3.0, Type-B socket
Communication Interface	1 channel, RS232 IN: 8-pin small DIN, maximum distance 30 meters, VISCA/Pelco-D/Pelco-P protocol 1 channel, RS485 IN: 3-core Phoenix port, maximum distance 1200 meters, VISCA/Pelco-D/Pelco-P protocol
Power Interface	JEITA RC-5320A Type 4
Others
Input voltage	DC 12V
Input Current	Maximum 0.8A
Power consumption	Maximum 10W
Operating Temperature	0~40℃
Stored Temperature	-10~60℃
Color	Silver
Size	(width) 180* (depth) 180* (height) 175mm
Weight	1.2kg
Accessories	DC12V power adapter, IR remote control, operating instructions, USB3.0 video cable, RS-232 serial cable, bracket
