NFPA 701 Curtain Fabric Film Flame Spread Combustion Tester
Price:
USD3000-3300/set
MOQ:
1 set
Delivery Time:
30 days
Brand:
GOLD
Product Description

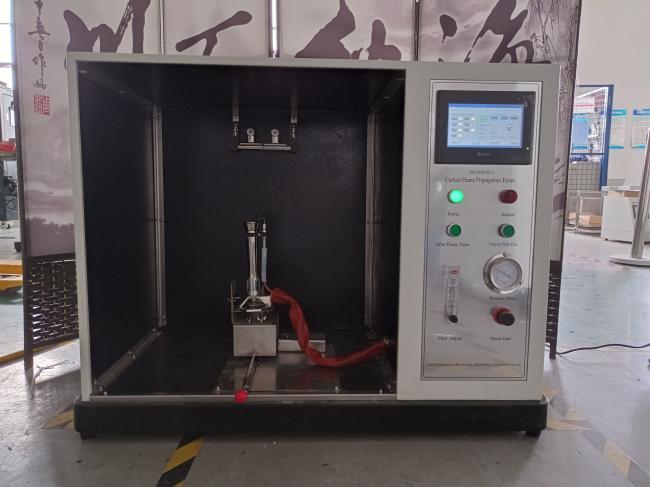

NFPA 701 Curtain Fabric Film Flame Spread Combustion Tester
This equipment is primarily developed and manufactured according to the US NFPA 701 standard and is used to test the flame propagation performance of fabric and film materials. This standard specifies flame retardancy testing methods for window covering materials such as curtains, drapes, and door curtains, as well as similar products such as awnings, tents, tarpaulins, stage curtains, architectural fabric structures, and banners. It is widely used to evaluate the combustion characteristics and safety of decorative and functional textile products in open flame environments.
Testing Standards
NFPA 701: Standard Methods of Fire Tests for Flame Propagation of Textiles and Films
Method 1: Applicable to single-layer or tightly combined multi-layer fabrics (such as curtains, draperies, tablecloths, etc.), requiring a surface area density of ≤700g/m², and testing flame propagation and afterburning time.
Method 1: Applicable to single-layer or tightly combined multi-layer fabrics (such as curtains, draperies, tablecloths, etc.), requiring a surface area density of ≤700g/m², and testing flame propagation and afterburning time.
Technical Specifications
| Warranty | 1 Year |
| Customized support | ODM, OBM |
| Place of Origin | China |
| Brand Name | Gold |
| Model Number | GD-NFPA 701 |
| Power | AC220V 10% |
| Combustion chamber size | 940mm(L) x 505mm(W) x 705mm(H) |
| Weight | about 60 kg |
| Flow meter range | 0~1800cc/min |
Key Features
- Painted casing with a transparent observation window
- Combustion chamber dimensions: 940mm (L) x 505mm (W) x 705mm (H)
- Electronic automatic ignition; imported Meker burner
- Automatic burner timer; automatic timer reminder
- Ignition time can be set arbitrarily from 0 to 99.99 seconds; afterburning time and flame retardant time are automatically recorded and digitally displayed
- Adjustable flame height and can be equipped with a flame temperature measuring device
- "Push-pull" sample holder fixing device
- Burner fixed on a sliding rail for easy operation; needle valve allows for flame height adjustment
- Flow meter range: 0-1800cc/min
- Power supply: 220V, 50Hz, 30W

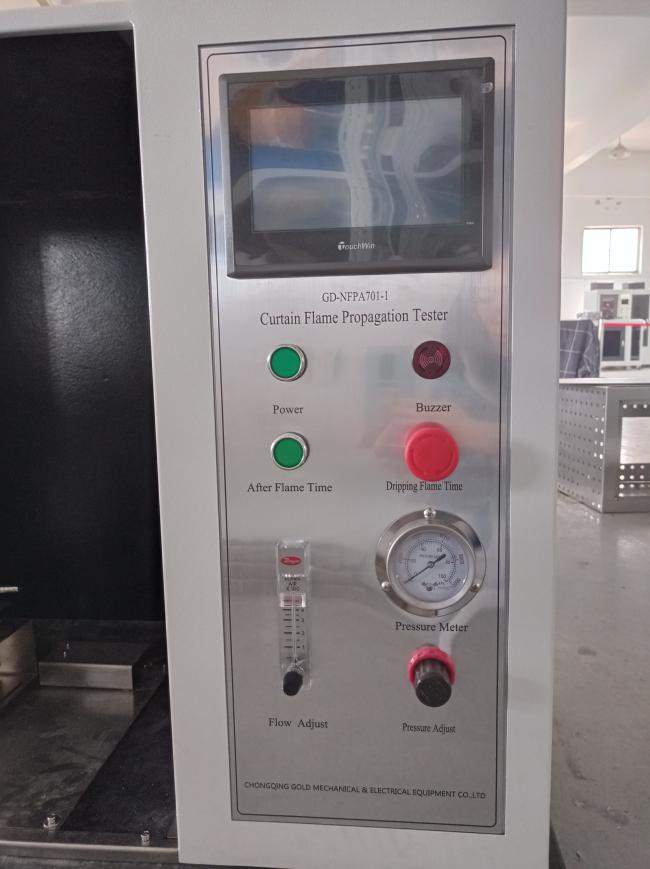

![Curtain Flame Propagation Tester in operation]()
