35mm PM Stepping Motor 35BY412 4 Phase 6 Wire 7.5° High Torque 24V
35mm Permanent Magnet Stepper Motor 35BY412 4 Phase 6 Wire 7.5° High Torque
the stepping motor with a diameter of 35 has a stepping angle of 7.5 degrees. Each part is made of precision molds. Therefore, compared with similar products, this product has the advantages of stable rotation, small positioning torque and high efficiency.
All metal parts such as motor casings are treated by environmentally friendly plating. The appearance is exquisite and can be used in relatively harsh environments.
Technical Features
Precision medical equipment, automatic door locks and other fields
Motor input part icon for the light, but can according to the customer demand can be changed to FPC cable, PCB and other forms
At the same time we can complete the corresponding drive system to meet customer needs!
Our team has more than 10 years experience in the design, development and production of micro motors, so we can develop and design the products according to the special needs of customers!
Customer needs is the direction of our efforts, please feel free to contact!
Typical Applications
- Medical instruments
- Precision instrument
- Robot
- Factory automation
- Game machine
- ATM equipment
- Security equipmentSpecifications
|
Product Name |
35 mm permanent magnet stepper motor |
|
Model |
35BY412L |
|
Rated Voltage |
24V DC |
|
Coil Resistance |
13Ω ± 7%/phase 25℃ |
|
No. Of phase |
4 Phase |
|
Step Angle |
7.5 degree |
|
Current / Phase |
700mA |
|
Pull-in frequency |
700Hz |
|
Pull frequency |
900 Hz |
|
Pull out torque |
40mN.m(200Hz) |
|
Holding torque |
45mN.m |
|
Self-positioning torque |
6mN.m(REF) |
|
Excitation method |
2-2phase |
|
Insulation withstand voltage |
No breakdown or flying fox |
|
Insulation dielectric strength |
Above 100MΩ DC500V |
|
noise |
No abnormal sound |

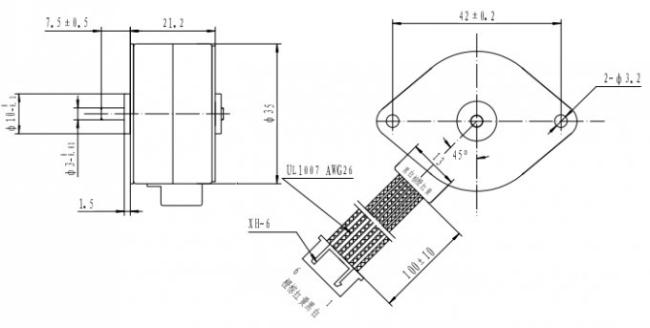

Mechanical Dimension:MM
