2*10m³/H Industrial Reverse Osmosis System With Concentrated Reuse System Export Project For Poland
This project features a 2 * 10 m³/h industrial reverse osmosis (RO) water treatment system, specifically designed for industrial process water supply with an integrated concentrate reuse system, significantly reducing overall water consumption and discharge volume.
The system adopts a Secondary RO configuration, ensuring stable and continuous operation. Each RO unit can operate independently or in parallel, providing operational flexibility and enhanced system reliability. The concentrate reuse system recovers a substantial portion of RO reject water, effectively increasing the total water recovery rate and supporting sustainable water management practices.
Designed and manufactured in compliance with European standards, the system is tailored for export to Poland, considering local water quality conditions, energy efficiency requirements, and long-term operational stability.
Pretreatment process:
- Raw Water
- Raw Water Pressure Pump
- Heat exchange device-Quatz Sand Filter
- Activated Carbon Filter

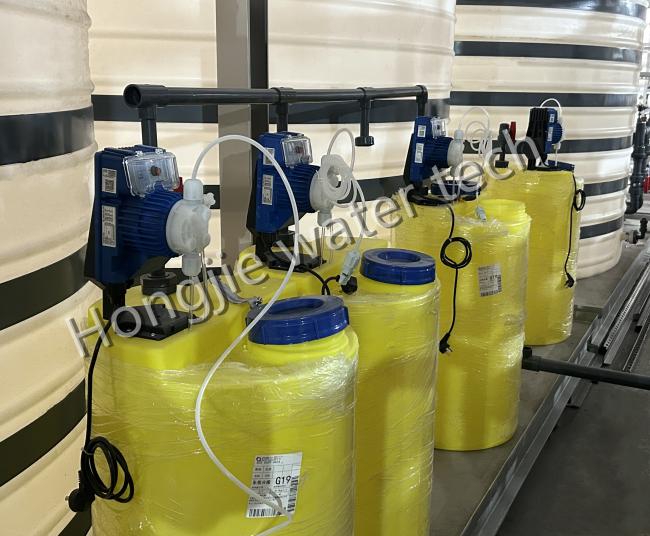

- Reducing agent dosing system
- Scable inhibitor dosing system
Primary Reverse Osmosis process
- Security Filter
- Primary high pressure pump
- Primary Reverse Osmosis Membrane
- Ph adjusting dosing system
Primary concentrated water system
- Secondary RO
- Intermediate Water Tank
- Intermediate Water Pump
- EDI System
- Purified Water Tank
- Pure Water Pump
- UV Sterilizer
- Microporous Filter
- Pasteurization
- Water Point
| Item | Specification |
|---|---|
| Capacity | 2*10T/H |
| Advantage | high recovery rate 90% |
| Electricity Supply | 380V |
| Produced Water Quality | Resistivity ≥15-18.25 MΩ·cm |
| Core Technology | Double-pass Reverse Osmosis + EDI + Polishing Resin |
| Key Components | RO Membrane Modules, EDI Units |
| Operation Mode | Full Automatic (PLC-controlled) |
| After-Sales Service | 2-Year Warranty For Standard Equipment |
- Capacity: 2 * 10 m³/h industrial RO units
- Integrated RO concentrate reuse system to maximize water recovery
- High-efficiency RO membranes for stable permeate quality
- Modular design for easy installation and maintenance
- Automated PLC control for safe and reliable operation
- Reduced freshwater intake and wastewater discharge
