Consolidated Integration Pneumatic Conveying Blower For Steel Mill
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
5-8 work days
Brand:
Frezer
Product Description
Consolidated Integration Pneumatic Conveying Blower for Steel Mill
Product Introduction

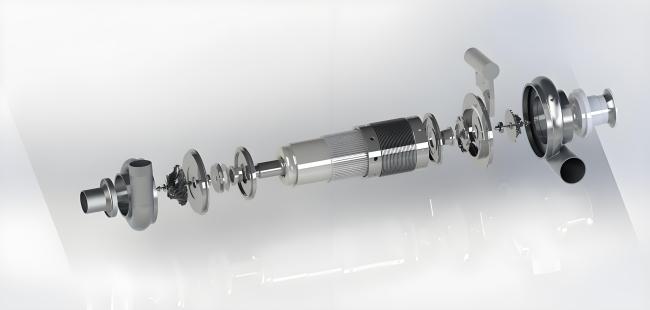

This exploded view shows a precision device combining a high-speed permanent magnet synchronous motor with a fluid power system, clearly displaying core components' structure and collaboration. The Stator and Rotor constitute the motor body. The stator creates a rotating magnetic field to drive the rotor, achieving electrical-to-mechanical energy conversion. Fitted with an Air bearing employing gas lubrication for contactless operation. Paired with Thrust and Radial bearings handling radial loads, it minimizes friction, ensures rotor stability at high speeds, and enables 96%-98% efficiency.
Product Specification
| Details | ST10 | ST20 | ST30 | ST50 | ST75 | ST100 | ST125 | ST150 | ST200 | ST250 | ST300 | ST350 | ST400 | ST500 | ST600 | Cooling Method | |
| Type | SINGLE GRADE | DOUBLE GRADE | |||||||||||||||
| Discharge Pressure(KPA) | Air Flow(M3/MIN):LATM/20℃,65%Relative Humidity, Density=1.2KG/M3/Tolerance | Air Cooling | |||||||||||||||
| 40 | 10 | 18 | |||||||||||||||
| 60 | 7.5 | 15 | 20 | 34 | 51 | 69 | 82 | 105 | 140 | 175 | 210 | 280 | 345 | 420 | |||
| 70 | 13 | 18 | 30 | 45 | 60 | 74 | 90 | 120 | 150 | 180 | 240 | 300 | 360 | ||||
| 80 | 12 | 17 | 28 | 42 | 54 | 70 | 84 | 109 | 135 | 164 | 218 | 270 | 328 | ||||
| 90 | 37 | 50 | 61 | 71 | 92 | 140 | 184 | ||||||||||
| 100 | 34 | 45 | 55 | 67 | 87 | 133 | 230 | 260 | |||||||||
| 150 | 32 | 48 | 60 | 69 | 81 | 121 | 125 | ||||||||||
| 200 | 56 | 65 | 71 | 85 | Water Cooling | ||||||||||||
| 300 | 105 | 79 | |||||||||||||||
| 350 | 20 | 37 | 72 | ||||||||||||||
| 400 | 25 | 65 | |||||||||||||||
| Motor Power(KW) | 7.5 | 15 | 22 | 37 | 55 | 75 | 90 | 110 | 150 | 185 | 220 | 250 | 300 | 375 | 450 | ||
| Discharge Pipe(KW) | 80 | 100 | 150 | 150 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | ||
| Size(MM) | Width | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1200 | 1300 | 1300 | 1300 | 1300 | |
| Length | 1250 | 1250 | 1250 | 1250 | 1620 | 1620 | 1620 | 1620 | 1620 | 1620 | 2200 | 2700 | 2700 | 2700 | 2700 | ||
| Height | 970 | 970 | 970 | 970 | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 | 1916 | 2115 | 2115 | 2115 | 2115 | ||
| Weight | 680 | 680 | 680 | 750 | 800 | 960 | 960 | 1050 | 1050 | 1100 | 1320 | 1580 | 1580 | 1800 | 1800 | ||
Product Show
Transaction Process
- Get requirements to match products
- Compare with the Roots blower
- Quotation
- Receive payment
- Production
- Packing in wooden cases
- Delivery
- Feedback
Delivery
We can delivery the products by any methods as your wish.
Our Service
- Professional Team
- Reliable Technology
- 24 Hours Service
FAQ
Q1: What factors will you need to match the products?
Pressure & Flow Volume
Q2: What is the production time?
Normally one week after receiving your payment.
Q3: What is your minimum order quantity?
MOQ 1 set.
Q4: Are you a manufacturer?
Yes.
Q5: Which delivery methods can you support?
By air, sea, land, rail, express like DHL, UPS, FEDEX.
