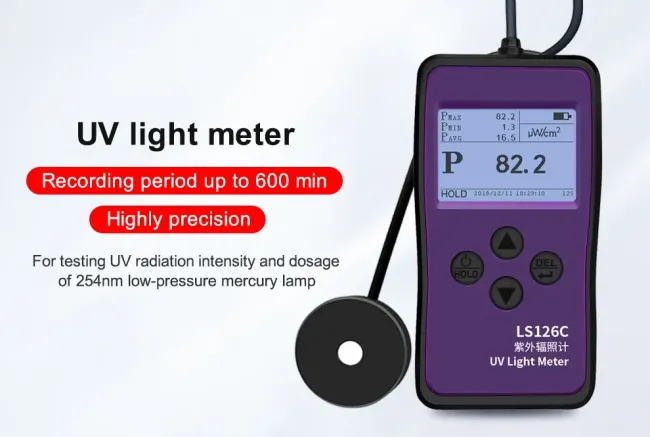

Ls126c UVC Light Meter 254nm UV 254 Radiometer Intensity Tester UV Intensity Meter
Dedicated for UVC 254nm germicidal lamp Real-time Monitoring on Mobile App
LS126C uvc meter 254 is a professional instrument used to measure the intensity of UVC germicidal lamps.LS126C uvc tester meter also has a Bluetooth data transmission function, connected with the WeChat mini program can be outside the certain distance real-time monitoring of germicidal lamps intensity, to avoid testers burned by UV rays. The uv 254 radiometer has been widely used in hospitals, CDC, pharmaceutical companies, FDA, environmental monitoring stations and other fields to measure the intensity of 253.7nm UVC germicidal lamps. The uvc meter can record 25 sets of data, and comes with PC software to support data exportation.

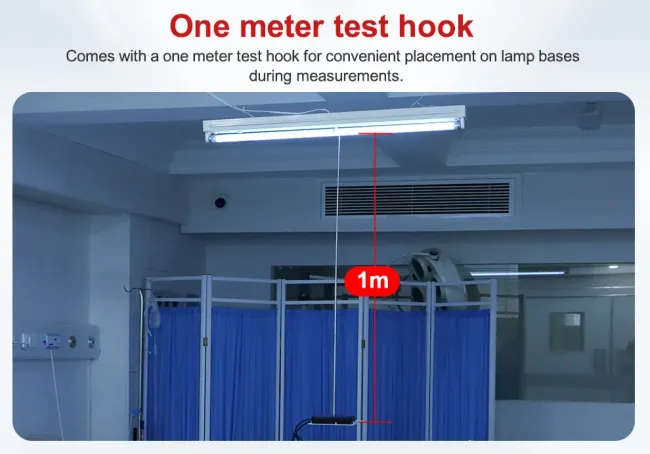

1. Comes with a one-meter test hook for convenient placement on lamp bases during measurements.
2. With Bluetooth function, it can monitor the data in certain distance through APP to avoid being burned by UV rays.

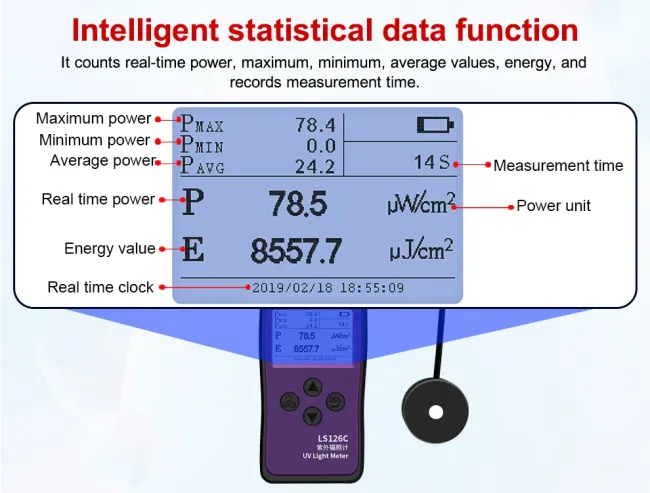

3. The ultraviolet light meter counts real-time power, maximum, minimum, average values, energy, and records measurement time.

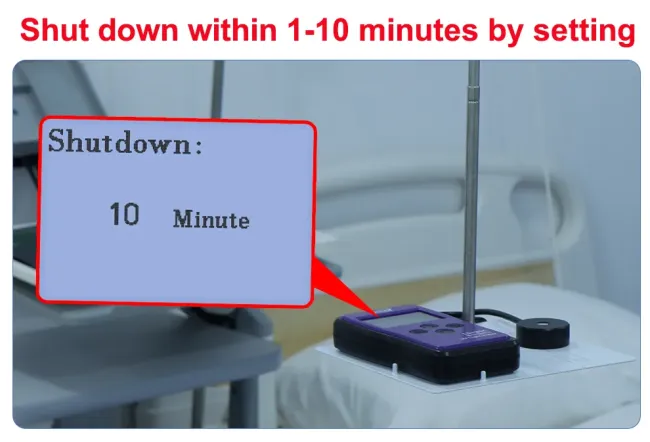

4. Automatic shutdown can be set, no need to keep watch over the measurement.

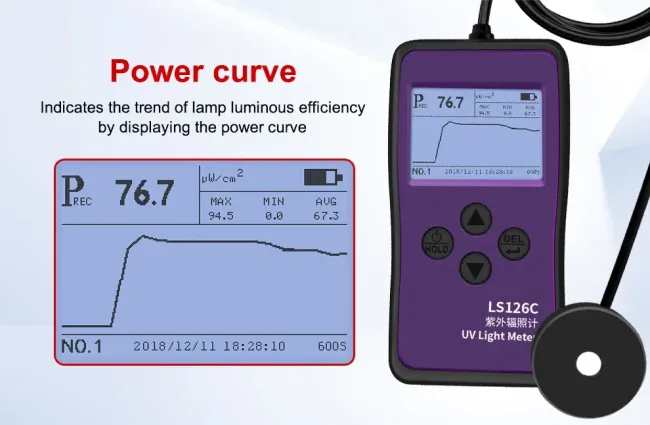

5. Indicates the trend of lamp luminous efficiency by displaying the power curve.

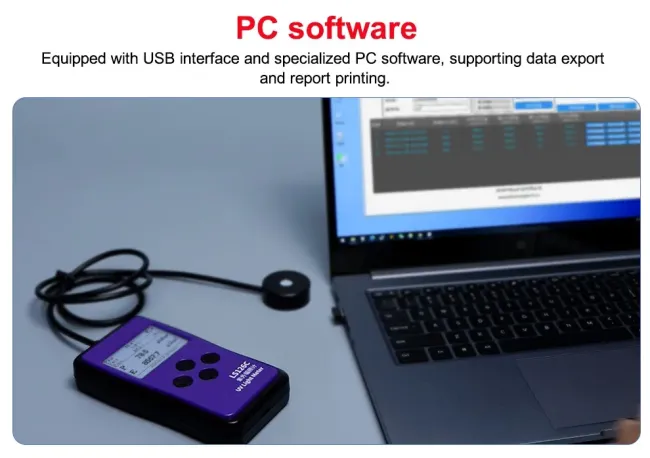

6. Equipped with USB interface and specialized PC software, supporting data export and report printing.
7. Can be certified by CNAS, ILAC-MAR accredited metrological institutions.
|
Parameter
|
Value
|
|
Spectral response
|
230nm-280nm, λp = 254nm
|
|
Measuring range
|
0 - 20000 μW / cm²
|
|
Resolution
|
0.1μW / cm²
|
|
Relative indication error
|
±8%(relative to NIM standard)
|
|
Cosine characteristics (directional response) error
|
10%
|
|
Linearity error
|
±1%
|
|
Short-term instability
|
±1%( 30min after startup)
|
|
Fatigue characteristics
|
attenuation
|
|
Error of zero
|
±0.1% of full scale
|
|
Response time
|
<0.5
|
|
Sampling speed
|
2048 times/second
|
|
Test hole diameter
|
Ø=10mm
|
|
Power value storage interval
|
1s/10s/60s optional
|
| Automatic shutdown time | 1-10 min |
|
Recording period
|
10 min / 100 min / 600 min
|
|
Bluetooth transmission distance
|
50 meters (open space)
|
|
Instrument size
|
148mm ×76mm ×26mm (L*W*H)
|
|
Probe size
|
Diameter 39mm × thickness 15mm
|
|
Probe wire length
|
1 meter
|
|
Weight
|
About 300 g
|
|
Display
|
240*160 dot matrix LCD
|
|
Battery
|
4 AAA alkaline dry batteries
|
|
Operating Temperature
|
0° to 40°C, <85%
|
