SGS High Frequency Induction Melting Furnace 60KW Induction Brazing Machine
SGS Approved Ultrahigh Frequency 60KW Induction Heating Equipment For Smelting
Quick Detail:
|
Name |
SGS Approved Ultrahigh Frequency Induction Heating Equipment For Smelting |
Application |
Hot forging, hot fitting, smelting, surface quench, welding, annealing |
|
Work power |
360V-520V |
Out power |
60KW |
|
Product size |
main: 640*350*550mm transformer: 510*300*450mm |
Certificate |
CE , SGS , ROHS |
Specification
|
Model |
JR-60AB (Three phase) |
|
Work power |
360V-520V |
|
Maximum input current |
90A |
|
Output power |
60KW |
|
Fluctuating frequency |
50-150KHZ |
|
The flow rate of cooling water |
0.2Mpa, 6L/min |
|
Water temperature protection point |
50C |
|
Product size |
main: 640×350×550 mm transformer:510*300*450mm |
|
Net weight |
main: 50kgs transformer: 28kgs |

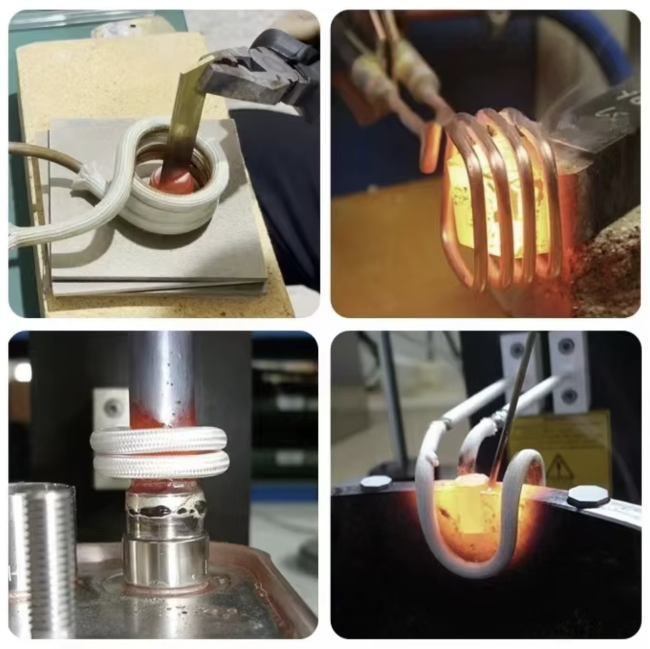

diathermy forging.
head, excavator teeth welding.
rotor and motor shell.
such as induction hardening of shaft, gear and disc parts.

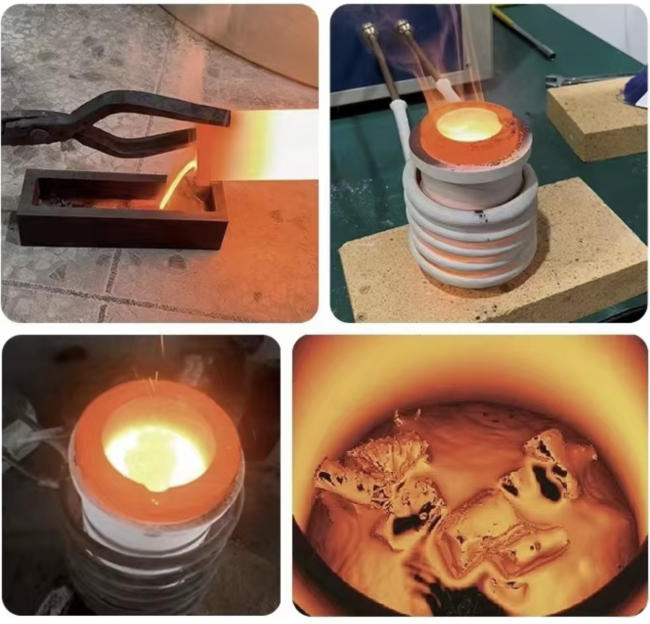

Smelting Suitable for steel, stainless steel, iron, copper, brass, gold, silver, aluminum, aluminum alloy and other non-ferrous metals
and precious metals heating smelting.
Annealing Suitable for weld annealing after welding pipe, wire, pipe, sheet bright annealing stainless steel ware after tensile
annealing.
