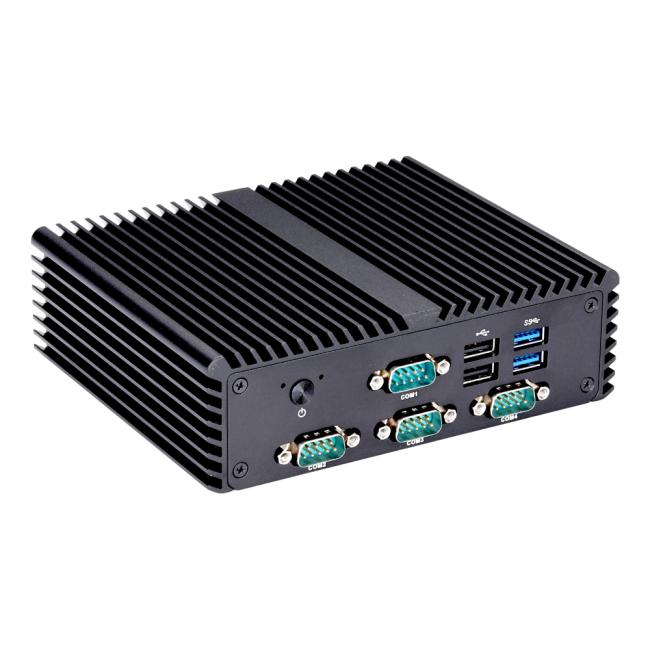

Intel N4000 Industrial Rugged Mini Pc 4 X RS232 Dual LAN HDMI & DP 4K Display
| Description | |
| CPU | Intel Celeron N4000, Gemini Lake, 2 Cores, 2 Threads, 1.1GHz (Turbo up to 2.6GHz), 4M Cache, Intel UHD Graphics 600 |
| CPU TDP | By CPU |
| Memory | 1 x DDR4 SO-DIMM Socket (Up to 16G) Only Supports a Single 1G Memory Chip |
| Storage | 1 x 2.5-inch HDD/SSD, 1 x Mini PCIe for mSATA SSD |
| Chipset | By CPU |
| Graphics | Intel UHD Graphics 600 |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |
| Lan Chipset | 2 x Realtek Gigabit LAN |
| Expansion | 1 x Full Length Mini PCIe for SSD |
| 1 x Mini PCIe, Full-length for 4G, Half-length for Wi-Fi | |
| GPIO | Yes |
| RS-485 | 0 |
| AutoStart Jumper | Yes |
| Front I/O | |
| Power Button | 1 |
| Serial Port | 4 x RS-232(COM3/4 can be set up as RS-485) -Pin 9 Factory Setting Supports 5V/12V) |
| LED | 1 x Power LED, 1 x HDD LED |
| USB | 2 x USB 3.0, 2 x USB 2.0 |
| Rear I/O | |
| Power | 1 x DC Jack |
| Video Output | 1 x HDMI, 1 x Display Port |
| USB | 2 x USB 3.0 |
| Audio | 1 x Mic-in, 1 x Line-out |
| LAN | 2 x Realtek Gigabit LAN |
| Other | |
| Material | Aluminum Alloy |
| Dimension | 155 x 127 x 48mm |
| Weight | 0.85kg |
| Packaging Dimension | 261 x 218 x 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| Mounting | VESA Mounting Bracket |
| OS Support | |
| OS | win dows 10, Linux |
| Environmental | |
| Operting Temp | 0℃~50℃ |
| Non-Operating Temp | -20℃~80℃ |
| Humidity | 10%~90% |
| Packlist | |
| Packing List | 1 x Mini PC,1 x Power supply,1 x Power cord,1 x VESA |
J4105: Intel Celeron J4105, Gemini Lake, 4 Cores, 4 Threads, 1.5GHz (Turbo up to 2.5GHz), 4M Cache, TDP 10W, Intel UHD Graphics 600.
J4125: Intel Celeron J4125, Gemini Lake Refresh, 4 Cores, 4 Threads, 2.0GHz (Turbo up to 2.7GHz), 4M Cache, TDP 10W, Intel UHD Graphics 600.
N4000: Intel Celeron N4000, Gemini Lake, 2 Cores, 2 Threads, 1.1GHz (Turbo up to 2.6GHz), 4M Cache, TDP 6W, Intel UHD Graphics 600.
-
Ultra-Low Power Consumption: Powered by the Intel Celeron N4000 (TDP only 6W), this mini PC offers exceptional energy efficiency, reducing operational costs and heat generation for long-term deployments.
-
Massive Serial Connectivity: Equipped with 4 x RS-232 ports, it is the perfect hub for connecting multiple legacy industrial devices, sensors, and controllers simultaneously.
-
Dual Network Redundancy: Featuring 2 x Realtek Gigabit LAN ports, it provides reliable network failover or the ability to manage separate internal and external network traffic for enhanced security.
-
Dual 4K Display Output: Includes both HDMI and Display Port (DP), allowing for high-definition dual-monitor setups—ideal for industrial monitoring and digital signage.
-
Silent Fanless Reliability: The rugged, fanless aluminum chassis ensures 100% silent operation and prevents dust intake, guaranteeing 24/7 stability in harsh or noise-sensitive environments.
-
High-Speed Peripheral Support: With 4 x USB 3.0 and 2 x USB 2.0 ports, the Mi4000C4 ensures fast data transfer and broad compatibility with modern industrial peripherals.
-
Broad OS Support: Fully optimized for win dows 10 and various Linux distributions, offering a flexible and stable platform for system integrators.
