Aging Resistance Floating Dredge Hose Weatherproof Self Floating Rubber Hose
Hongruntong Marine Floating Dredge Hose is a heavy-duty, self-floating rubber hose specially engineered for dredging, sand excavation, sludge transportation, and marine water discharge applications.
Built with high-strength steel wire reinforcement and premium rubber compounds, our floating dredge hose delivers exceptional buoyancy, high pressure resistance, superior wear resistance, and excellent flexibility. It performs reliably in demanding marine, offshore, and river environments, efficiently conveying seawater, silt, sand, and slurry over extended distances.
With over 30 years of manufacturing expertise, we maintain strict quality control throughout every production stage to ensure consistent performance, reliable sealing, and extended service life. Our floating dredge hoses are widely utilized in port construction, river dredging, land reclamation, and offshore engineering projects, earning global customer recognition.


| Material | PTFE, Galvanized Steel Wire, PVC Coated Polyester Cloth |
| Product Name | Floating Dredge Hose |
| Inner Wire | Stainless Steel 316 |
| Lining | Polyamide |
| Carcass | Polyamide fabrics, Polyester films |
| Outer Wire | Stainless Steel 316 |
| Working Pressure | 10 bar to 21 bar |
| Maximum Length | 40 meters |
| Sample | Available |
| Delivery Time | Normally 3-5 days |
| Model | Dimensions (mm) | Dimensions (inch) | Working Pressure (bar) | Working Pressure (psi) | Safety Factor | Bending Radius (mm) | Weight (kg) | Length (m) |
|---|---|---|---|---|---|---|---|---|
| HM-FDH20 | 20 | 3/4" | 16 | 230 | 6:1 | 80 | 0.8 | 40 |
| HM-FDH25 | 25 | 1" | 16 | 230 | 6:1 | 100 | 1 | 40 |
| HM-FDH32 | 32 | 11/4" | 16 | 230 | 6:1 | 125 | 1.3 | 40 |
| HM-FDH40 | 40 | 11/2" | 16 | 230 | 6:1 | 140 | 1.5 | 40 |
| HM-FDH50 | 50 | 2" | 16 | 230 | 6:1 | 180 | 2.5 | 40 |
| HM-FDH65 | 65 | 21/2" | 16 | 230 | 6:1 | 200 | 3.3 | 40 |
| HM-FDH80 | 80 | 3" | 16 | 230 | 6:1 | 260 | 4 | 40 |
| HM-FDH100 | 100 | 4" | 16 | 230 | 6:1 | 380 | 6.8 | 40 |
| HM-FDH125 | 125 | 5" | 16 | 230 | 6:1 | 440 | 9.2 | 40 |
| HM-FDH150 | 150 | 6" | 16 | 230 | 6:1 | 500 | 13.2 | 40 |
| HM-FDH200 | 200 | 8" | 16 | 230 | 6:1 | 750 | 18 | 40 |
| HM-FDH250 | 250 | 10" | 16 | 230 | 6:1 | 900 | 26 | 25 |
*Note: Various sizes can be customized according to project requirements.
- 30+ Years of Professional Manufacturing Experience - Rich technical expertise and mature production technology ensure reliable performance and consistent quality across all production batches.
- Excellent Self-Buoyancy & Stable Structure - High-quality closed-cell buoyancy materials and high-strength steel wire helix reinforcement provide superior buoyancy, flexibility, bending performance, and structural stability in wave and current conditions.
- Outstanding Wear & Pressure Resistance - High-grade wear-resistant rubber compound delivers strong anti-aging, anti-corrosion, and wear-resistant properties, withstanding high working pressures and heavy medium impact in harsh operating environments.
- Strict Quality Control & Global Applications - Each product undergoes rigorous pressure testing, leakage testing, and appearance inspection. Meets international industry standards with reliable sealing and easy installation, widely used in global dredging projects.

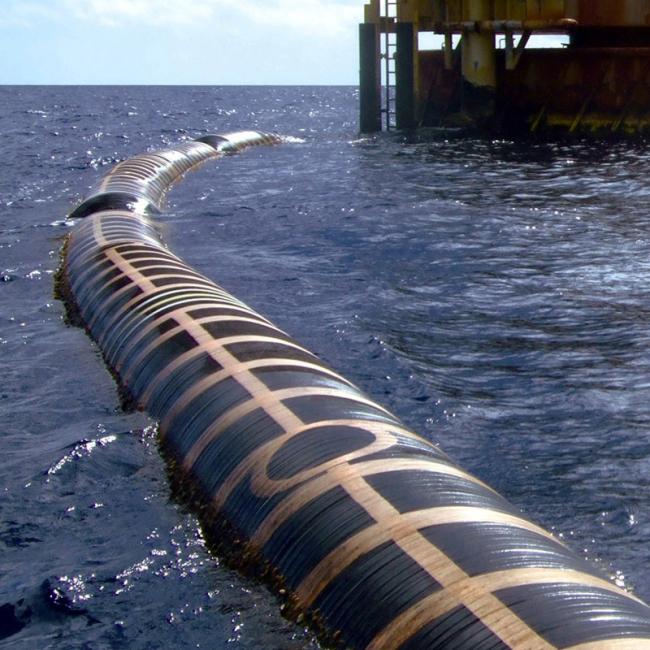

- Offshore Dredging & Land Reclamation - Transport sand, mud, and gravel from dredging vessels to reclamation areas in large-scale land reclamation, port expansion, and island construction projects. Maintains stable floating on sea surface with wind and wave resistance.
- Port & Waterway Dredging - Efficiently discharges silt, sediment, and sludge from port bottoms, rivers, and lakes for channel deepening and fairway maintenance. Ensures smooth navigation for large vessels and supports terminal operations.
- River & Lake Regulation - Used for suction and discharge of mud, sand, and sewage in river training, lake desilting, and flood control projects. Excellent bending performance enables flexible operation in narrow or curved water areas.
- Excellent Self-Buoyancy Performance - High-density closed-cell buoyancy material ensures stable floating on water surface, unaffected by wind, waves, and tides for continuous conveying stability.
- High Strength & Pressure Resistance - Multi-layer high-strength steel wire and high-tensile fabric reinforcement provides strong pressure resistance, anti-twisting performance, and extended service life in demanding conditions.
- Superior Wear & Corrosion Resistance - High-grade wear-resistant rubber inner tube withstands long-term sand and gravel scouring, effectively resisting aging, seawater corrosion, and heavy-duty wear.
- High Flexibility & Easy Installation - Excellent bending performance and strong adaptability to complex water environments. Easy connection, installation, and maintenance significantly improve construction efficiency.
Our floating dredge hose features high-strength steel wire reinforcement, supporting pressure levels from 0.5MPa to 2.5MPa to accommodate various dredging and offshore working conditions.
It incorporates high wear-resistant rubber for the inner layer, high-strength cord and steel wire for reinforcement, closed-cell buoyancy foam for floating, and weather-resistant rubber for the outer layer, ensuring durability and operational stability.
Yes. We provide comprehensive customization options including diameter, length, flange type, pressure rating, and connection mode tailored to your specific project requirements.
It is widely used in port dredging, land reclamation, river and lake desilting, offshore sand extraction, and long-distance slurry transportation under challenging marine environments.
With premium rubber materials and strict production quality control, our hose delivers exceptional wear, aging, and corrosion resistance, providing significantly longer service life than standard hoses in heavy-duty dredging applications.
